CPU2006 license: | 9046 | Test date: | Jan-2014 |
---|---|---|---|
Test sponsor: | Sugon | Hardware Availability: | Jan-2014 |
Tested by: | Sugon | Software Availability: | Jan-2014 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2695 v2 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
CPU MHz: | 2400 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 30 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 256 GB (16 x 16 GB 2Rx4 PC3-14900R-13, ECC) |
Disk Subsystem: | 1 X 2 TB SATA 7200 RPM, RAID 0 |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.4 (Santiago) 2.6.32-358.el6.x86_64 |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

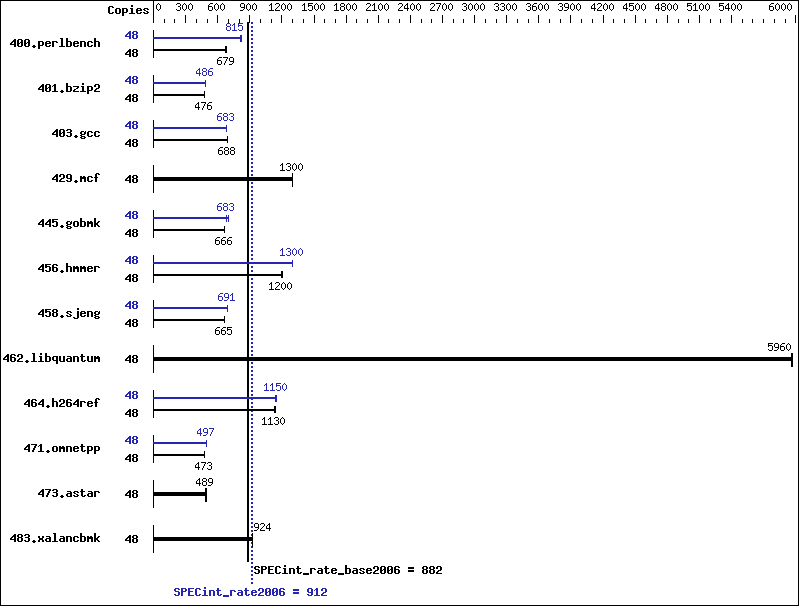

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 48 | 690 | 680 | 690 | 679 | 693 | 677 | 48 | 570 | 822 | 579 | 811 | 576 | 815 |
401.bzip2 | 48 | 978 | 474 | 973 | 476 | 967 | 479 | 48 | 952 | 487 | 953 | 486 | 955 | 485 |
403.gcc | 48 | 561 | 689 | 562 | 688 | 562 | 687 | 48 | 567 | 681 | 566 | 683 | 566 | 683 |
429.mcf | 48 | 336 | 1300 | 336 | 1300 | 337 | 1300 | 48 | 336 | 1300 | 336 | 1300 | 337 | 1300 |
445.gobmk | 48 | 756 | 666 | 756 | 666 | 758 | 665 | 48 | 738 | 683 | 740 | 680 | 719 | 700 |
456.hmmer | 48 | 373 | 1200 | 372 | 1210 | 373 | 1200 | 48 | 345 | 1300 | 345 | 1300 | 345 | 1300 |
458.sjeng | 48 | 874 | 664 | 873 | 665 | 873 | 665 | 48 | 843 | 689 | 841 | 691 | 841 | 691 |
462.libquantum | 48 | 167 | 5970 | 167 | 5960 | 167 | 5960 | 48 | 167 | 5970 | 167 | 5960 | 167 | 5960 |
464.h264ref | 48 | 936 | 1140 | 937 | 1130 | 939 | 1130 | 48 | 921 | 1150 | 931 | 1140 | 927 | 1150 |
471.omnetpp | 48 | 634 | 473 | 634 | 473 | 630 | 476 | 48 | 603 | 497 | 604 | 497 | 601 | 500 |
473.astar | 48 | 689 | 489 | 687 | 491 | 688 | 489 | 48 | 689 | 489 | 687 | 491 | 688 | 489 |
483.xalancbmk | 48 | 359 | 924 | 359 | 924 | 357 | 926 | 48 | 359 | 924 | 359 | 924 | 357 | 926 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS Configuration: Intel Virtualization technology set to disabled Power Technology set to performance Turbo boost set to enabled DDR Speed set to force 1866 Sysinfo program /home/cpu2006/config/sysinfo.rev6874 $Rev: 6874 $ $Date:: 2013-11-20 #$ 654bd3fcf53b06faef0efe54ed011998 running on cpu2006 Sun Jan 5 18:13:57 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2695 v2 @ 2.40GHz 2 "physical id"s (chips) 48 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 12 siblings : 24 physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 cache size : 30720 KB From /proc/meminfo MemTotal: 264500596 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.4 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux cpu2006 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jan 5 18:10 SPEC is set to: /home/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_cpu2006-lv_home ext4 1.8T 84G 1.6T 5% /home Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS American Megatrends Inc. V8.100A 10/31/2013 Memory: 16x Hynix Semiconductor HMT42GR7AFR4C-RD 16 GB 1 rank 1866 MHz (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64:/home/cpu2006/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
429.mcf: | basepeak = yes |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
