SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Cisco Systems

Cisco UCS B200 M3 (Intel Xeon E5-2609 v2, 2.50
GHz)

CPU2006 license: 9019 Test date: Dec-2013
Test sponsor: Cisco Systems Hardware Availability: Dec-2013
Tested by: Cisco Systems Software Availability: Sep-2013

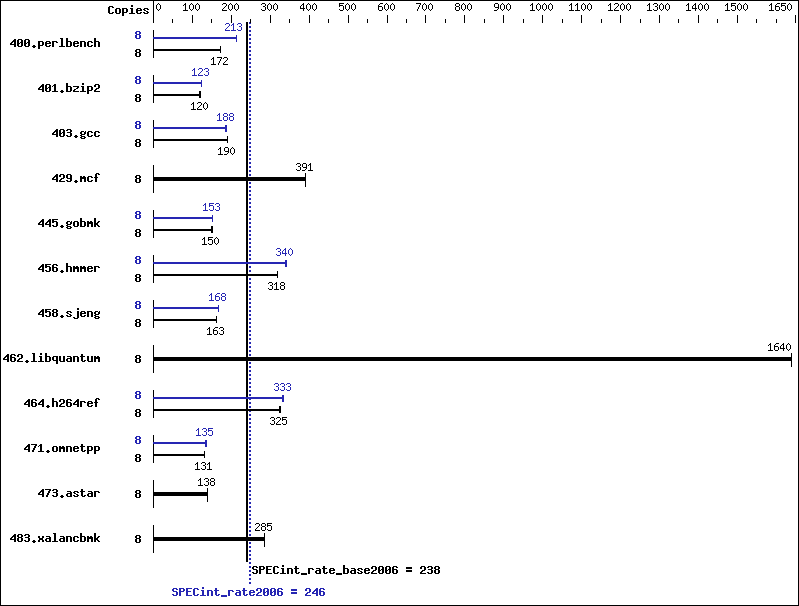

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2609 v2
CPU Characteristics:
CPU MHz: 2500
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 10 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB 2Rx4 PC3-14900R-13, ECC,
running at 1333 MHz and CL7)
Disk Subsystem: 1 X 300 GB 15000 RPM SAS
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.4
(Santiago)
2.6.32-358.el6.x86_64
Compiler: C/C++: Version 14.0.0.080 of Intel C++ Studio XE
for Linux
Auto Parallel: No
File System: ext4
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 455 172 455 172 455 172 8 366 213 367 213 367 213
401.bzip2 8 646 119 646 120 645 120 8 628 123 628 123 627 123
403.gcc 8 339 190 340 190 340 189 8 342 188 342 188 349 185
429.mcf 8 187 391 187 391 187 390 8 187 391 187 391 187 390
445.gobmk 8 558 150 559 150 558 150 8 550 153 550 153 551 152
456.hmmer 8 235 318 235 318 235 317 8 220 339 219 341 219 340
458.sjeng 8 596 163 595 163 596 163 8 576 168 576 168 576 168
462.libquantum 8 101 1640 101 1640 101 1640 8 101 1640 101 1640 101 1640
464.h264ref 8 544 325 546 325 545 325 8 532 333 531 333 534 332
471.omnetpp 8 380 131 381 131 380 132 8 370 135 371 135 372 135
473.astar 8 405 139 406 138 406 138 8 405 139 406 138 406 138
483.xalancbmk 8 194 285 194 284 194 285 8 194 285 194 284 194 285

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

BIOS Settings:
Intel HT Technology =
CPU performance set to HPC
Power Technology set to Custom
CPU Power State C6 set to Enabled
CPU Power State C1 Enhanced set to Disabled
Energy Performance policy set to Performance
Memory RAS configuration set to Maximum Performance
DRAM Clock Throttling Set to Performance
LV DDR Mode set to Performance-mode
DRAM Refresh Rate Set to 1x
 Sysinfo program /opt/cpu2006-1.2/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191
 running on B200M3-IVB Wed Dec  4 19:39:01 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2609 v2 @ 2.50GHz
       2 "physical id"s (chips)
       8 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 4
       siblings  : 4
       physical 0: cores 0 1 2 3
       physical 1: cores 0 1 2 3
    cache size : 10240 KB

 From /proc/meminfo
    MemTotal:       264464784 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.4 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux B200M3-IVB 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41 EST 2013
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Dec 4 19:35

 SPEC is set to: /opt/cpu2006-1.2
    Filesystem    Type    Size  Used Avail Use% Mounted on
    /dev/sda1     ext4    275G   52G  210G  20% /

 Additional information from dmidecode:
   BIOS Cisco Systems, Inc. B200M3.2.1.3a.0.082320131800 08/23/2013
   Memory:
    16x 0xAD00 HMT42GR7AFR4C-RD 16 GB 1333 MHz 2 rank
    8x NO DIMM NO DIMM

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/opt/cpu2006-1.2/libs/32:/opt/cpu2006-1.2/libs/64:/opt/cpu2006-1.2/sh"

 Binaries compiled on a system with 1x Core i7-860 CPU + 8GB
 memory using RedHat EL 6.4
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m32

C++ benchmarks:

 icpc -m32

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -opt-mem-layout-trans=3

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -opt-mem-layout-trans=3   -Wl,-z,muldefs   -L/sh -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32
400.perlbench:  icc -m64
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64

C++ benchmarks:

 icpc -m32

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -auto-ilp32
401.bzip2:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32   -ansi-alias
403.gcc:  -xSSE4.2   -ipo   -O3   -no-prec-div
429.mcf:  basepeak = yes
445.gobmk:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -prof-use(pass 2)   -ansi-alias   -opt-mem-layout-trans=3
456.hmmer:  -xSSE4.2   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32
458.sjeng:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -auto-ilp32
462.libquantum:  basepeak = yes
464.h264ref:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/sh -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.html,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2.20130717.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.xml,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2.20130717.xml.
