SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision T3610 (Intel Xeon E5-1650 v2, 3.50
GHz)

CPU2006 license: 55 Test date: Nov-2013
Test sponsor: Dell Inc. Hardware Availability: Sep-2013
Tested by: Dell Inc. Software Availability: Aug-2011

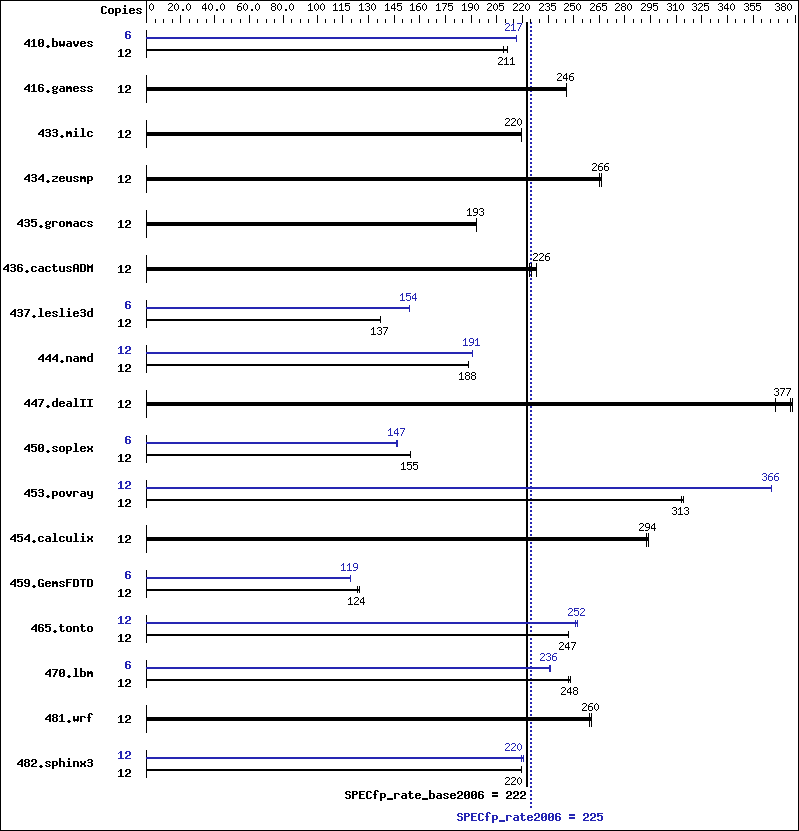

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-1650 v2
CPU Characteristics: Intel Turbo Boost Technology up to 3.90 GHz
CPU MHz: 3500
FPU: Integrated
CPU(s) enabled: 6 cores, 1 chip, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8 x 4 GB 1Rx8 PC3-14900R-13, ECC)
Disk Subsystem: 1 x 500 GB SATA III 7200 RPM
Other Hardware: None
Software
Operating System: Windows 7 Professional (64-bit) SP1
Compiler: C/C++: Version 12.1.0.233 of Intel C++ Studio XE
for Windows
Fortran: Version 12.1.0.233 of Intel Visual
Fortran Compiler for Intel64
C/C++: Version 2010 of Microsoft Visual Studio
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 12 782 209 774 211 773 211 6 376 217 377 217 376 217
416.gamess 12 954 246 955 246 954 246 12 954 246 955 246 954 246
433.milc 12 502 220 502 220 503 220 12 502 220 502 220 503 220
434.zeusmp 12 411 265 410 266 410 266 12 411 265 410 266 410 266
435.gromacs 12 443 193 443 193 443 193 12 443 193 443 193 443 193
436.cactusADM 12 640 224 636 226 630 228 12 640 224 636 226 630 228
437.leslie3d 12 823 137 823 137 824 137 6 365 154 365 154 365 154
444.namd 12 510 188 510 188 510 188 12 505 191 504 191 505 191
447.dealII 12 373 368 365 377 363 378 12 373 368 365 377 363 378
450.soplex 12 649 155 648 155 647 155 6 341 147 341 147 342 146
453.povray 12 204 313 203 314 204 313 12 175 366 174 366 175 366
454.calculix 12 339 293 337 294 337 294 12 339 293 337 294 337 294
459.GemsFDTD 12 1028 124 1028 124 1023 125 6 533 119 532 119 533 119
465.tonto 12 479 247 479 247 478 247 12 469 252 470 251 468 252
470.lbm 12 665 248 666 247 665 248 6 349 236 349 236 349 236
481.wrf 12 516 260 517 259 515 260 12 516 260 517 259 515 260
482.sphinx3 12 1067 220 1065 220 1067 220 12 1061 221 1064 220 1063 220

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 Set power configuration to High Performance and disabled monitor blanking and sleep timer

Platform Notes

 Sysinfo program c:\cpu2006.v1.2/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on T3610-GLDN-PC Wed Nov 20 10:55:07 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Professional
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: Dell Inc.
 System Model  : Precision T3610
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 62 Stepping 4 GenuineIntel ~3501 Mhz
 BIOS Version  : Dell Inc. A03, 9/5/2013
 Total Physical Memory: 32,712 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 1536
 L3CacheSize   : 12288
 MaxClockSpeed : 3501
 Name          : Intel(R) Xeon(R) CPU E5-1650 v2 @ 3.50GHz
 NumberOfCores : 6
 NumberOfLogicalProcessors: 12

 (End of data from sysinfo program)

General Notes

 Binaries were compiled on a Precision T1600 system with a single Xeon E3-1200 CPU and 16GB memory using Windows 7 Professional 64-bit

Base Compiler Invocation

C benchmarks:

 icl   -Qvc10   -Qstd=c99

C++ benchmarks:

 icl   -Qvc10

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc10   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   -names:lowercase
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -names:lowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_NEED_INVHYP   -DNEED_INVHYP
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -names:lowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qauto-ilp32   /F512000000

C++ benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qcxx-features   -Qauto-ilp32   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qansi-alias   /F1000000000

Benchmarks using both Fortran and C:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qauto-ilp32   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc10   -Qstd=c99

C++ benchmarks:

 icl   -Qvc10

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc10   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -QxAVX   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qauto-ilp32   /F512000000
482.sphinx3:  -QxAVX   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qauto-ilp32   /F512000000

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
447.dealII:  basepeak = yes
450.soplex:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qauto-ilp32   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxAVX   -Qipo   -O3   -Qprec-div-   -Qansi-alias   /F1000000000
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  Same as 410.bwaves
459.GemsFDTD:  Same as 410.bwaves
465.tonto:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Dell-ic12.1-Windows.html,
http://www.spec.org/cpu2006/flags/Dell-platform-Precision.20131217.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Dell-ic12.1-Windows.xml,
http://www.spec.org/cpu2006/flags/Dell-platform-Precision.20131217.xml.
