| CPU2006 license: | 13 | Test date: | Aug-2013 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Sep-2013 |
| Tested by: | Intel Corporation | Software Availability: | Apr-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i7-4960X |
| CPU Characteristics: | Intel Turbo Boost Technology up to 4.00 GHz |
| CPU MHz: | 3600 |
| FPU: | Integrated |
| CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB 2Rx4 PC3-12800U-11) |
| Disk Subsystem: | 1 TB Seagate SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 8 Pro 6.2.9200 N/A Build 9200 |
| Compiler: | C/C++: Version 13.1.1.171 of Intel C++ Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 10.0 from http://www.microquill.com/ |

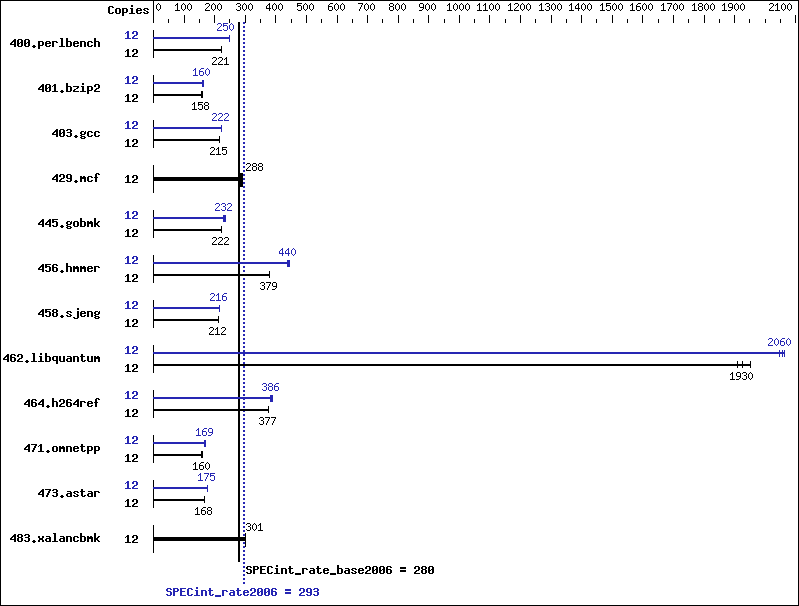

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 12 | 531 | 221 | 530 | 221 | 530 | 221 | 12 | 471 | 250 | 470 | 250 | 469 | 250 |
| 401.bzip2 | 12 | 731 | 158 | 726 | 160 | 731 | 158 | 12 | 724 | 160 | 704 | 164 | 723 | 160 |
| 403.gcc | 12 | 450 | 215 | 451 | 215 | 447 | 216 | 12 | 435 | 222 | 433 | 223 | 437 | 221 |
| 429.mcf | 12 | 380 | 288 | 385 | 284 | 377 | 290 | 12 | 380 | 288 | 385 | 284 | 377 | 290 |
| 445.gobmk | 12 | 567 | 222 | 567 | 222 | 568 | 222 | 12 | 546 | 230 | 543 | 232 | 535 | 235 |
| 456.hmmer | 12 | 296 | 378 | 295 | 379 | 295 | 379 | 12 | 252 | 445 | 256 | 438 | 255 | 440 |
| 458.sjeng | 12 | 686 | 211 | 684 | 212 | 685 | 212 | 12 | 673 | 216 | 673 | 216 | 670 | 217 |
| 462.libquantum | 12 | 130 | 1910 | 127 | 1950 | 129 | 1930 | 12 | 121 | 2060 | 122 | 2050 | 121 | 2060 |
| 464.h264ref | 12 | 706 | 377 | 704 | 377 | 706 | 377 | 12 | 686 | 388 | 687 | 386 | 691 | 384 |
| 471.omnetpp | 12 | 469 | 160 | 471 | 160 | 475 | 157 | 12 | 447 | 168 | 441 | 170 | 442 | 169 |
| 473.astar | 12 | 502 | 168 | 500 | 168 | 503 | 168 | 12 | 482 | 175 | 482 | 175 | 480 | 175 |
| 483.xalancbmk | 12 | 276 | 300 | 274 | 302 | 275 | 301 | 12 | 276 | 300 | 274 | 302 | 275 | 301 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 13.1 was set up to generate 32-bit binaries with the command: "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Submit Notes
Processes were bound to specific processors using the start command with the /affinity switch. The config file option 'submit' was used to generate the affinity mask for each process.
Platform Notes
Sysinfo program C:\Users\PECA_W~1\Desktop\CPU200~1.APR/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on Clt38607738DA9E Sun Aug 4 00:45:58 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 8 Pro OS Version : 6.2.9200 N/A Build 9200 System Manufacturer: Gigabyte Technology Co., Ltd. System Model : To be filled by O.E.M. Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 62 Stepping 4 GenuineIntel ~3601 Mhz BIOS Version : American Megatrends Inc. F4, 7/1/2013 Total Physical Memory: 16,307 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 256 L3CacheSize : 15360 MaxClockSpeed : 3601 Name : Intel(R) Core(TM) i7-4960X CPU @ 3.60GHz NumberOfCores : 6 NumberOfLogicalProcessors: 12 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
C++ benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks (except as noted below):
| icl -Qvc10 | |
| 473.astar: | C:\Program Files (x86)\Intel\Composer XE 2013.171/bin/intel64/icl.exe |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias /F512000000 |
| 403.gcc: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -Qauto-ilp32 -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 458.sjeng: | -Qauto-ilp32 -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | -Qauto-ilp32 -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 464.h264ref: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qauto-ilp32 -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
