SPEC® CFP2006 Result

Oracle Corporation

Sun Fire X4-2 (Intel Xeon E5-2697 v2 2.7GHz)

SPECfp®_rate2006 = 624

SPECfp_rate_base2006 = 578

CPU2006 license:	6	Test date:	Sep-2013
Test sponsor:	Oracle Corporation	Hardware Availability:	Sep-2013
Tested by:	Oracle Corporation	Software Availability:	Nov-2013

Hardware
CPU Name:	Intel Xeon E5-2697 v2
CPU Characteristics:	Intel Turbo Boost Technology up to 3.50 GHz
CPU MHz:	2700
FPU:	Integrated
CPU(s) enabled:	24 cores, 2 chips, 12 cores/chip, 2 threads/core
CPU(s) orderable:	2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	30 MB I+D on chip per chip
Other Cache:	None
Memory:	256 GB (16 x 16 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem:	1 x 600 GB SAS, 10K RPM
Other Hardware:	None

Software
Operating System:	Solaris 11.1 (SRU 11)
Compiler:	C/C++: Version 12.3 of Oracle Solaris Studio 10/13 Patch Set (tested with nightly build 20130822)
Auto Parallel:	No
File System:	zfs
System State:	Default
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

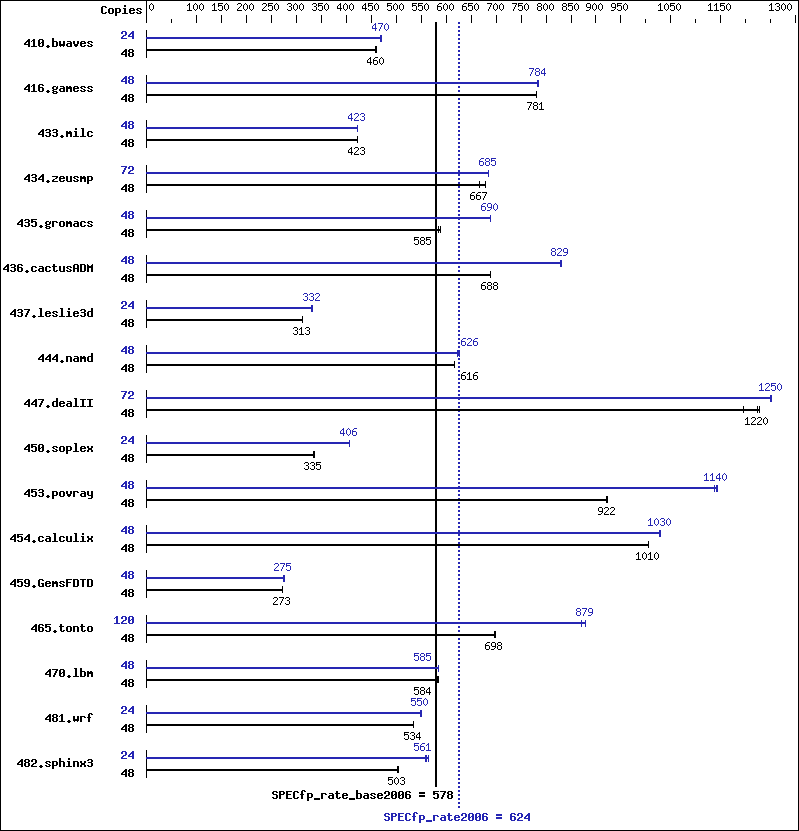

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	48	1420	459	1419	460	1418	460	24	694	470	695	470	695	470
416.gamess	48	1204	780	1203	781	1203	781	48	1199	784	1198	785	1198	784
433.milc	48	1044	422	1043	423	1042	423	48	1042	423	1041	423	1041	423
434.zeusmp	48	644	679	656	666	655	667	72	957	685	957	685	958	684
435.gromacs	48	586	585	585	585	583	588	48	497	690	497	690	497	690
436.cactusADM	48	833	689	834	688	833	688	48	693	828	692	829	690	831
437.leslie3d	48	1444	313	1443	313	1442	313	24	680	332	681	331	680	332
444.namd	48	625	616	625	616	625	616	48	614	627	615	626	619	622
447.dealII	48	447	1230	459	1200	449	1220	72	658	1250	660	1250	658	1250
450.soplex	48	1195	335	1193	335	1196	335	24	493	406	493	406	493	406
453.povray	48	277	923	277	922	277	922	48	223	1140	224	1140	224	1140
454.calculix	48	394	1010	394	1010	394	1000	48	385	1030	385	1030	385	1030
459.GemsFDTD	48	1864	273	1864	273	1865	273	48	1849	275	1851	275	1851	275
465.tonto	48	676	698	677	698	677	698	120	1355	871	1343	880	1343	879
470.lbm	48	1129	584	1130	584	1129	584	48	1128	585	1128	585	1129	584
481.wrf	48	1003	534	1002	535	1005	534	24	488	549	488	550	487	550
482.sphinx3	48	1858	503	1859	503	1857	504	24	834	561	829	564	838	558

Submit Notes

 The config file option 'submit' was used to bind processes to CPU threads with pbind(1)

Operating System Notes

 ulimit -s unlimited  (shell): increases stack
 /etc/system parameters
    autoup=1000
    tune_t_fsflushr=10

 gzip compression set using "zfs set compression=gzip <zfs-filesystem>"

Platform Notes

 Default BIOS Settings were used.

 Sysinfo program /export/home/cpu2006v1.2/Docs/sysinfo
 : 6775  2011-08-16 #f7622badcf24e01c368b1db4377c
 running on bur398-85 Mon Sep  2 14:07:04 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo


 From /usr/sbin/psrinfo -pv
  Intel(r) Xeon(r) CPU E5-2697 v2 @ 2.70GHz
  x86 (GenuineIntel 306E4 family 6 model 62 step 4 clock 2693 MHz)

 /usr/sbin/psrinfo -p:   2 chips
 /usr/sbin/psrinfo -pv | grep "core has" | wc -l:  24 cores
 /usr/sbin/psrinfo | wc -l: 48 threads

 /usr/sbin/prtconf | grep "Memory size:": 262087 Megabytes

 /etc/release:
                                Oracle Solaris 11.1 X86
 uname -a:
 SunOS bur398-85 5.11 11.1 i86pc i386 i86pc

 disk: df -h
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export/home      547G    69G       399G    15%    /export/home

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "1"

Base Compiler Invocation

C benchmarks:

C++ benchmarks:

Fortran benchmarks:

f90

Benchmarks using both Fortran and C:

cc f90

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

C++ benchmarks:

Fortran benchmarks:

f90

Benchmarks using both Fortran and C:

cc f90

Peak Portability Flags

436.cactusADM:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:	-g -fast -xtarget=ivybridge -xipo=2 -m64 -xpagesize=2M -xalias_level=std
470.lbm:	-g -fast -xtarget=ivybridge -xipo=2 -m64 -xpagesize=4K -lbsdmalloc
482.sphinx3:	-g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xtarget=ivybridge -xipo=2 -xpagesize=2M -xalias_level=std -xunroll=6 -W2,-Aujam:noinner -lumem -lmvec

C++ benchmarks:

444.namd:	-g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xtarget=ivybridge -xO3 -xprefetch=no%auto -m64 -xpagesize=2M -xalias_level=compatible -library=stlport4
447.dealII:	-g -fast -xtarget=ivybridge -xipo=2 -m64 -xpagesize=2M -xalias_level=compatible -library=stdcxx4 -xvector -xprefetch -xrestrict
450.soplex:	-g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xtarget=ivybridge -xipo=2 -xpagesize=2M -xalias_level=compatible -library=stlport4 -m32 -qoption iropt -Rujam -qoption iropt -Rtile
453.povray:	-g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xtarget=ivybridge -xprefetch=no%auto -xipo=2 -m64 -xpagesize=2M -xalias_level=compatible -qoption iropt -Atile:skew=on -qoption iropt -Ainline:cs=700 -library=stdcxx4

Fortran benchmarks:

410.bwaves:	-g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xtarget=ivybridge -xipo=2 -m64 -xpagesize=2M
416.gamess:	-g -fast -xtarget=ivybridge -xipo=2 -m64 -xpagesize=2M -xunroll=1 -xvector=no%simd -xprefetch_level=1
434.zeusmp:	Same as 410.bwaves
437.leslie3d:	-g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xtarget=ivybridge -xipo=2 -m64
459.GemsFDTD:	Same as 410.bwaves
465.tonto:	-g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xtarget=ivybridge -xipo=2 -m64 -xpagesize=2M -xvector=lib -xalias -lbsdmalloc -stackvar

Benchmarks using both Fortran and C:

435.gromacs:	-g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -xtarget=ivybridge -xipo=2 -m64 -xpagesize=2M -fsimple=2 -Qoption ube -fsimple=3 -xvector=no%simd
436.cactusADM:	-g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -xtarget=ivybridge -xipo=2 -m64 -xpagesize=2M -lumem -xprefetch_level=3
454.calculix:	-g -fast(cc) -fast(f90) -xtarget=ivybridge -xipo=0 -m64 -xpagesize=2M -xprefetch_level=2 -xprefetch_auto_type=indirect_array_access -Qoption ube -xprefetch_mult=24 -xunroll=2
481.wrf:	-g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -xtarget=ivybridge -xipo=2 -m64

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-x86_64.20130924.html,
http://www.spec.org/cpu2006/flags/Oracle-platform-x86_64.CPUv1.2-RevA.20120425.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-x86_64.20130924.xml,
http://www.spec.org/cpu2006/flags/Oracle-platform-x86_64.CPUv1.2-RevA.20120425.xml.
