| CPU2006 license: | 11 | Test date: | May-2013 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Aug-2013 |
| Tested by: | IBM Corporation | Software Availability: | Apr-2013 |
| Hardware | |
|---|---|
| CPU Name: | POWER7+ |
| CPU Characteristics: | Intelligent Energy Optimization enabled, up to 4.431 GHz |
| CPU MHz: | 4060 |
| FPU: | Integrated |
| CPU(s) enabled: | 32 cores, 8 chips, 4 cores/chip, 4 threads/core |
| CPU(s) orderable: | 16, 32 cores |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 10 MB I+D on chip per core |
| Other Cache: | None |
| Memory: | 256 GB (64 x 4 GB) DDR3 1066 MHz |
| Disk Subsystem: | 1 x 300 GB SAS SFF 15K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.4 (ppc64) kernel 2.6.32-358.6.1.el6.ppc64 |
| Compiler: | C/C++: Version 12.1 of IBM XL C/C++ for Linux Fortran: Version 14.1 of IBM XL Fortran for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | -Post-Link Optimization for Linux on POWER, version 5.6.2-1 -MicroQuill SmartHeap 9 -Apache C++ Standard Library V4.2.1 |

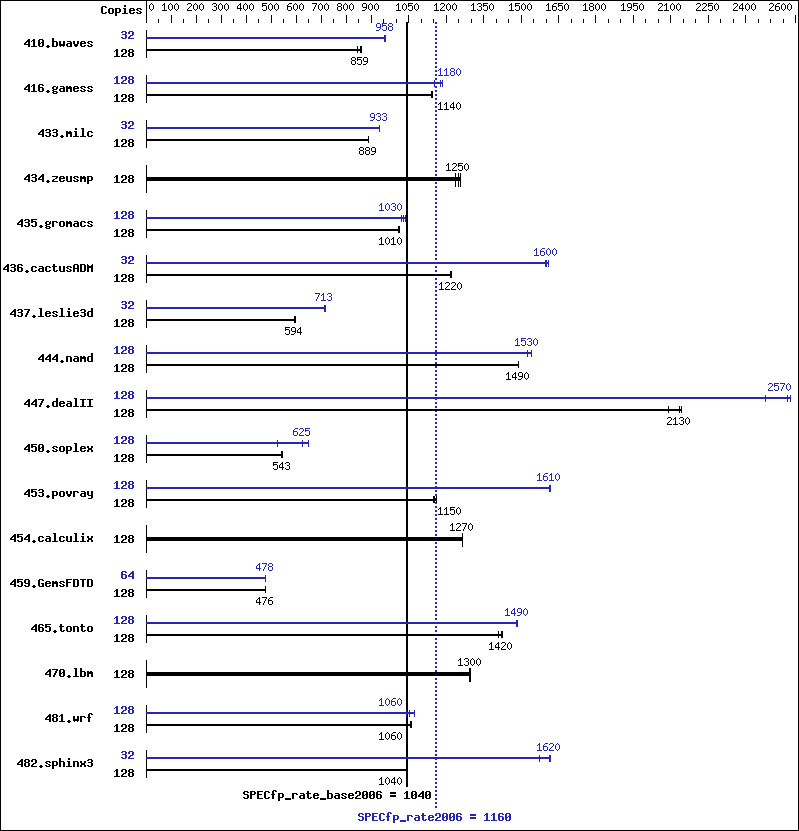

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 128 | 2061 | 844 | 2020 | 861 | 2025 | 859 | 32 | 454 | 958 | 454 | 958 | 456 | 953 |
| 416.gamess | 128 | 2192 | 1140 | 2189 | 1150 | 2199 | 1140 | 128 | 2116 | 1180 | 2175 | 1150 | 2125 | 1180 |
| 433.milc | 128 | 1322 | 889 | 1321 | 889 | 1324 | 887 | 32 | 315 | 934 | 315 | 933 | 316 | 931 |
| 434.zeusmp | 128 | 942 | 1240 | 931 | 1250 | 927 | 1260 | 128 | 942 | 1240 | 931 | 1250 | 927 | 1260 |
| 435.gromacs | 128 | 904 | 1010 | 902 | 1010 | 904 | 1010 | 128 | 880 | 1040 | 894 | 1020 | 888 | 1030 |
| 436.cactusADM | 128 | 1254 | 1220 | 1255 | 1220 | 1253 | 1220 | 32 | 239 | 1600 | 238 | 1610 | 239 | 1600 |
| 437.leslie3d | 128 | 2022 | 595 | 2027 | 594 | 2032 | 592 | 32 | 420 | 717 | 422 | 713 | 422 | 713 |
| 444.namd | 128 | 689 | 1490 | 690 | 1490 | 688 | 1490 | 128 | 673 | 1530 | 673 | 1530 | 666 | 1540 |
| 447.dealII | 128 | 700 | 2090 | 683 | 2140 | 686 | 2130 | 128 | 568 | 2580 | 570 | 2570 | 591 | 2480 |
| 450.soplex | 128 | 1969 | 542 | 1958 | 545 | 1966 | 543 | 128 | 2034 | 525 | 1708 | 625 | 1644 | 649 |
| 453.povray | 128 | 591 | 1150 | 591 | 1150 | 587 | 1160 | 128 | 422 | 1610 | 422 | 1610 | 421 | 1620 |
| 454.calculix | 128 | 834 | 1270 | 833 | 1270 | 835 | 1260 | 128 | 834 | 1270 | 833 | 1270 | 835 | 1260 |
| 459.GemsFDTD | 128 | 2852 | 476 | 2856 | 475 | 2842 | 478 | 64 | 1421 | 478 | 1421 | 478 | 1422 | 478 |
| 465.tonto | 128 | 886 | 1420 | 892 | 1410 | 884 | 1420 | 128 | 848 | 1490 | 850 | 1480 | 848 | 1490 |
| 470.lbm | 128 | 1355 | 1300 | 1356 | 1300 | 1358 | 1290 | 128 | 1355 | 1300 | 1356 | 1300 | 1358 | 1290 |
| 481.wrf | 128 | 1349 | 1060 | 1354 | 1060 | 1350 | 1060 | 128 | 1355 | 1060 | 1371 | 1040 | 1331 | 1070 |
| 482.sphinx3 | 128 | 2393 | 1040 | 2396 | 1040 | 2398 | 1040 | 32 | 397 | 1570 | 386 | 1620 | 385 | 1620 |
Compiler Invocation Notes
C/C++ compiler updated to April 2013 PTF Version: 12.01.0000.0003 Fortran compiler updated to April 2013 PTF Version: 14.01.0000.0003
Peak Tuning Notes
Post-Link optimization tool used for:
433.milc 435.gromacs 450.soplex 482.sphinx3
with options -O4 -nodp
434.zeusmp
with options -O4 -vrox -nodp
437.leslie3d
with options -O3 -lu -1 -nodp -sdp 9
444.namd
with options -O3 -lu -1 -nodp -sdp 9
450.soplex
with options -O4 -nodp
465.tonto
with options -O4
482.sphinx3
with options -O4 -nodp
Submit Notes
The config file option 'submit' was used to assign benchmark copy to specific kernel thread using the "numactl" command (see flags file for details).
Operating System Notes
ulimit -s (stack) set to 1048576. Large pages reserved as follows by root user: echo 8448 > /proc/sys/vm/nr_hugepages The Apache C++ Standard Library V4.2.1 was installed from http://stdcxx.apache.org/download.html using: gmake BUILDTYPE=8d CONFIG=gcc.config crashkernel was set to 256 MB in /etc/yaboot.conf file.
General Notes
Environment variables set by runspec before the start of the run: HUGETLB_ELFMAP = "RW" HUGETLB_MORECORE = "yes" HUGETLB_VERBOSE = "0" XLFRTEOPTS = "intrinthds=1"
Base Compiler Invocation
C benchmarks:
| xlc -qlanglvl=extc99 |
C++ benchmarks:
| xlC |
Fortran benchmarks:
| xlf95 |
Benchmarks using both Fortran and C:
| xlc -qlanglvl=extc99 xlf95 |
Base Portability Flags
| 410.bwaves: | -qfixed |
| 416.gamess: | -qfixed |
| 434.zeusmp: | -qfixed |
| 435.gromacs: | -qextname -qfixed |
| 436.cactusADM: | -qextname -qfixed |
| 437.leslie3d: | -qfixed |
| 454.calculix: | -qextname -qfixed |
| 481.wrf: | -DNOUNDERSCORE |
| 482.sphinx3: | -qchars=signed |
Base Optimization Flags
C benchmarks:
| -O5 -qarch=auto -qtune=auto -qipa=threads -B/usr/share/libhugetlbfs/ -tl -Wl,--hugetlbfs-align |
C++ benchmarks:
| -O5 -qarch=auto -qtune=auto -qipa=threads -qrtti -B/usr/share/libhugetlbfs/ -tl -Wl,--hugetlbfs-align |
Fortran benchmarks:
| -O5 -qarch=auto -qtune=auto -qipa=threads -qalias=nostd -B/usr/share/libhugetlbfs/ -tl -Wl,--hugetlbfs-align |
Benchmarks using both Fortran and C:
| -O5 -qarch=auto -qtune=auto -qipa=threads -B/usr/share/libhugetlbfs/ -tl -Wl,--hugetlbfs-align -qalias=nostd |
Base Other Flags
C benchmarks:
C++ benchmarks:
Fortran benchmarks:
Benchmarks using both Fortran and C:
Peak Compiler Invocation
C benchmarks:
| xlc -qlanglvl=extc99 |
C++ benchmarks:
| xlC |
Fortran benchmarks:
| xlf95 |
Benchmarks using both Fortran and C:
| xlc -qlanglvl=extc99 xlf95 |
Peak Portability Flags
| 410.bwaves: | -qfixed |
| 416.gamess: | -qfixed |
| 434.zeusmp: | -qfixed |
| 435.gromacs: | -qextname -qfixed |
| 436.cactusADM: | -DSPEC_CPU_LP64 -qfixed -qextname |
| 437.leslie3d: | -qfixed |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -qextname -qfixed |
| 481.wrf: | -DNOUNDERSCORE |
| 482.sphinx3: | -qchars=signed |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -Wl,-q -O5 -qarch=auto -qtune=auto -qipa=threads -lhugetlbfs |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -Wl,-q -qpdf1(pass 1) -qpdf2(pass 2) -O4 -qipa=threads -lhugetlbfs |
C++ benchmarks:
| 444.namd: | -Wl,-q -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qarch=auto -qtune=auto -qipa=threads -lhugetlbfs |
| 447.dealII: | -O4 -qipa=threads -qrtti -qcpp_stdinc=/opt/stdcxx421/include/ansi:/opt/stdcxx421/include:/opt/ibmcmp/vacpp/12.1/include -lsmartheap -L/opt/stdcxx421/lib -R/opt/stdcxx421/lib -lstd8d |
| 450.soplex: | -Wl,-q -qpdf1(pass 1) -qpdf2(pass 2) -O3 -qarch=auto -qtune=auto -q64 -lhugetlbfs |
| 453.povray: | -Wl,-q -qpdf1(pass 1) -qpdf2(pass 2) -O4 -qipa=threads -qsimd -q64 -lsmartheap64 |
Fortran benchmarks:
| 410.bwaves: | -qpdf1(pass 1) -qpdf2(pass 2) -O4 -qipa=threads -qsmallstack=dynlenonheap -q64 -lhugetlbfs |
| 416.gamess: | -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qarch=auto -qtune=auto -qipa=threads -qalias=nostd -lhugetlbfs |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | -Wl,-q -O5 -qarch=auto -qtune=auto -qipa=threads -q64 -B/usr/share/libhugetlbfs/ -tl -Wl,--hugetlbfs-align |
| 459.GemsFDTD: | -O4 -qipa=threads -qsimd -B/usr/share/libhugetlbfs/ -tl -Wl,--hugetlbfs-align |
| 465.tonto: | -Wl,-q -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qarch=auto -qtune=auto -qipa=threads -qsimd -lhugetlbfs |
Benchmarks using both Fortran and C:
| 435.gromacs: | -Wl,-q -qpdf1(pass 1) -qpdf2(pass 2) -O4 -qipa=threads -qsimd -lhugetlbfs |
| 436.cactusADM: | -O4 -qipa=threads -qsimd -qnostrict -q64 -qsmallstack=dynlenonheap -qalias=nostd -lhugetlbfs |
| 454.calculix: | basepeak = yes |
| 481.wrf: | -O3 -qarch=auto -qtune=auto -q64 -lhugetlbfs |
