| CPU2006 license: | 3 | Test date: | Sep-2012 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Jun-2012 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Mar-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2620 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.50 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 64 GB (8 x 8 GB 2Rx4 PC3-12800R-11, ECC, running at 1333 MHz and CL9) |
| Disk Subsystem: | 2 x 300 GB 15 K SAS, RAID 1 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2, (Santiago) Kernel 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.2.273 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 HP Array Configuration Utility, CLI version |

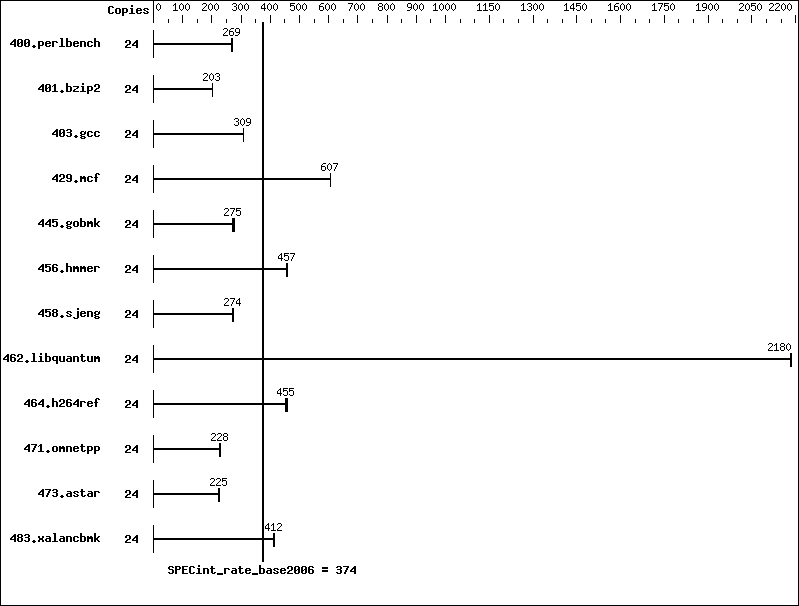

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 872 | 269 | 872 | 269 | 871 | 269 | |||||||
| 401.bzip2 | 24 | 1143 | 203 | 1144 | 202 | 1143 | 203 | |||||||
| 403.gcc | 24 | 628 | 308 | 625 | 309 | 625 | 309 | |||||||
| 429.mcf | 24 | 360 | 607 | 360 | 607 | 360 | 608 | |||||||
| 445.gobmk | 24 | 906 | 278 | 915 | 275 | 932 | 270 | |||||||
| 456.hmmer | 24 | 490 | 457 | 490 | 457 | 489 | 458 | |||||||
| 458.sjeng | 24 | 1060 | 274 | 1056 | 275 | 1080 | 269 | |||||||
| 462.libquantum | 24 | 228 | 2180 | 228 | 2190 | 228 | 2180 | |||||||
| 464.h264ref | 24 | 1167 | 455 | 1172 | 453 | 1159 | 458 | |||||||
| 471.omnetpp | 24 | 658 | 228 | 659 | 228 | 658 | 228 | |||||||
| 473.astar | 24 | 752 | 224 | 749 | 225 | 749 | 225 | |||||||
| 483.xalancbmk | 24 | 402 | 412 | 401 | 413 | 404 | 410 | |||||||
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1 > /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --localalloc runspec <etc> Drive Write Cache set to Enabled in HP Array Configuration Utility, CLI version Accelerator Ratio for Reads/Writes set to = 100% Read / 0% Write in HP Array Configuration Utility, CLI version
Platform Notes
BIOS Configuration: HP Power Profile set to Custom Thermal Configuration set to Maximum Cooling Collaborative Power Control set to Disabled Processor Power and Utilization Monitoring set to Disabled Sysinfo program /cpu2006/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on ml350pGen8 Mon Sep 24 06:12:11 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2620 0 @ 2.00GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 65937904 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux ml350pGen8 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Sep 23 22:27 SPEC is set to: /cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda3 ext4 273G 36G 224G 14% / Additional information from dmidecode: BIOS HP P72 02/21/2012 Memory: 8x Not Specified Not Specified 8 GB 1600 MHz 2 rank (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,1,0" LD_LIBRARY_PATH = "/cpu2006/libs2/32:/cpu2006/libs2/64" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
