SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company (Test Sponsor: Advanced Micro Devices)

Compaq 6005 Pro

CPU2006 license: 49 Test date: Aug-2012
Test sponsor: Advanced Micro Devices Hardware Availability: Sep-2010
Tested by: Advanced Micro Devices Software Availability: Dec-2011

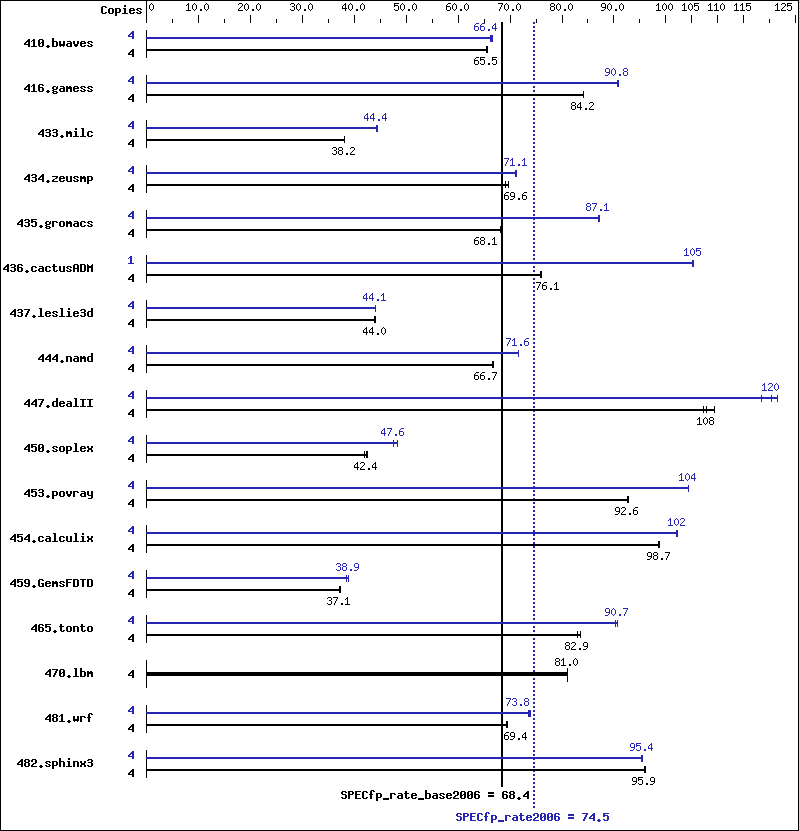

Benchmark results graph
Hardware
CPU Name: AMD Phenom II X4 B97
CPU Characteristics:
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 8 GB (4 x 2 GB 2Rx8 PC3-10600U-9)
Disk Subsystem: 1 x 500 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.2,
Kernel 2.6.32-220.el6.x86_64
Compiler: C/C++/Fortran: Version 4.2.4 of x86 Open64
Compiler Suite (from AMD)
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 831 65.4 830 65.5 828 65.7 4 817 66.5 821 66.2 818 66.4
416.gamess 4 930 84.2 931 84.2 930 84.2 4 863 90.8 863 90.8 863 90.8
433.milc 4 961 38.2 961 38.2 962 38.2 4 828 44.4 827 44.4 828 44.4
434.zeusmp 4 522 69.7 526 69.2 523 69.6 4 512 71.1 511 71.2 513 71.0
435.gromacs 4 419 68.1 420 68.1 419 68.1 4 328 87.1 328 87.1 328 87.0
436.cactusADM 4 630 75.9 628 76.1 628 76.1 1 114 105   114 105   114 105
437.leslie3d 4 856 43.9 854 44.0 855 44.0 4 853 44.1 855 44.0 853 44.1
444.namd 4 481 66.7 481 66.7 480 66.8 4 448 71.6 448 71.6 448 71.6
447.dealII 4 427 107   419 109   425 108   4 386 118   377 122   381 120
450.soplex 4 796 41.9 786 42.4 785 42.5 4 700 47.6 700 47.6 691 48.3
453.povray 4 230 92.5 230 92.6 229 92.8 4 204 104   204 104   204 104
454.calculix 4 335 98.6 334 98.8 334 98.7 4 323 102   324 102   323 102
459.GemsFDTD 4 1143 37.1 1145 37.1 1136 37.3 4 1091 38.9 1090 38.9 1100 38.6
465.tonto 4 475 82.9 471 83.6 475 82.9 4 434 90.7 436 90.3 434 90.7
470.lbm 4 678 81.1 678 81.0 679 81.0 4 678 81.1 678 81.0 679 81.0
481.wrf 4 654 68.3 643 69.4 644 69.4 4 608 73.5 605 73.8 605 73.8
482.sphinx3 4 813 95.9 813 95.9 812 96.0 4 818 95.3 817 95.4 816 95.5

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Huge pages were not configured for this run.
Transparent huge pages were enabled for this run (OS default)

Binaries were compiled on a system with 2x AMD Opteron 2220SE chips + 32GB Memory using SLES10 SP2 (with binutils 2.18)

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "0"
LD_LIBRARY_PATH = "/root/work/cpu2006v1.1/amd1002-rate-libs-revC/64:/root/work/cpu2006v1.1/amd1002-rate-libs-revC/32"
OMP_NUM_THREADS = "4"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -march=barcelona   -mso   -Ofast   -OPT:malloc_alg=1   -HP:bdt=2m

C++ benchmarks:

 -march=barcelona   -mso   -Ofast   -static   -INLINE:aggressive=on   -OPT:malloc_alg=1   -HP:bdt=2m

Fortran benchmarks:

 -march=barcelona   -mso   -Ofast   -HP

Benchmarks using both Fortran and C:

 -march=barcelona   -mso   -Ofast   -OPT:malloc_alg=1   -HP:bdt=2m   -HP

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -march=barcelona   -mso   -Ofast   -CG:movnti=1   -CG:local_sched_alg=1   -CG:locs_shallow_depth=1   -HP:bdt=2m:heap=2m   -LNO:prefetch=3
470.lbm:  basepeak = yes
482.sphinx3:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:malloc_alg=2   -CG:sse_cse_regs=0   -CG:locs_shallow_depth=1   -CG:cmp_peep=on   -CG:local_sched_alg=1   -INLINE:aggressive=on

C++ benchmarks:

444.namd:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:ignore_feedback=off   -CG:local_sched_alg=2   -CG:load_exe=0   -CG:compute_to=on   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m
447.dealII:  -march=barcelona   -mso   -Ofast   -static   -INLINE:aggressive=on   -LNO:opt=0   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -TENV:frame_pointer=off
450.soplex:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -INLINE:aggressive=on   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -OPT:malloc_alg=1   -CG:load_exe=0   -fno-exceptions   -m32   -HP:bdt=2m
453.povray:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -INLINE:aggressive=on

Fortran benchmarks:

410.bwaves:  -march=barcelona   -mso   -O3   -OPT:Ofast   -OPT:treeheight=on   -LNO:blocking=off   -LNO:prefetch_ahead=5   -LNO:ignore_feedback=off   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -CG:cmp_peep=on
416.gamess:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:fu=6   -LNO:blocking=0   -LNO:prefetch=0   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -HP:bdt=2m:heap=2m
434.zeusmp:  -march=barcelona   -mso   -Ofast   -LNO:blocking=off   -LNO:interchange=off   -OPT:treeheight=on   -OPT:unroll_size=256   -CG:cmp_peep=on   -GRA:prioritize_by_density=on   -HP
437.leslie3d:  -march=barcelona   -mso   -Ofast   -HP:bdt=2m:heap=2m
459.GemsFDTD:  -march=barcelona   -mso   -Ofast   -LNO:fission=2   -LNO:prefetch_ahead=1   -CG:load_exe=0   -CG:local_sched_alg=1   -HP
465.tonto:  -march=barcelona   -mso   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -HP

Benchmarks using both Fortran and C:

435.gromacs:  -march=barcelona   -mso   -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m
436.cactusADM:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -apo   -LNO:prefetch_ahead=1   -HP:bdt=2m:heap=2m   -LANG:heap_allocation_threshold=100
454.calculix:  -march=barcelona   -mso   -Ofast   -CG:load_exe=0   -CG:ptr_load_use=0   -CG:local_sched_alg=2   -CG:compute_to=on   -LNO:prefetch_ahead=30   -WOPT:unroll=2   -GRA:optimize_boundary=on   -HP:bdt=2m:heap=2m
481.wrf:  -march=barcelona   -mso   -Ofast   -LNO:blocking=off   -LNO:prefetch_ahead=10   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -m3dnow   -HP

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC-I.html,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC-I.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC-I.xml,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC-I.xml.
