SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro (Test Sponsor: Advanced Micro Devices)

Supermicro A+ Server 2042G-6RF,
AMD Opteron 6386 SE

CPU2006 license: 49 Test date: Sep-2012
Test sponsor: Advanced Micro Devices Hardware Availability: Nov-2012
Tested by: Advanced Micro Devices Software Availability: Aug-2012

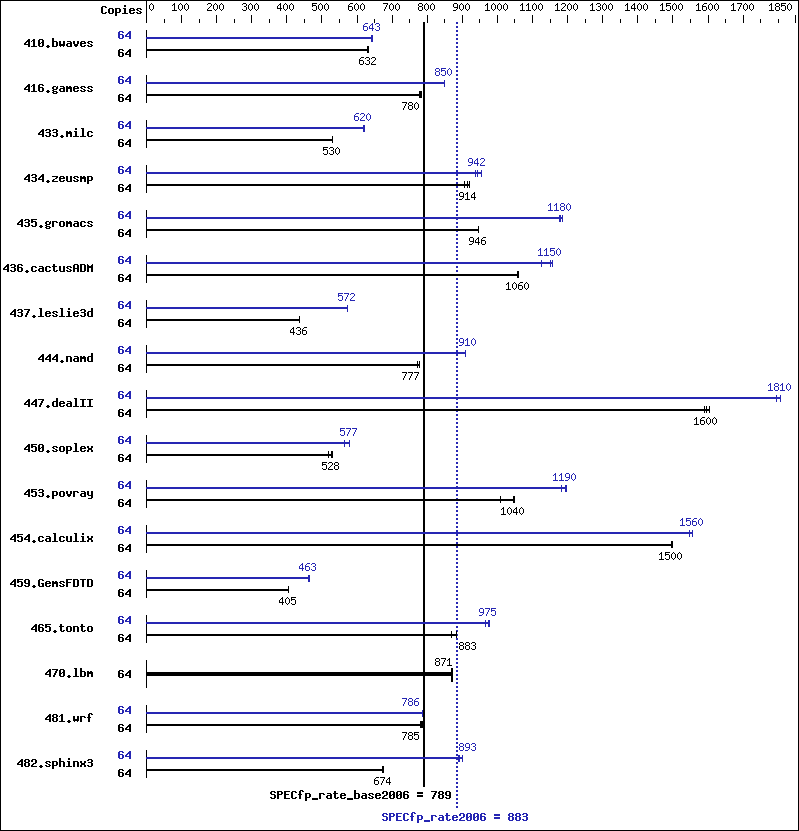

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6386 SE
CPU Characteristics: AMD Turbo CORE technology up to 3.50 GHz
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 64 cores, 4 chips, 16 cores/chip
CPU(s) orderable: 1,2,4 chips
Primary Cache: 512 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory: 256 GB (32 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 250 GB SSD
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.3,
Kernel 2.6.32-279.el6.x86_64
Compiler: C/C++/Fortran: Version 4.5.2 of x86 Open64
Compiler Suite (from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 64 1379 631 1377 632 1376 632 64 1352 643 1353 643 1354 642
416.gamess 64 1608 780 1598 784 1610 778 64 1474 850 1474 850 1474 850
433.milc 64 1108 530 1108 530 1106 531 64 948 620 949 619 947 620
434.zeusmp 64 644 905 637 914 633 920 64 622 937 618 942 611 954
435.gromacs 64 483 946 483 947 483 946 64 385 1190 387 1180 388 1180
436.cactusADM 64 722 1060 723 1060 721 1060 64 680 1130 662 1160 664 1150
437.leslie3d 64 1381 436 1376 437 1379 436 64 1053 571 1052 572 1052 572
444.namd 64 660 777 660 777 666 771 64 564 910 565 908 564 910
447.dealII 64 459 1600 456 1610 460 1590 64 405 1810 408 1800 405 1810
450.soplex 64 1028 519 1010 528 1009 529 64 947 564 925 577 922 579
453.povray 64 325 1050 338 1010 326 1040 64 288 1180 285 1190 284 1200
454.calculix 64 352 1500 353 1490 353 1500 64 339 1560 341 1550 339 1560
459.GemsFDTD 64 1677 405 1683 403 1678 405 64 1473 461 1467 463 1466 463
465.tonto 64 713 883 725 869 713 883 64 646 975 645 976 651 967
470.lbm 64 1009 871 1012 869 1010 871 64 1009 871 1012 869 1010 871
481.wrf 64 911 785 910 786 916 781 64 910 786 910 786 911 785
482.sphinx3 64 1848 675 1851 674 1850 674 64 1403 889 1384 901 1397 893

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst

Set vm/nr_hugepages=57344 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/root/work/cpu2006v1.2/amd1206-rate-libs-revA/32:/root/work/cpu2006v1.2/amd1206-rate-libs-revA/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso   -march=bdver1

C++ benchmarks:

 -Ofast   -static   -CG:load_exe=0   -OPT:malloc_alg=1   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -D__OPEN64_FAST_SET   -march=bdver1

Fortran benchmarks:

 -Ofast   -LNO:blocking=off   -LNO:simd_peel_align=on   -OPT:rsqrt=2   -OPT:unroll_size=256   -HP:bd=2m:heap=2m   -mso   -march=bdver1

Benchmarks using both Fortran and C:

 -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso   -march=bdver1   -LNO:blocking=off   -LNO:simd_peel_align=on   -OPT:rsqrt=2   -OPT:unroll_size=256

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore

Peak Optimization Flags

C benchmarks:

433.milc:  -Ofast   -CG:movnti=1   -CG:locs_best=on   -HP:bdt=2m:heap=2m   -IPA:plimit=7000   -IPA:callee_limit=1200   -OPT:struct_array_copy=2   -OPT:alias=field_sensitive   -mso   -march=bdver1
470.lbm:  basepeak = yes
482.sphinx3:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -m32   -IPA:plimit=1000   -OPT:malloc_alg=2   -CG:cmp_peep=on   -CG:p2align=0   -CG:load_exe=1   -CG:dsched=on   -INLINE:aggressive=on   -LNO:prefetch=2   -LNO:prefetch_ahead=4   -mso   -march=bdver2

C++ benchmarks:

444.namd:  -Ofast   -IPA:plimit=3000   -LNO:ignore_feedback=off   -CG:local_sched_alg=0   -CG:load_exe=0   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m   -LNO:if_select_conv=1   -OPT:alias=disjoint   -LNO:psimd_iso_unroll=ON   -march=bdver1
447.dealII:  -Ofast   -D__OPEN64_FAST_SET   -static   -INLINE:aggressive=on   -LNO:opt=1   -LNO:simd=2   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -CG:movext_icmp=off   -TENV:frame_pointer=off   -march=bdver1
450.soplex:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:ignore_feedback=off   -INLINE:aggressive=on   -OPT:RO=1   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -fno-exceptions   -CG:p2align=0   -m32   -mno-fma4   -HP:bdt=2m:heap=2m   -WOPT:sib=on   -march=bdver1
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:pre_local_sched=off   -CG:p2align=0   -CG:p2align_split=on   -CG:dsched=on   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -OPT:transform=2   -OPT:alias=disjoint   -WOPT:aggcm=0   -march=bdver2

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:Ofast   -OPT:treeheight=on   -LNO:blocking=off   -LNO:ignore_feedback=off   -LNO:fu=4   -LNO:loop_model_simd=on   -LNO:simd_rm_unity_remainder=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -CG:cmp_peep=on   -march=bdver1
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:fu=6   -LNO:blocking=0   -LNO:simd=2   -OPT:ro=3   -OPT:recip=on   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -WOPT:sib=on   -march=bdver1
434.zeusmp:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:interchange=off   -IPA:plimit=1500   -HP:bdt=2m:heap=2m   -march=bdver1
437.leslie3d:  -Ofast   -CG:pre_minreg_level=2   -LNO:simd=0   -LNO:fusion=2   -HP:bdt=2m:heap=2m   -mso   -march=bdver1
459.GemsFDTD:  -Ofast   -IPA:plimit=1500   -OPT:unroll_size=1024   -OPT:unroll_times_max=16   -LNO:fission=2   -CG:local_sched_alg=2   -HP   -march=bdver1
465.tonto:  -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -CG:local_sched_alg=3   -IPA:plimit=525   -HP:bdt=2m:heap=2m   -march=bdver1

Benchmarks using both Fortran and C:

435.gromacs:  -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m   -CG:local_sched_alg=2   -CG:load_exe=3   -GRA:unspill=on   -march=bdver1   -LNO:simd=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:prefetch=2   -LNO:pf2=0   -LNO:prefetch_ahead=4   -HP   -CG:locs_shallow_depth=1   -CG:load_exe=0   -CG:dsched=on   -WOPT:sib=on   -march=bdver1
454.calculix:  -Ofast   -OPT:unroll_size=256   -OPT:alias=disjoint   -GRA:optimize_boundary=on   -CG:dsched=on   -HP:bdt=2m:heap=2m   -march=bdver1
481.wrf:  -Ofast   -LNO:blocking=off   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -HP   -WOPT:sib=on   -march=bdver1

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-II.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-II.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Thu Jul 24 13:04:15 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 5 November 2012.
