CPU2006 license: | 49 | Test date: | Aug-2012 |
---|---|---|---|
Test sponsor: | Advanced Micro Devices | Hardware Availability: | Nov-2012 |
Tested by: | Advanced Micro Devices | Software Availability: | Aug-2012 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6378 |
CPU Characteristics: | AMD Turbo CORE technology up to 3.30 GHz |
CPU MHz: | 2400 |
FPU: | Integrated |
CPU(s) enabled: | 64 cores, 4 chips, 16 cores/chip |
CPU(s) orderable: | 1,2,4 chips |
Primary Cache: | 512 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core |
Secondary Cache: | 16 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | 16 MB I+D on chip per chip, 8 MB shared / 8 cores |
Other Cache: | None |
Memory: | 256 GB (32 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
Disk Subsystem: | 1 x 250 GB SSD |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.3, Kernel 2.6.32-279.el6.x86_64 |
Compiler: | C/C++: Version 4.5.2 of x86 Open64 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap 10.0 32-bit Library for Linux |

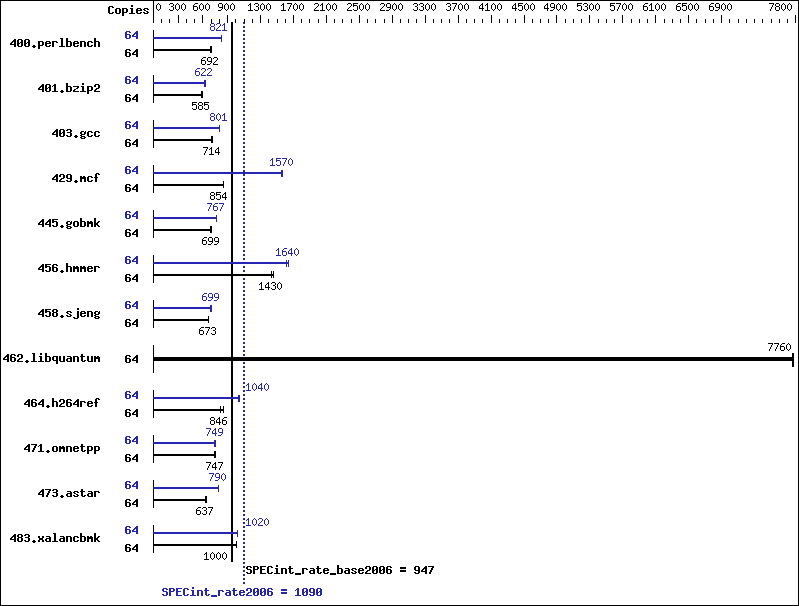

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 64 | 903 | 692 | 895 | 699 | 904 | 692 | 64 | 761 | 822 | 762 | 821 | 761 | 821 |
401.bzip2 | 64 | 1062 | 582 | 1046 | 590 | 1056 | 585 | 64 | 994 | 622 | 982 | 629 | 994 | 621 |
403.gcc | 64 | 725 | 710 | 722 | 714 | 721 | 714 | 64 | 643 | 801 | 642 | 803 | 645 | 799 |
429.mcf | 64 | 684 | 854 | 684 | 854 | 685 | 852 | 64 | 373 | 1570 | 372 | 1570 | 375 | 1550 |
445.gobmk | 64 | 959 | 700 | 962 | 698 | 961 | 699 | 64 | 875 | 767 | 875 | 768 | 876 | 767 |
456.hmmer | 64 | 411 | 1450 | 418 | 1430 | 418 | 1430 | 64 | 369 | 1620 | 365 | 1640 | 363 | 1640 |
458.sjeng | 64 | 1152 | 672 | 1151 | 673 | 1151 | 673 | 64 | 1108 | 699 | 1109 | 698 | 1108 | 699 |
462.libquantum | 64 | 171 | 7760 | 171 | 7760 | 171 | 7780 | 64 | 171 | 7760 | 171 | 7760 | 171 | 7780 |
464.h264ref | 64 | 1745 | 812 | 1674 | 846 | 1660 | 853 | 64 | 1368 | 1040 | 1357 | 1040 | 1363 | 1040 |
471.omnetpp | 64 | 536 | 747 | 531 | 754 | 535 | 747 | 64 | 539 | 742 | 532 | 751 | 534 | 749 |
473.astar | 64 | 706 | 637 | 706 | 636 | 703 | 639 | 64 | 570 | 788 | 569 | 790 | 569 | 790 |
483.xalancbmk | 64 | 441 | 1000 | 439 | 1010 | 440 | 1000 | 64 | 435 | 1020 | 434 | 1020 | 433 | 1020 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst Set vm/nr_hugepages=57344 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "896" LD_LIBRARY_PATH = "/root/work/cpu2006v1.2/amd1206-rate-libs-revA/32:/root/work/cpu2006v1.2/amd1206-rate-libs-revA/64" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64 Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-Ofast -CG:local_sched_alg=1 -INLINE:aggressive=ON -IPA:plimit=8000 -IPA:small_pu=100 -HP:bd=2m:heap=2m -mso -LNO:prefetch=2 -march=bdver1 |
-Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -D__OPEN64_FAST_SET -march=bdver1 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
