| CPU2006 license: | 11 | Test date: | May-2012 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Jul-2012 |
| Tested by: | IBM Corporation | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-4617 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.40 GHz |
| CPU MHz: | 2900 |
| FPU: | Integrated |
| CPU(s) enabled: | 24 cores, 4 chips, 6 cores/chip |
| CPU(s) orderable: | 1,2,3,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (32 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
| Disk Subsystem: | 1 x 300 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

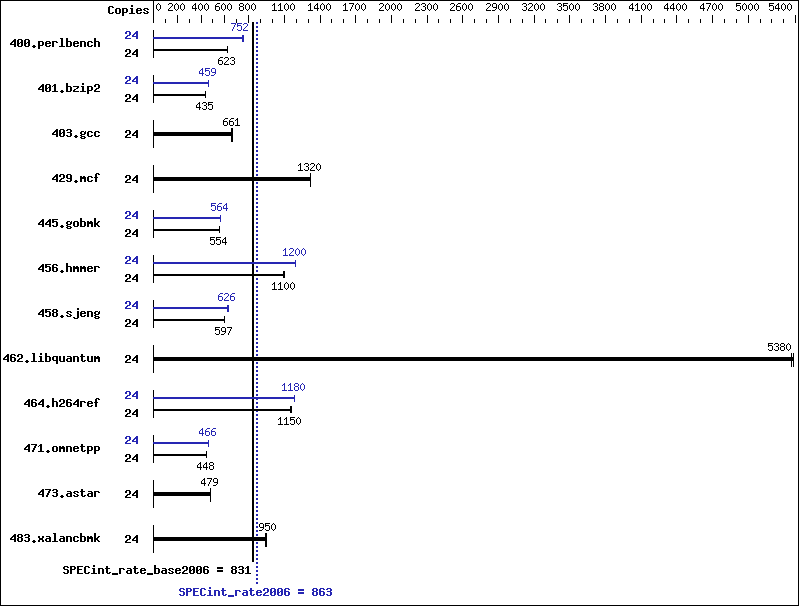

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 376 | 623 | 377 | 622 | 376 | 623 | 24 | 312 | 753 | 312 | 752 | 312 | 751 |
| 401.bzip2 | 24 | 532 | 435 | 532 | 435 | 532 | 435 | 24 | 504 | 459 | 505 | 459 | 505 | 458 |
| 403.gcc | 24 | 292 | 661 | 292 | 661 | 293 | 659 | 24 | 292 | 661 | 292 | 661 | 293 | 659 |
| 429.mcf | 24 | 166 | 1320 | 166 | 1320 | 166 | 1320 | 24 | 166 | 1320 | 166 | 1320 | 166 | 1320 |
| 445.gobmk | 24 | 454 | 554 | 454 | 554 | 455 | 554 | 24 | 446 | 564 | 447 | 564 | 446 | 565 |
| 456.hmmer | 24 | 205 | 1090 | 203 | 1100 | 203 | 1100 | 24 | 187 | 1200 | 187 | 1200 | 187 | 1200 |
| 458.sjeng | 24 | 487 | 597 | 486 | 597 | 486 | 598 | 24 | 464 | 626 | 464 | 626 | 464 | 626 |
| 462.libquantum | 24 | 92.6 | 5370 | 92.5 | 5380 | 92.3 | 5390 | 24 | 92.6 | 5370 | 92.5 | 5380 | 92.3 | 5390 |
| 464.h264ref | 24 | 459 | 1160 | 462 | 1150 | 462 | 1150 | 24 | 449 | 1180 | 448 | 1190 | 449 | 1180 |
| 471.omnetpp | 24 | 335 | 448 | 336 | 447 | 335 | 448 | 24 | 322 | 466 | 322 | 466 | 323 | 465 |
| 473.astar | 24 | 352 | 479 | 352 | 479 | 353 | 477 | 24 | 352 | 479 | 352 | 479 | 353 | 477 |
| 483.xalancbmk | 24 | 174 | 953 | 175 | 944 | 174 | 950 | 24 | 174 | 953 | 175 | 944 | 174 | 950 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Operating Mode set to Maximum Perfomance in BIOS Sysinfo program /cpu2006.1.2/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on kong-pete Tue May 29 21:03:58 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-4617 0 @ 2.90GHz 4 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 6 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 physical 2: cores 0 1 2 3 4 5 physical 3: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 264510108 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux kong-pete 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 May 29 18:42 SPEC is set to: /cpu2006.1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_kongpete-lv_root ext4 264G 5.9G 245G 3% / Additional information from dmidecode: Memory: 11x Hynix HMT31GR7CFR4C-PB 8 GB 1600 MHz 2 rank 15x Micron 36JSF1G72PZ-1G6M1 8 GB 1600 MHz 2 rank 6x Samsung M393B1K70DH0-CK0 8 GB 1600 MHz 2 rank (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/cpu2006.1.2/libs/32:/cpu2006.1.2/libs/64" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
