| CPU2006 license: | 19 | Test date: | Jul-2012 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Jul-2012 |
| Tested by: | Fujitsu | Software Availability: | Feb-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-4640 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC3L-12800R-11, ECC) |
| Disk Subsystem: | 1 x SATA, 500 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.293 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

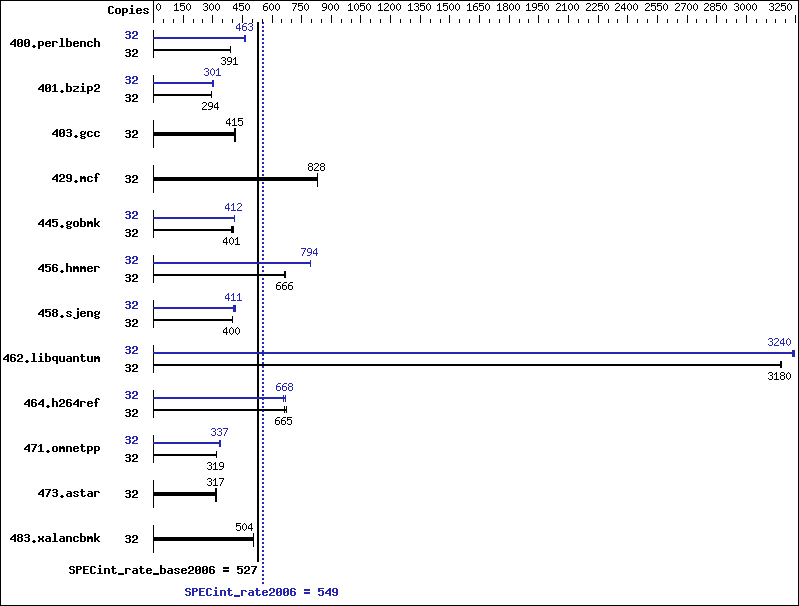

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 32 | 800 | 391 | 802 | 390 | 801 | 391 | 32 | 675 | 463 | 680 | 460 | 672 | 465 |
| 401.bzip2 | 32 | 1047 | 295 | 1049 | 294 | 1053 | 293 | 32 | 1025 | 301 | 1031 | 300 | 1023 | 302 |
| 403.gcc | 32 | 621 | 415 | 620 | 415 | 625 | 412 | 32 | 621 | 415 | 620 | 415 | 625 | 412 |
| 429.mcf | 32 | 353 | 828 | 352 | 828 | 352 | 829 | 32 | 353 | 828 | 352 | 828 | 352 | 829 |
| 445.gobmk | 32 | 837 | 401 | 833 | 403 | 847 | 396 | 32 | 823 | 408 | 815 | 412 | 815 | 412 |
| 456.hmmer | 32 | 449 | 666 | 448 | 666 | 450 | 663 | 32 | 375 | 795 | 376 | 794 | 376 | 794 |
| 458.sjeng | 32 | 969 | 399 | 967 | 400 | 969 | 400 | 32 | 951 | 407 | 942 | 411 | 939 | 413 |
| 462.libquantum | 32 | 209 | 3180 | 209 | 3170 | 209 | 3180 | 32 | 205 | 3230 | 205 | 3240 | 204 | 3240 |
| 464.h264ref | 32 | 1065 | 665 | 1069 | 663 | 1054 | 672 | 32 | 1060 | 668 | 1058 | 669 | 1075 | 659 |
| 471.omnetpp | 32 | 626 | 319 | 626 | 320 | 626 | 319 | 32 | 593 | 337 | 593 | 337 | 595 | 336 |
| 473.astar | 32 | 711 | 316 | 708 | 317 | 709 | 317 | 32 | 711 | 316 | 708 | 317 | 709 | 317 |
| 483.xalancbmk | 32 | 438 | 504 | 438 | 504 | 436 | 506 | 32 | 438 | 504 | 438 | 504 | 436 | 506 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/SPECcpu2006/libs/32:/SPECcpu2006/libs/64" Binaries compiled on a system with 2x E5-2650 CPU + 96 GB memory using RHEL6.2 For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
