CPU2006 license: | 9006 | Test date: | Jun-2012 |
---|---|---|---|
Test sponsor: | NEC Corporation | Hardware Availability: | May-2012 |
Tested by: | NEC Corporation | Software Availability: | Dec-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2450 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.90 GHz |
CPU MHz: | 2100 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 1 chip, 8 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 20 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (6 x 8 GB 2Rx4 PC3L-12800R-11, ECC) |
Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) Kernel 2.6.32-220.el6.x86_64 |
Compiler: | C/C++: Version 12.1.2.273 of Intel C++ Studio XE for Linux; |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 |

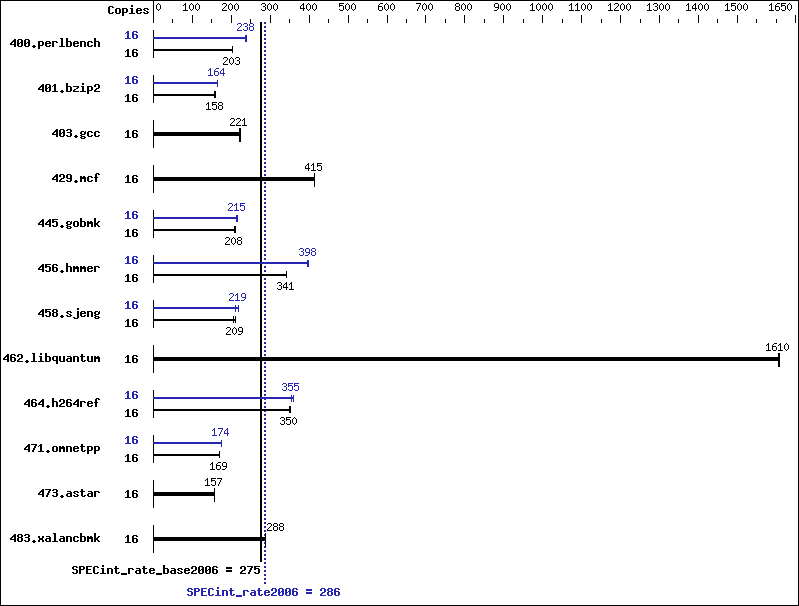

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 16 | 773 | 202 | 771 | 203 | 770 | 203 | 16 | 658 | 238 | 656 | 238 | 656 | 238 |
401.bzip2 | 16 | 971 | 159 | 979 | 158 | 975 | 158 | 16 | 943 | 164 | 940 | 164 | 942 | 164 |
403.gcc | 16 | 578 | 223 | 583 | 221 | 582 | 221 | 16 | 578 | 223 | 583 | 221 | 582 | 221 |
429.mcf | 16 | 352 | 415 | 352 | 415 | 352 | 414 | 16 | 352 | 415 | 352 | 415 | 352 | 414 |
445.gobmk | 16 | 806 | 208 | 799 | 210 | 807 | 208 | 16 | 781 | 215 | 779 | 215 | 788 | 213 |
456.hmmer | 16 | 438 | 341 | 438 | 341 | 438 | 341 | 16 | 374 | 399 | 376 | 397 | 376 | 398 |
458.sjeng | 16 | 924 | 209 | 940 | 206 | 922 | 210 | 16 | 885 | 219 | 886 | 219 | 918 | 211 |
462.libquantum | 16 | 207 | 1610 | 206 | 1610 | 206 | 1610 | 16 | 207 | 1610 | 206 | 1610 | 206 | 1610 |
464.h264ref | 16 | 1009 | 351 | 1013 | 350 | 1014 | 349 | 16 | 988 | 358 | 998 | 355 | 996 | 355 |
471.omnetpp | 16 | 593 | 169 | 592 | 169 | 592 | 169 | 16 | 573 | 174 | 575 | 174 | 573 | 174 |
473.astar | 16 | 714 | 157 | 711 | 158 | 713 | 157 | 16 | 714 | 157 | 711 | 158 | 713 | 157 |
483.xalancbmk | 16 | 383 | 288 | 383 | 288 | 382 | 289 | 16 | 383 | 288 | 383 | 288 | 382 | 289 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS Settings: Energy Performance: Performance Memory Voltage: 1.5 V
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64" Added glibc-static-2.12-1.47.el6.x86_64.rpm to enable static linking Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | basepeak = yes |
429.mcf: | basepeak = yes |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
