CPU2006 license: | 9006 | Test date: | Apr-2012 |
---|---|---|---|
Test sponsor: | NEC Corporation | Hardware Availability: | May-2012 |
Tested by: | NEC Corporation | Software Availability: | Dec-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2430 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.70 GHz |
CPU MHz: | 2200 |
FPU: | Integrated |
CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 15 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (6 x 8 GB 2Rx4 PC3L-12800R-11, ECC, running at 1333 MHz and CL9) |
Disk Subsystem: | 1 x 250 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
Compiler: | C/C++: Version 12.1.2.273 of Intel C++ Studio XE for Linux; |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 |

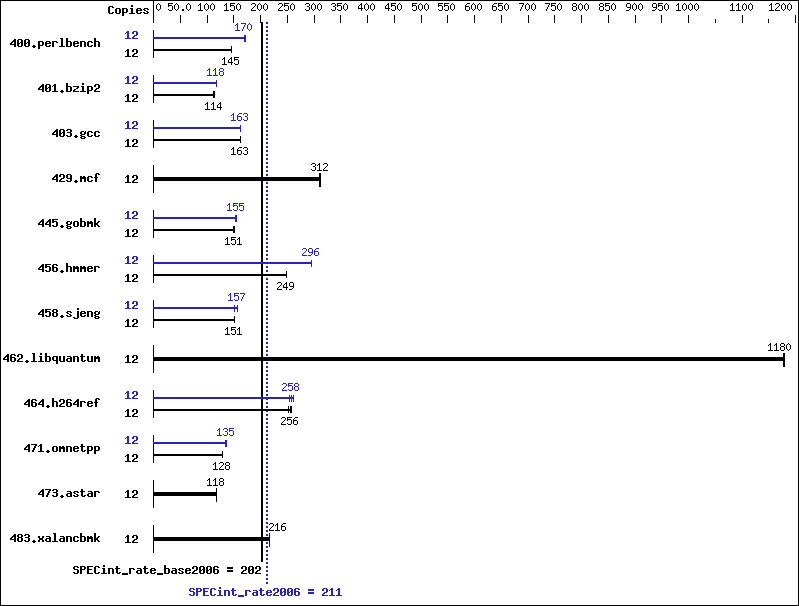

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 12 | 808 | 145 | 809 | 145 | 808 | 145 | 12 | 688 | 170 | 688 | 170 | 684 | 171 |
401.bzip2 | 12 | 1018 | 114 | 1017 | 114 | 1026 | 113 | 12 | 992 | 117 | 982 | 118 | 982 | 118 |
403.gcc | 12 | 591 | 163 | 591 | 163 | 592 | 163 | 12 | 593 | 163 | 592 | 163 | 592 | 163 |
429.mcf | 12 | 351 | 312 | 350 | 312 | 352 | 311 | 12 | 351 | 312 | 350 | 312 | 352 | 311 |
445.gobmk | 12 | 833 | 151 | 833 | 151 | 840 | 150 | 12 | 814 | 155 | 814 | 155 | 822 | 153 |
456.hmmer | 12 | 450 | 249 | 451 | 248 | 450 | 249 | 12 | 379 | 296 | 379 | 296 | 379 | 295 |
458.sjeng | 12 | 963 | 151 | 962 | 151 | 964 | 151 | 12 | 924 | 157 | 923 | 157 | 956 | 152 |
462.libquantum | 12 | 211 | 1180 | 211 | 1180 | 211 | 1180 | 12 | 211 | 1180 | 211 | 1180 | 211 | 1180 |
464.h264ref | 12 | 1049 | 253 | 1028 | 258 | 1038 | 256 | 12 | 1029 | 258 | 1014 | 262 | 1042 | 255 |
471.omnetpp | 12 | 586 | 128 | 584 | 128 | 584 | 128 | 12 | 554 | 135 | 556 | 135 | 553 | 136 |
473.astar | 12 | 714 | 118 | 715 | 118 | 715 | 118 | 12 | 714 | 118 | 715 | 118 | 715 | 118 |
483.xalancbmk | 12 | 382 | 217 | 383 | 216 | 383 | 216 | 12 | 382 | 217 | 383 | 216 | 383 | 216 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS Settings: Energy Performance: Performance
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64" The Express5800/R120d-1E and the Express5800/R120d-2E models are electronically equivalent. The results have been measured on the Express5800/R120d-1E model. Added glibc-static-2.12-1.47.el6.x86_64.rpm to enable static linking Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
429.mcf: | basepeak = yes |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
