CPU2006 license: | 55 | Test date: | Mar-2012 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | May-2012 |
Tested by: | Dell Inc. | Software Availability: | Feb-2012 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2407 |
CPU Characteristics: | |
CPU MHz: | 2200 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 10 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (3 x 8 GB 2Rx4 PC3-12800R-11, ECC, running at 1066 MHz) |
Disk Subsystem: | 2 x 300 GB 15000 RPM SAS, RAID 1 |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 SP2 (x86_64) 3.0.13-0.9-default |
Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V9.01 |

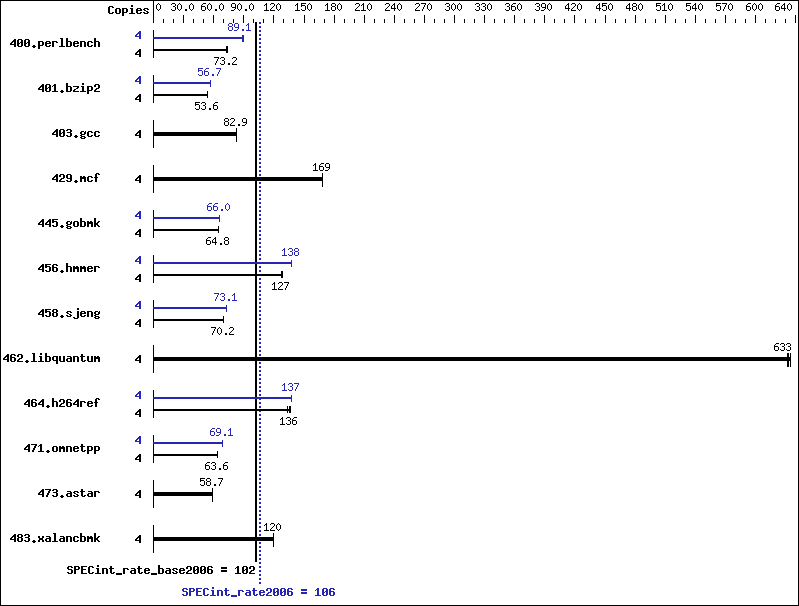

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 4 | 533 | 73.3 | 534 | 73.2 | 534 | 73.2 | 4 | 437 | 89.4 | 438 | 89.1 | 439 | 89.0 |
401.bzip2 | 4 | 721 | 53.5 | 720 | 53.6 | 720 | 53.6 | 4 | 681 | 56.7 | 679 | 56.9 | 682 | 56.6 |
403.gcc | 4 | 388 | 83.0 | 389 | 82.8 | 389 | 82.9 | 4 | 388 | 83.0 | 389 | 82.8 | 389 | 82.9 |
429.mcf | 4 | 216 | 169 | 217 | 168 | 216 | 169 | 4 | 216 | 169 | 217 | 168 | 216 | 169 |
445.gobmk | 4 | 648 | 64.8 | 647 | 64.9 | 648 | 64.8 | 4 | 635 | 66.1 | 635 | 66.0 | 635 | 66.0 |
456.hmmer | 4 | 293 | 127 | 293 | 127 | 291 | 128 | 4 | 271 | 138 | 271 | 137 | 271 | 138 |
458.sjeng | 4 | 690 | 70.2 | 690 | 70.1 | 689 | 70.2 | 4 | 663 | 73.1 | 663 | 73.0 | 663 | 73.1 |
462.libquantum | 4 | 131 | 632 | 131 | 633 | 131 | 634 | 4 | 131 | 632 | 131 | 633 | 131 | 634 |
464.h264ref | 4 | 652 | 136 | 664 | 133 | 650 | 136 | 4 | 645 | 137 | 646 | 137 | 643 | 138 |
471.omnetpp | 4 | 392 | 63.8 | 393 | 63.6 | 394 | 63.5 | 4 | 362 | 69.1 | 362 | 69.1 | 361 | 69.2 |
473.astar | 4 | 479 | 58.7 | 480 | 58.4 | 479 | 58.7 | 4 | 479 | 58.7 | 480 | 58.4 | 479 | 58.7 |
483.xalancbmk | 4 | 230 | 120 | 230 | 120 | 230 | 120 | 4 | 230 | 120 | 230 | 120 | 230 | 120 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
CPU Power Management set to Maximum Performance Memory Frequency set to Maximum Performance Turbo Boost set to Enabled C States/C1E set to Enabled Sysinfo program /root/CPU2006-1.2/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on Defy Thu Mar 8 08:41:17 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2407 0 @ 2.20GHz 1 "physical id"s (chips) 4 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 4 physical 0: cores 0 1 2 3 cache size : 10240 KB From /proc/meminfo MemTotal: 24559976 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 2 uname -a: Linux Defy 3.0.13-0.9-default #1 SMP Mon Jan 16 17:33:03 UTC 2012 (54ddfaf) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Mar 8 08:38 last=S SPEC is set to: /root/CPU2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext3 268G 12G 243G 5% / Additional information from dmidecode: (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/root/CPU2006-1.2/libs/32:/root/CPU2006-1.2/libs/64" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | basepeak = yes |
429.mcf: | basepeak = yes |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
