SPEC® CFP2006 Result

NEC Corporation

Express5800/R120d-2M (Intel Xeon E5-2609)

SPECfp®2006 = 58.5

SPECfp_base2006 = 56.7

CPU2006 license:	9006	Test date:	Apr-2012
Test sponsor:	NEC Corporation	Hardware Availability:	Apr-2012
Tested by:	NEC Corporation	Software Availability:	Dec-2011

Hardware
CPU Name:	Intel Xeon E5-2609
CPU Characteristics:
CPU MHz:	2400
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	10 MB I+D on chip per chip
Other Cache:	None
Memory:	128 GB (16 x 8 GB 2Rx4 PC3L-12800R-11, ECC, running at 1066 MHz and CL7)
Disk Subsystem:	1 x 500 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64
Compiler:	C/C++: Version 12.1.2.273 of Intel C++ Studio XE for Linux; Fortran: Version 12.1.2.273 of Intel Fortran Studio XE for Linux
Auto Parallel:	Yes
File System:	ext4
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

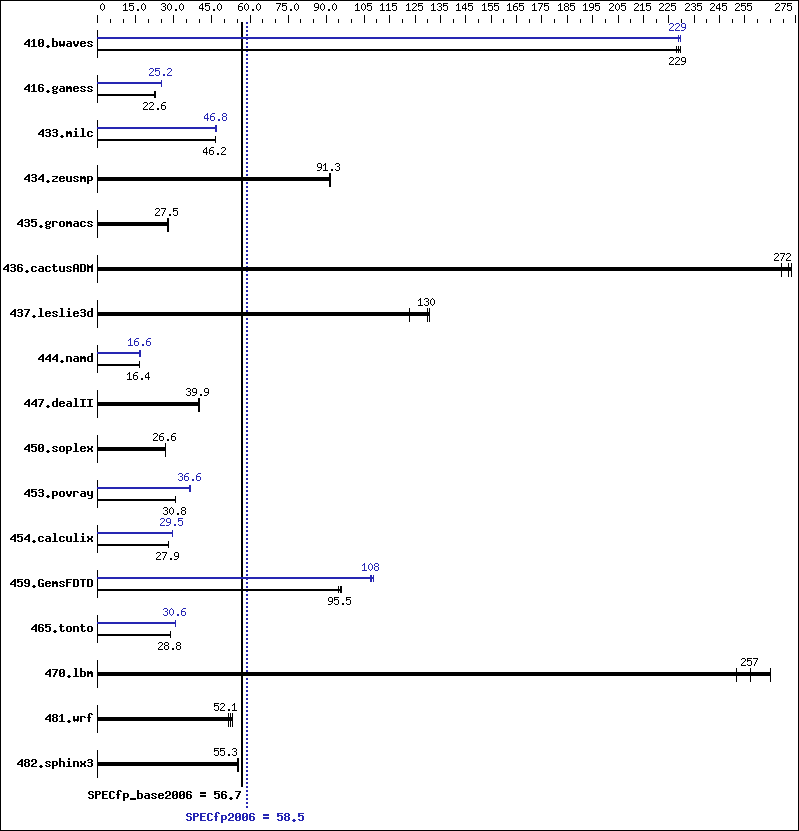

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	59.2	229	59.4	229	59.6	228	59.4	229	59.2	229	59.4	229
416.gamess	873	22.4	867	22.6	867	22.6	776	25.2	778	25.2	778	25.2
433.milc	199	46.2	199	46.2	199	46.2	196	46.8	196	46.8	197	46.5
434.zeusmp	99.8	91.1	99.2	91.7	99.6	91.3	99.8	91.1	99.2	91.7	99.6	91.3
435.gromacs	258	27.7	260	27.5	260	27.4	258	27.7	260	27.5	260	27.4
436.cactusADM	43.9	272	44.3	270	43.7	273	43.9	272	44.3	270	43.7	273
437.leslie3d	76.4	123	72.4	130	71.8	131	76.4	123	72.4	130	71.8	131
444.namd	490	16.4	490	16.4	490	16.4	481	16.7	482	16.6	482	16.6
447.dealII	287	39.9	287	39.9	288	39.7	287	39.9	287	39.9	288	39.7
450.soplex	314	26.6	312	26.7	313	26.6	314	26.6	312	26.7	313	26.6
453.povray	173	30.8	174	30.6	173	30.8	145	36.6	145	36.6	147	36.1
454.calculix	296	27.9	297	27.7	296	27.9	280	29.4	279	29.5	280	29.5
459.GemsFDTD	112	95.0	111	95.5	110	96.2	98.4	108	98.6	108	97.8	108
465.tonto	341	28.8	344	28.6	341	28.8	322	30.5	322	30.6	322	30.6
470.lbm	51.8	265	54.6	252	53.4	257	51.8	265	54.6	252	53.4	257
481.wrf	216	51.6	214	52.1	211	53.0	216	51.6	214	52.1	211	53.0
482.sphinx3	352	55.3	352	55.3	354	55.0	352	55.3	352	55.3	354	55.0

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

 BIOS Settings:
  Energy Performance: Performance

General Notes

Environment variables set by runspec before the start of the run:
KMP_AFFINITY = "granularity=fine,scatter"
LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64"
OMP_NUM_THREADS = "8"

 The Express5800/R120d-1M and
 the Express5800/R120d-2M models are electronically equivalent.
 The results have been measured on the Express5800/R120d-1M model.

 Added glibc-static-2.12-1.47.el6.x86_64.rpm
 to enable static linking

 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled

Base Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32
447.dealII:	basepeak = yes
450.soplex:	basepeak = yes
453.povray:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-xAVX -ipo -O3 -no-prec-div -opt-prefetch -parallel -static
416.gamess:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel
465.tonto:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4

Benchmarks using both Fortran and C:

435.gromacs:	basepeak = yes
436.cactusADM:	basepeak = yes
454.calculix:	-xAVX -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias
481.wrf:	basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-linux64.20111122.html,
http://www.spec.org/cpu2006/flags/NEC-Platform-Settings-V1.2-R120d-RevA.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-linux64.20111122.xml,
http://www.spec.org/cpu2006/flags/NEC-Platform-Settings-V1.2-R120d-RevA.xml.
