SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro (Test Sponsor: Advanced Micro Devices)

Supermicro A+ Server 1022G-NTF,
AMD Opteron 6278

SPECfp®2006 = 45.2

CPU2006 license: 49 Test date: Mar-2012
Test sponsor: Advanced Micro Devices Hardware Availability: Jun-2012
Tested by: Advanced Micro Devices Software Availability: Dec-2011

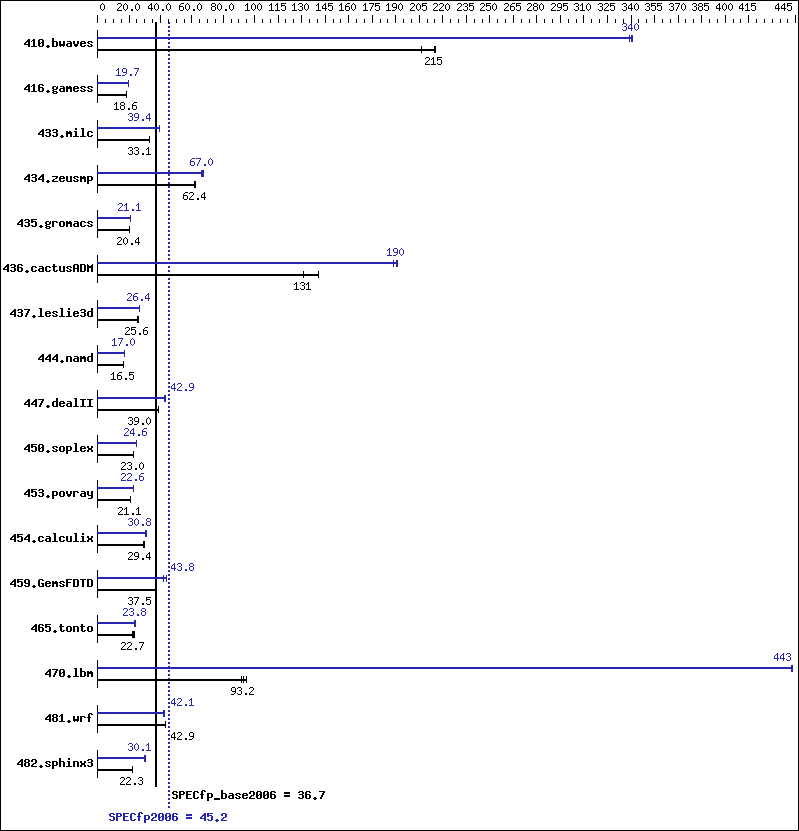

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6278
CPU Characteristics: AMD Turbo CORE technology up to 3.30 GHz
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 32 cores, 2 chips, 16 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 512 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory: 64 GB (8 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 500 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.1,
Kernel 2.6.32-131.0.15.el6.x86_64
Compiler: C/C++/Fortran: Version 4.2.5.2 of x86 Open64
Compiler Suite (from AMD)
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 63.2 215   65.8 206   63.3 215   39.9 341   39.9 340   40.1 339
416.gamess 1053   18.6 1059   18.5 1052   18.6 990   19.8 997   19.6 992   19.7
433.milc 277   33.1 277   33.1 277   33.1 233   39.4 233   39.5 233   39.4
434.zeusmp 147   61.8 146   62.5 146   62.4 138   66.1 135   67.3 136   67.0
435.gromacs 351   20.4 350   20.4 357   20.0 338   21.1 338   21.1 338   21.1
436.cactusADM 91.2 131   91.0 131   85.1 140   63.3 189   62.6 191   62.8 190
437.leslie3d 365   25.8 367   25.6 367   25.6 356   26.4 356   26.4 355   26.5
444.namd 485   16.5 485   16.5 485   16.5 473   16.9 473   17.0 473   17.0
447.dealII 294   39.0 295   38.8 294   39.0 267   42.9 267   42.8 267   42.9
450.soplex 362   23.0 362   23.0 362   23.0 338   24.6 338   24.7 339   24.6
453.povray 252   21.1 253   21.1 252   21.1 235   22.6 236   22.5 235   22.6
454.calculix 284   29.0 280   29.5 281   29.4 269   30.7 268   30.8 268   30.8
459.GemsFDTD 284   37.3 283   37.5 282   37.7 252   42.1 241   44.0 242   43.8
465.tonto 433   22.7 439   22.4 425   23.2 421   23.4 413   23.8 413   23.8
470.lbm 145   94.5 150   91.8 147   93.2 31.0 443   31.0 443   31.1 442
481.wrf 260   42.9 260   42.9 260   42.9 268   41.7 262   42.7 265   42.1
482.sphinx3 876   22.3 874   22.3 874   22.3 649   30.0 647   30.1 646   30.2

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst
Set kernel/randomize_va_space=0 in /etc/sysctl.conf
cpuspeed stop was used to set the CPU frequency to its maximum.

Set vm/nr_hugepages=4000 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "4000"
LD_LIBRARY_PATH = "/root/work/cpu2006v1.2/amd1104-speed-libs-revA/32:/root/work/cpu2006v1.2/amd1104-speed-libs-revA/64"
O64_OMP_AFFINITY_MAP = "0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31"
O64_OMP_SPIN_COUNT = "800000"
O64_OMP_SPIN_USER_LOCK = "true"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6220 chips + 64GB Memory using RHEL 6.1

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -march=bdver1   -Ofast   -HP:bdt=2m:heap=2m   -apo   -mso   -OPT:alias=restricted   -OPT:malloc_alg=2   -LNO:parallel_overhead=10000

C++ benchmarks:

 -march=bdver1   -Ofast   -static   -CG:load_exe=0   -CG:p2align=0   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m   -D__OPEN64_FAST_SET

Fortran benchmarks:

 -march=bdver1   -Ofast   -LNO:blocking=off   -LNO:fusion_peeling_limit=0   -LNO:parallel_overhead=10000   -OPT:rsqrt=2   -OPT:unroll_size=256   -HP:bdt=2m:heap=2m   -apo

Benchmarks using both Fortran and C:

 -march=bdver1   -Ofast   -HP:bdt=2m:heap=2m   -apo   -mso   -OPT:alias=restricted   -OPT:malloc_alg=2   -LNO:parallel_overhead=10000   -LNO:blocking=off   -LNO:fusion_peeling_limit=0   -OPT:rsqrt=2   -OPT:unroll_size=256

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -march=bdver1   -Ofast   -CG:movnti=1   -CG:locs_best=on   -HP:bdt=2m:heap=2m   -IPA:plimit=7000   -IPA:callee_limit=1200   -OPT:struct_array_copy=2   -OPT:alias=field_sensitive
470.lbm:  -march=bdver1   -Ofast   -mso   -apo   -CG:sse_cse_regs=0   -LNO:prefetch_ahead=4   -CG:locs_shallow_depth=1   -CG:cmp_peep=on   -CG:compute_to=on   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -OPT:alias=restricted   -m3dnow   -IPA:inline=off
482.sphinx3:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:loop_model_simd=on   -LNO:simd_rm_unity_remainder=on   -OPT:malloc_alg=2   -CG:cmp_peep=on   -CG:local_sched_alg=2   -CG:use_incdec=off   -INLINE:aggressive=on   -WOPT:sib=on   -HP

C++ benchmarks:

444.namd:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:ignore_feedback=off   -CG:local_sched_alg=2   -CG:load_exe=0   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m
447.dealII:  -march=bdver1   -Ofast   -LNO:simd=0   -D__OPEN64_FAST_SET   -static   -INLINE:aggressive=on   -OPT:alias=disjoint   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m
450.soplex:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -INLINE:aggressive=on   -OPT:RO=1   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -fno-exceptions   -CG:p2align=0   -m32   -HP:bdt=2m:heap=2m   -WOPT:sib=on
453.povray:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:pre_local_sched=off   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m   -OPT:transform=2   -OPT:alias=disjoint   -WOPT:aggcm=0

Fortran benchmarks:

410.bwaves:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -apo   -OPT:Ofast   -OPT:treeheight=on   -LNO:blocking=off   -LNO:prefetch=2   -LNO:pf2=0   -LNO:prefetch_ahead=3   -LNO:ignore_feedback=off   -LNO:fu=4   -LNO:loop_model_simd=on   -LNO:simd_rm_unity_remainder=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -CG:cmp_peep=on   -CG:p2align=0
416.gamess:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:fu=6   -LNO:blocking=0   -LNO:simd=0   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -OPT:unroll_times_max=2   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -WOPT:sib=on
434.zeusmp:  -march=bdver1   -Ofast   -apo   -LNO:blocking=off   -LNO:interchange=off   -LNO:fusion_peeling_limit=0   -OPT:treeheight=on   -OPT:unroll_size=256   -CG:cmp_peep=on   -CG:compute_to=on   -GRA:prioritize_by_density=on   -HP:bdt=2m:heap=2m
437.leslie3d:  -march=bdver1   -Ofast   -LNO:prefetch=2   -LNO:blocking=off   -CG:interior_ptrs=on   -OPT:unroll_size=256   -GRA:prioritize_by_density=on   -HP:bdt=2m:heap=2m
459.GemsFDTD:  -march=bdver1   -Ofast   -OPT:unroll_size=0   -LNO:fission=2   -CG:load_exe=0   -CG:local_sched_alg=2   -HP   -apo
465.tonto:  -march=bdver1   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -CG:local_sched_alg=1   -IPA:plimit=525   -HP

Benchmarks using both Fortran and C:

435.gromacs:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m
436.cactusADM:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:prefetch=2   -HP:bdt=2m:heap=2m   -CG:locs_shallow_depth=1   -CG:load_exe=0   -WOPT:sib=on   -apo
454.calculix:  -march=bdver1   -Ofast   -OPT:unroll_size=256   -GRA:optimize_boundary=on   -HP:bdt=2m:heap=2m
481.wrf:  -march=bdver1   -Ofast   -OPT:unroll_size=256   -LNO:blocking=off   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -CG:load_exe=1   -HP   -WOPT:sib=on   -apo

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-speed-revA-I.html,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA-I.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-speed-revA-I.xml,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA-I.xml.
