| CPU2006 license: | 001176 | Test date: | Mar-2012 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Apr-2011 |
| Tested by: | Supermicro | Software Availability: | Oct-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3-1220L |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.40 GHz |
| CPU MHz: | 2200 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-10600E-9, ECC) |
| Disk Subsystem: | 1 x 500 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server Release 6.1, Kernel 2.6.32-131.0.15.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

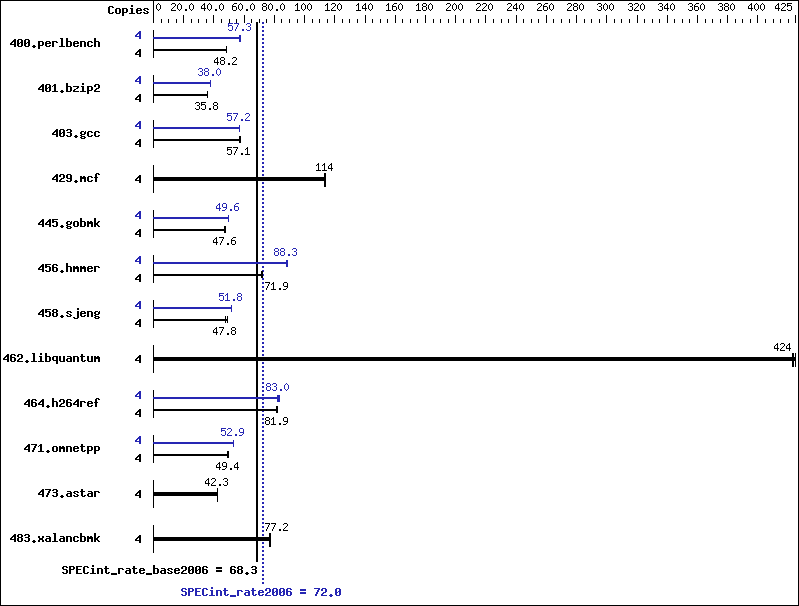

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 812 | 48.1 | 811 | 48.2 | 811 | 48.2 | 4 | 682 | 57.3 | 683 | 57.3 | 686 | 57.0 |
| 401.bzip2 | 4 | 1076 | 35.9 | 1078 | 35.8 | 1078 | 35.8 | 4 | 1023 | 37.7 | 1016 | 38.0 | 1016 | 38.0 |
| 403.gcc | 4 | 564 | 57.1 | 567 | 56.7 | 559 | 57.6 | 4 | 563 | 57.2 | 563 | 57.2 | 569 | 56.6 |
| 429.mcf | 4 | 321 | 114 | 322 | 113 | 321 | 114 | 4 | 321 | 114 | 322 | 113 | 321 | 114 |
| 445.gobmk | 4 | 881 | 47.6 | 895 | 46.9 | 876 | 47.9 | 4 | 846 | 49.6 | 851 | 49.3 | 843 | 49.8 |
| 456.hmmer | 4 | 524 | 71.2 | 519 | 71.9 | 519 | 71.9 | 4 | 424 | 88.1 | 422 | 88.5 | 423 | 88.3 |
| 458.sjeng | 4 | 992 | 48.8 | 1013 | 47.8 | 1014 | 47.7 | 4 | 935 | 51.8 | 933 | 51.9 | 934 | 51.8 |
| 462.libquantum | 4 | 196 | 423 | 196 | 424 | 195 | 425 | 4 | 196 | 423 | 196 | 424 | 195 | 425 |
| 464.h264ref | 4 | 1078 | 82.1 | 1081 | 81.9 | 1083 | 81.7 | 4 | 1077 | 82.2 | 1064 | 83.2 | 1067 | 83.0 |
| 471.omnetpp | 4 | 506 | 49.4 | 509 | 49.1 | 505 | 49.5 | 4 | 473 | 52.9 | 474 | 52.7 | 473 | 52.9 |
| 473.astar | 4 | 663 | 42.4 | 664 | 42.3 | 663 | 42.3 | 4 | 663 | 42.4 | 664 | 42.3 | 663 | 42.3 |
| 483.xalancbmk | 4 | 356 | 77.4 | 358 | 77.2 | 358 | 77.0 | 4 | 356 | 77.4 | 358 | 77.2 | 358 | 77.0 |
Submit Notes
The taskset mechanism was used to bind copies to processors. The config file option 'submit' was used to generate taskset commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Fan speed set to Full Speed in BIOS Set Up
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/usr/cpu2006/libs/32:/usr/cpu2006/libs/64" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xAVX -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
