| CPU2006 license: | 19 | Test date: | Mar-2012 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Mar-2012 |
| Tested by: | Fujitsu | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-1650 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.80 GHz |
| CPU MHz: | 3200 |
| FPU: | Integrated |
| CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 32 GB (8 x 4 GB 2Rx8 PC3-12800E-11, ECC) |
| Disk Subsystem: | 1 x SATA III, 500 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.1, 2.6.32-131.0.15.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.2.273 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi - user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap 10 (Multi-Core) |

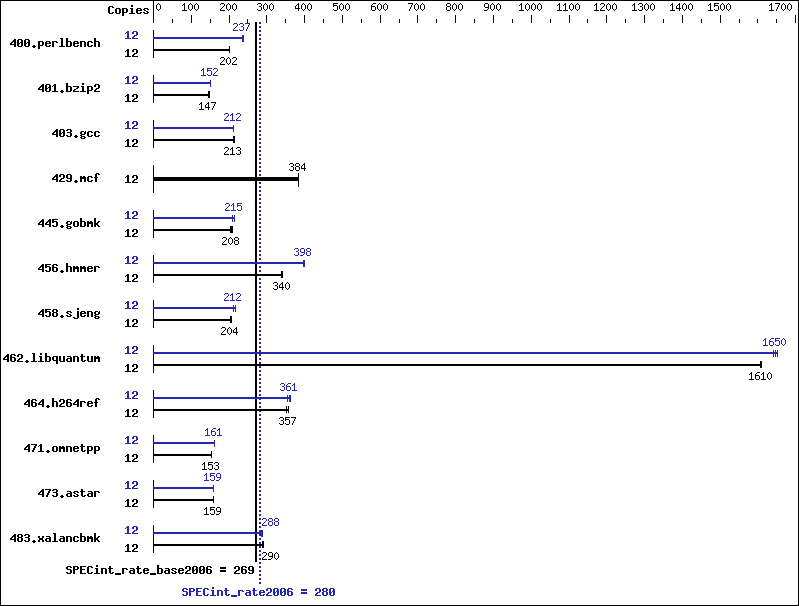

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 12 | 580 | 202 | 580 | 202 | 580 | 202 | 12 | 494 | 237 | 496 | 237 | 495 | 237 |
| 401.bzip2 | 12 | 784 | 148 | 791 | 146 | 790 | 147 | 12 | 762 | 152 | 764 | 152 | 770 | 150 |
| 403.gcc | 12 | 454 | 213 | 453 | 213 | 454 | 213 | 12 | 455 | 212 | 456 | 212 | 456 | 212 |
| 429.mcf | 12 | 285 | 384 | 284 | 385 | 285 | 384 | 12 | 285 | 384 | 284 | 385 | 285 | 384 |
| 445.gobmk | 12 | 604 | 208 | 614 | 205 | 607 | 208 | 12 | 586 | 215 | 586 | 215 | 600 | 210 |
| 456.hmmer | 12 | 329 | 340 | 330 | 339 | 328 | 341 | 12 | 281 | 398 | 281 | 399 | 282 | 397 |
| 458.sjeng | 12 | 703 | 207 | 713 | 204 | 712 | 204 | 12 | 687 | 212 | 688 | 211 | 669 | 217 |
| 462.libquantum | 12 | 155 | 1610 | 154 | 1610 | 154 | 1610 | 12 | 151 | 1650 | 151 | 1640 | 151 | 1650 |
| 464.h264ref | 12 | 744 | 357 | 754 | 352 | 743 | 357 | 12 | 736 | 361 | 731 | 363 | 749 | 354 |
| 471.omnetpp | 12 | 489 | 153 | 486 | 154 | 489 | 153 | 12 | 466 | 161 | 467 | 161 | 466 | 161 |
| 473.astar | 12 | 533 | 158 | 530 | 159 | 531 | 159 | 12 | 528 | 159 | 529 | 159 | 531 | 159 |
| 483.xalancbmk | 12 | 286 | 290 | 285 | 290 | 285 | 291 | 12 | 286 | 290 | 289 | 287 | 288 | 288 |
Submit Notes
The taskset mechanism was used to bind copies to processors. The config file option 'submit' was used to generate taskset commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS settings: Frequency Floor Override = Enabled
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/work/cpu2006/libs/32:/work/cpu2006/libs/64" Binaries compiled on a system with Red Hat Enterprise Linux Server release 6.1 (Santiago) Added glibc-static-2.12-1.25.el6.x86_64.rpm to enable static linking
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 403.gcc: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 462.libquantum: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
| 473.astar: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
| 483.xalancbmk: | Same as 473.astar |
