| CPU2006 license: | 11 | Test date: | Oct-2011 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Oct-2011 |
| Tested by: | IBM Corporation | Software Availability: | Aug-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3-1260L |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.30 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (2 x 8 GB 2Rx8 PC3-10600E-9, ECC) |
| Disk Subsystem: | 1 x 250 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server Release 6.1, Kernel 2.6.32-131.0.15.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel Compiler XE Build 20110803 |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

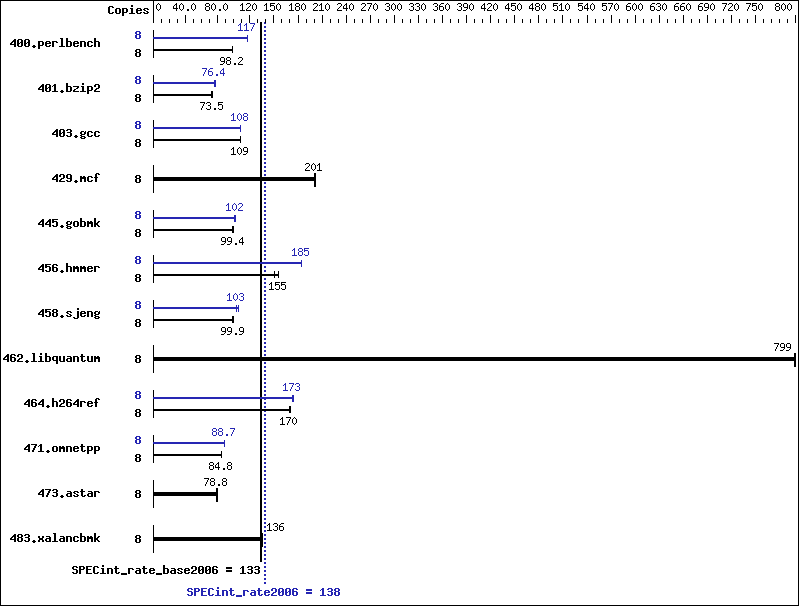

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 795 | 98.3 | 796 | 98.2 | 797 | 98.1 | 8 | 669 | 117 | 665 | 117 | 667 | 117 |
| 401.bzip2 | 8 | 1047 | 73.7 | 1071 | 72.1 | 1051 | 73.5 | 8 | 1012 | 76.3 | 1010 | 76.4 | 999 | 77.3 |
| 403.gcc | 8 | 593 | 109 | 592 | 109 | 595 | 108 | 8 | 595 | 108 | 595 | 108 | 595 | 108 |
| 429.mcf | 8 | 361 | 202 | 363 | 201 | 363 | 201 | 8 | 361 | 202 | 363 | 201 | 363 | 201 |
| 445.gobmk | 8 | 856 | 98.0 | 838 | 100 | 844 | 99.4 | 8 | 823 | 102 | 835 | 100 | 821 | 102 |
| 456.hmmer | 8 | 481 | 155 | 480 | 156 | 494 | 151 | 8 | 404 | 185 | 405 | 184 | 404 | 185 |
| 458.sjeng | 8 | 966 | 100 | 969 | 99.9 | 979 | 98.9 | 8 | 918 | 105 | 942 | 103 | 937 | 103 |
| 462.libquantum | 8 | 208 | 799 | 207 | 800 | 208 | 798 | 8 | 208 | 799 | 207 | 800 | 208 | 798 |
| 464.h264ref | 8 | 1037 | 171 | 1044 | 170 | 1043 | 170 | 8 | 1025 | 173 | 1019 | 174 | 1024 | 173 |
| 471.omnetpp | 8 | 589 | 84.8 | 593 | 84.3 | 587 | 85.2 | 8 | 562 | 89.0 | 564 | 88.7 | 568 | 88.1 |
| 473.astar | 8 | 710 | 79.1 | 713 | 78.8 | 716 | 78.4 | 8 | 710 | 79.1 | 713 | 78.8 | 716 | 78.4 |
| 483.xalancbmk | 8 | 407 | 136 | 406 | 136 | 405 | 136 | 8 | 407 | 136 | 406 | 136 | 405 | 136 |
Submit Notes
The config file option 'submit' was used. taskset was used to bind copies to the cores
Platform Notes
BIOS Settings: Turbo Mode enabled in BIOS C-State enabled in BIOS
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/root/SPECcpu12.1/smartheap:/root/SPECcpu12.1/ic12.1-libs/ia32/:/root/SPECcpu12.1/ic12.1-libs/intel64" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 with binutils-2.17.50.0.6-14.el5 Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xAVX -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
