SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

ClearCube Technology

R3040S PC Blade (Xeon E5645)

CPU2006 license: 4207 Test date: Oct-2011
Test sponsor: ClearCube Technology Hardware Availability: Jun-2011
Tested by: ClearCube Technology Software Availability: Jul-2011

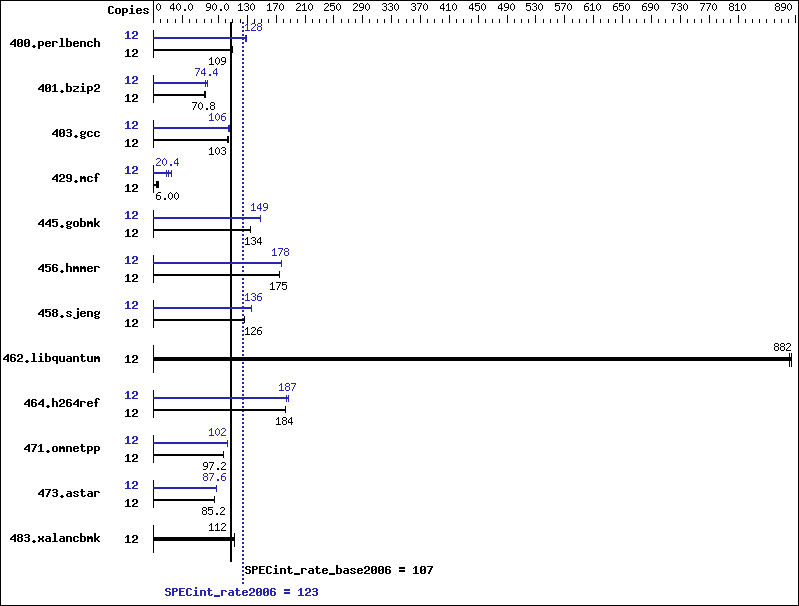

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5645
CPU Characteristics: Intel Turbo Boost Technology disabled
CPU MHz: 2268
FPU: Integrated
CPU(s) enabled: 6 cores, 1 chip, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory: 6 GB (3 x 2 GB 2Rx8 PC3-10600U-9)
Disk Subsystem: 80GB Intel SSD
Other Hardware: None
Software
Operating System: Microsoft Windows 7 Professional
6.1.7601 Service Pack 1 Build 7601
Compiler: C++: Version 12.0.3 Update 163 of Intel C++
Compiler XE for IA32 Build 20110217
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 12 1095 107    1074 109    1074 109    12 913 128   913 128   922 127
401.bzip2 12 1636 70.8  1628 70.8  1619 72.0  12 1600 72.0 1554 74.4 1550 74.4
403.gcc 12 923 104    939 103    949 102    12 915 106   930 104   918 106
429.mcf 12 18472 6.00 22922 4.80 15976 7.20 12 5971 18.0 4322 25.2 5519 20.4
445.gobmk 12 939 134    939 134    938 134    12 844 149   843 149   844 149
456.hmmer 12 639 175    639 175    640 175    12 632 178   633 178   633 178
458.sjeng 12 1149 126    1150 126    1150 126    12 1070 136   1071 136   1070 136
462.libquantum 12 282 882    281 884    282 882    12 282 882   281 884   282 882
464.h264ref 12 1447 184    1447 184    1447 184    12 1418 187   1418 187   1438 185
471.omnetpp 12 770 97.2  772 97.2  771 97.2  12 738 102   737 102   737 102
473.astar 12 986 85.2  984 85.2  984 85.2  12 963 87.6 963 87.6 962 87.6
483.xalancbmk 12 742 112    740 112    741 112    12 742 112   740 112   741 112

Submit Notes

The config file option 'submit' was used.

Platform Notes

 Sysinfo program C:\cpu2006/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on 3040SPEC Tue Oct  4 13:56:16 2011

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Professional
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: Intel
 System Model  : Thurley
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 44 Stepping 2 GenuineIntel ~2268 Mhz
 BIOS Version  : American Megatrends Inc. 080016 , 7/26/2010
 Total Physical Memory: 6,135 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 1536
 L3CacheSize   : 12288
 MaxClockSpeed : 2268
 Name          : Intel(R) Xeon(R) CPU E5645 @ 2.40GHz
 NumberOfCores : 6
 NumberOfLogicalProcessors: 12

 (End of data from sysinfo program)

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000

C++ benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F512000000

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F512000000    -link /FORCE:MULTIPLE
401.bzip2:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   /F512000000
403.gcc:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
429.mcf:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
445.gobmk:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   /F512000000
456.hmmer:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   /F512000000
458.sjeng:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   /F512000000
462.libquantum:  basepeak = yes
464.h264ref:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   /F512000000

C++ benchmarks:

471.omnetpp:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   /F512000000
473.astar:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=routine   /F512000000
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12-win32-revD.html,
http://www.spec.org/cpu2006/flags/ClearCube-Platform-3040-revA.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12-win32-revD.xml,
http://www.spec.org/cpu2006/flags/ClearCube-Platform-3040-revA.xml.
