| CPU2006 license: | 55 | Test date: | Jul-2011 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2010 |
| Tested by: | Dell Inc. | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5650 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.06 GHz |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB 10000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

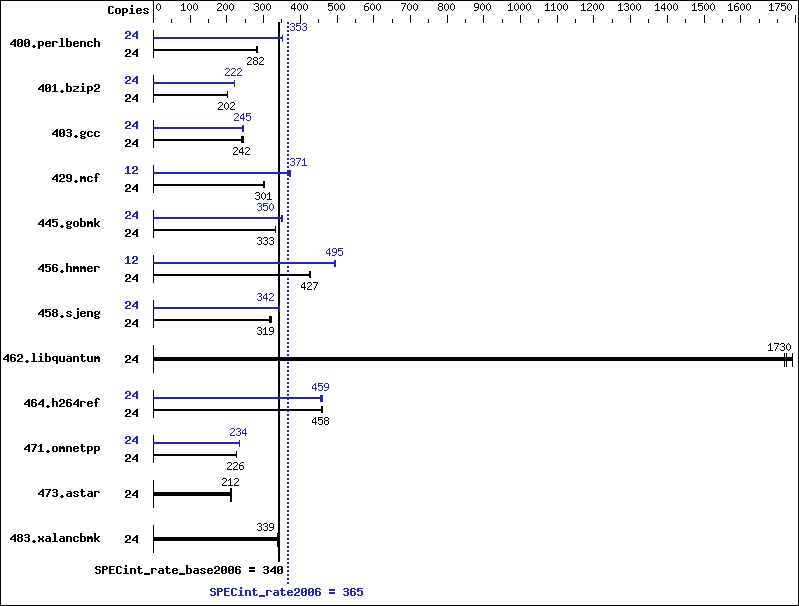

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 833 | 282 | 832 | 282 | 828 | 283 | 24 | 666 | 352 | 665 | 353 | 665 | 353 |
| 401.bzip2 | 24 | 1142 | 203 | 1144 | 202 | 1148 | 202 | 24 | 1044 | 222 | 1052 | 220 | 1045 | 222 |
| 403.gcc | 24 | 790 | 245 | 797 | 242 | 805 | 240 | 24 | 789 | 245 | 785 | 246 | 796 | 243 |
| 429.mcf | 24 | 731 | 299 | 727 | 301 | 724 | 302 | 12 | 296 | 370 | 294 | 373 | 295 | 371 |
| 445.gobmk | 24 | 758 | 332 | 757 | 333 | 756 | 333 | 24 | 721 | 349 | 718 | 351 | 719 | 350 |
| 456.hmmer | 24 | 525 | 427 | 527 | 425 | 522 | 429 | 12 | 226 | 494 | 226 | 496 | 226 | 495 |
| 458.sjeng | 24 | 916 | 317 | 907 | 320 | 911 | 319 | 24 | 849 | 342 | 849 | 342 | 848 | 342 |
| 462.libquantum | 24 | 286 | 1740 | 288 | 1730 | 289 | 1720 | 24 | 286 | 1740 | 288 | 1730 | 289 | 1720 |
| 464.h264ref | 24 | 1151 | 462 | 1163 | 457 | 1159 | 458 | 24 | 1156 | 460 | 1166 | 456 | 1157 | 459 |
| 471.omnetpp | 24 | 664 | 226 | 661 | 227 | 663 | 226 | 24 | 640 | 234 | 640 | 234 | 640 | 234 |
| 473.astar | 24 | 799 | 211 | 793 | 212 | 794 | 212 | 24 | 799 | 211 | 793 | 212 | 794 | 212 |
| 483.xalancbmk | 24 | 489 | 339 | 490 | 338 | 488 | 339 | 24 | 489 | 339 | 490 | 338 | 488 | 339 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 10800 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller) Data Reuse = Disabled (Default = Enabled)
General Notes
Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
