SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

ASUSTeK Computer Inc. (Test Sponsor: Intel Corporation)

ASUSTek M4A89GTD PRO/USB3 (Phenom II X6 1075T)

CPU2006 license: 13 Test date: Jul-2011
Test sponsor: Intel Corporation Hardware Availability: Feb-2011
Tested by: Intel Corporation Software Availability: Apr-2011

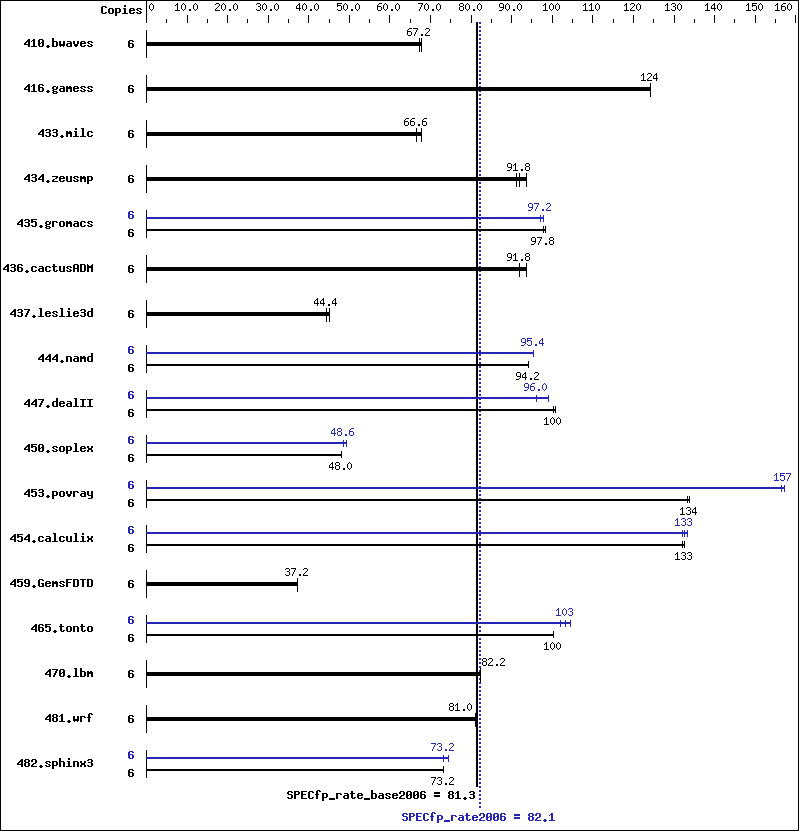

Benchmark results graph
Hardware
CPU Name: AMD Phenom II X6 1075T
CPU Characteristics: AMD Turbo CORE technology up to 3.5 GHz
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 6 cores, 1 chip, 6 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 8 GB (2 x 4 GB 2Rx4 PC3-10600U-9)
Disk Subsystem: 1 TB Seagate SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Windows 7 Ultimate (64-bit)
Compiler: Intel C++ Compiler XE for Intel 64
Version 12.0.3.176 Build 20110309
Intel Visual Fortran Compiler XE for Intel 64
Version 12.0.3.176 Build 20110309
Microsoft Visual Studio 2008 Professional SP1
(for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 9.01 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 6 1206 67.8 1214 67.2 1218 67.2 6 1206 67.8 1214 67.2 1218 67.2
416.gamess 6 945 124   945 124   946 124   6 945 124   945 124   946 124
433.milc 6 811 67.8 825 66.6 827 66.6 6 811 67.8 825 66.6 827 66.6
434.zeusmp 6 582 93.6 598 91.2 596 91.8 6 582 93.6 598 91.2 596 91.8
435.gromacs 6 435 98.4 439 97.8 439 97.8 6 440 97.2 439 97.2 437 97.8
436.cactusADM 6 768 93.6 781 91.8 782 91.8 6 768 93.6 781 91.8 782 91.8
437.leslie3d 6 1251 45.0 1269 44.4 1271 44.4 6 1251 45.0 1269 44.4 1271 44.4
444.namd 6 510 94.2 511 94.2 511 94.2 6 505 95.4 505 95.4 504 95.4
447.dealII 6 687 100   683 100   682 101   6 713 96.0 716 96.0 692 99.0
450.soplex 6 1043 48.0 1046 48.0 1045 48.0 6 1032 48.6 1029 48.6 1016 49.2
453.povray 6 239 134   240 133   239 134   6 203 157   204 157   203 157
454.calculix 6 374 133   374 133   375 132   6 376 132   374 133   372 133
459.GemsFDTD 6 1715 37.2 1717 37.2 1718 37.2 6 1715 37.2 1717 37.2 1718 37.2
465.tonto 6 591 100   588 100   588 100   6 578 102   572 103   566 104
470.lbm 6 1002 82.2 1003 82.2 1003 82.2 6 1002 82.2 1003 82.2 1003 82.2
481.wrf 6 824 81.6 828 81.0 828 81.0 6 824 81.6 828 81.0 828 81.0
482.sphinx3 6 1593 73.2 1594 73.2 1594 73.2 6 1597 73.2 1597 73.2 1578 74.4

Submit Notes

The config file option 'submit' was used.
 The start command with the /affinity switch was used to bind processes to cores

General Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   -names:lowercase
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -names:lowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -names:lowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 /arch:SSE3   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

 /arch:SSE3   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qcxx-features   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 /arch:SSE3   -Qipo   -O3   -Qprec-div-   -Qansi-alias   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 /arch:SSE3   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  /arch:SSE3   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qscalar-rep-   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
450.soplex:  /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
453.povray:  /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  /arch:SSE3   -Qipo   -O3   -Qprec-div-   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revC.html,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings.20110719.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revC.xml,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings.20110719.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 22:28:31 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 20 September 2011.
