SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

ASUSTeK Computer Inc. (Test Sponsor: Intel Corporation)

ASUSTek M4A89GTD PRO/USB3 (Athlon II X4 635)

CPU2006 license: 13 Test date: Jun-2011
Test sponsor: Intel Corporation Hardware Availability: Feb-2011
Tested by: Intel Corporation Software Availability: Apr-2011

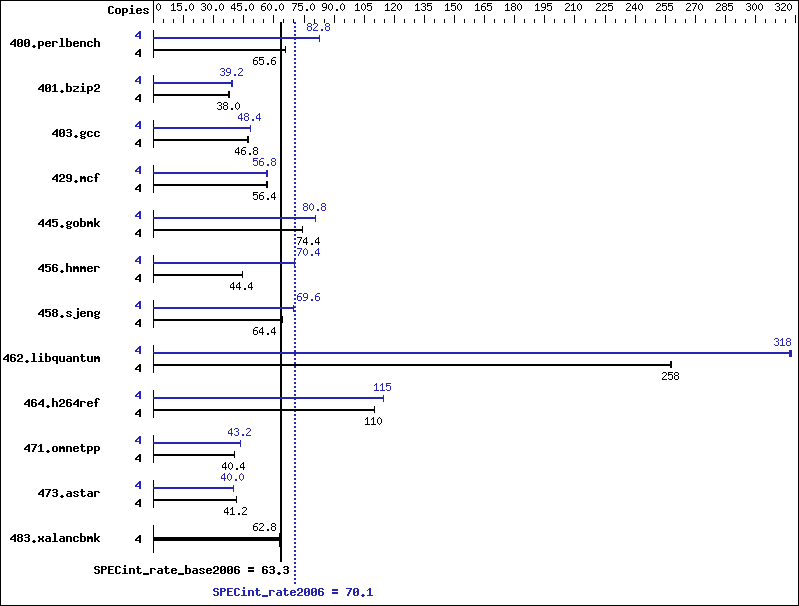

Benchmark results graph
Hardware
CPU Name: AMD Athlon II X4 635
CPU Characteristics:
CPU MHz: 2900
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 4 GB (2 x 2 GB 2Rx4 PC3-10600U-9)
Disk Subsystem: 1 TB Seagate SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Windows 7 Ultimate (64-bit)
Compiler: Intel C++ Compiler XE for IA32 and Intel 64
Version 12.0.3.176 Build 20110309
Microsoft Visual Studio 2008 Professional SP1
(for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 9.01 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 597 65.6 597 65.6 597 65.6 4 473 82.8 472 82.8 473 82.8
401.bzip2 4 1028 37.6 1017 38.0 1019 38.0 4 982 39.2 986 39.2 997 38.8
403.gcc 4 687 46.8 685 47.2 687 46.8 4 668 48.4 664 48.4 667 48.4
429.mcf 4 644 56.8 645 56.4 645 56.4 4 643 56.8 646 56.4 643 56.8
445.gobmk 4 563 74.4 563 74.4 563 74.4 4 519 80.8 519 80.8 519 80.8
456.hmmer 4 838 44.4 837 44.4 837 44.4 4 530 70.4 530 70.4 530 70.4
458.sjeng 4 753 64.4 753 64.4 753 64.4 4 695 69.6 696 69.6 696 69.6
462.libquantum 4 321 258   322 258   321 258   4 262 317   261 318   261 318
464.h264ref 4 804 110   804 110   804 110   4 770 115   771 115   771 115
471.omnetpp 4 619 40.4 619 40.4 619 40.4 4 580 43.2 580 43.2 580 43.2
473.astar 4 683 41.2 683 41.2 682 41.2 4 704 40.0 704 40.0 704 40.0
483.xalancbmk 4 439 62.8 439 62.8 439 62.8 4 439 62.8 439 62.8 439 62.8

Submit Notes

The config file option 'submit' was used.
 The start command with the /affinity switch was used to bind processes to cores

General Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 /arch:SSE3   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000

C++ benchmarks:

 /arch:SSE3   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icl -Qvc9   -Qstd=c99
456.hmmer:  C:/Program Files (x86)/Intel/ComposerXE-2011/bin/intel64/icl.exe
458.sjeng:  C:/Program Files (x86)/Intel/ComposerXE-2011/bin/intel64/icl.exe
462.libquantum:  C:/Program Files (x86)/Intel/ComposerXE-2011/bin/intel64/icl.exe   -Qstd=c99

C++ benchmarks (except as noted below):

 icl -Qvc9
473.astar:  C:/Program Files (x86)/Intel/ComposerXE-2011/bin/intel64/icl.exe

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
456.hmmer:  -DSPEC_CPU_P64
458.sjeng:  -DSPEC_CPU_P64
462.libquantum:  -DSPEC_CPU_P64
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES
473.astar:  -DSPEC_CPU_P64
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
401.bzip2:  /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   /F512000000
403.gcc:  /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
429.mcf:  /arch:SSE3   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
445.gobmk:  /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   /F512000000
456.hmmer:  -Qauto-ilp32   /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
458.sjeng:  -Qauto-ilp32   /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   /F512000000
462.libquantum:  -Qauto-ilp32   /arch:SSE3   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
464.h264ref:  /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   /F512000000

C++ benchmarks:

471.omnetpp:  /arch:SSE3(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
473.astar:  -Qauto-ilp32   /arch:SSE3   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca
456.hmmer:  -link -LIBPATH:C:/Program Files (x86)/Intel/ComposerXE-2011/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64
458.sjeng:  -link -LIBPATH:C:/Program Files (x86)/Intel/ComposerXE-2011/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64
462.libquantum:  -link -LIBPATH:C:/Program Files (x86)/Intel/ComposerXE-2011/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64

C++ benchmarks:

473.astar:  -link -LIBPATH:C:/Program Files (x86)/Intel/ComposerXE-2011/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12-win32-revC.html,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings.20110719.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12-win32-revC.xml,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings.20110719.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 22:24:54 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 20 September 2011.
