| CPU2006 license: | 11 | Test date: | May-2011 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2011 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5649 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.93 GHz |
| CPU MHz: | 2533 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx8 PC3-10600R-9, ECC) |
| Disk Subsystem: | 2 x 50 GB SATA, SSD, RAID 0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

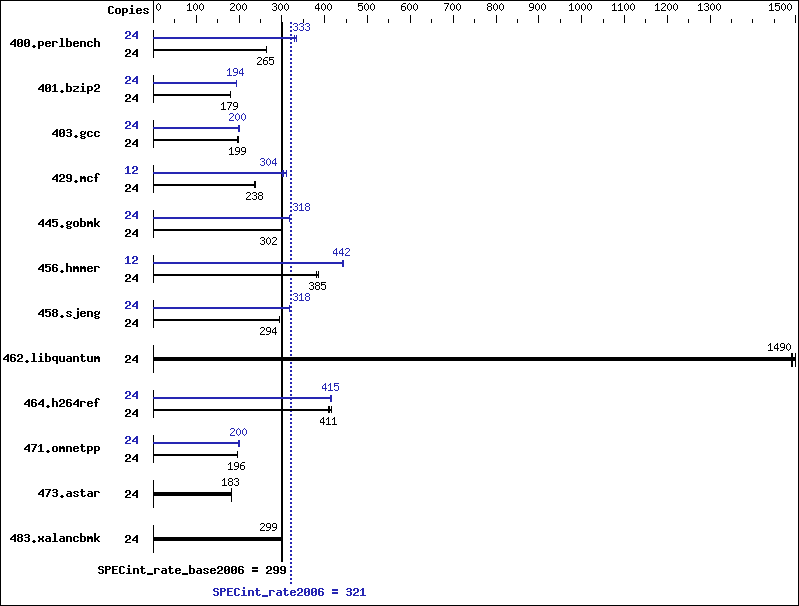

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 890 | 263 | 886 | 265 | 886 | 265 | 24 | 712 | 330 | 703 | 333 | 701 | 335 |
| 401.bzip2 | 24 | 1292 | 179 | 1296 | 179 | 1293 | 179 | 24 | 1193 | 194 | 1193 | 194 | 1191 | 194 |
| 403.gcc | 24 | 973 | 199 | 971 | 199 | 984 | 196 | 24 | 966 | 200 | 974 | 198 | 968 | 200 |
| 429.mcf | 24 | 927 | 236 | 920 | 238 | 919 | 238 | 12 | 363 | 302 | 360 | 304 | 352 | 311 |
| 445.gobmk | 24 | 835 | 302 | 836 | 301 | 835 | 302 | 24 | 792 | 318 | 790 | 319 | 791 | 318 |
| 456.hmmer | 24 | 581 | 385 | 587 | 382 | 581 | 386 | 12 | 254 | 441 | 253 | 442 | 252 | 444 |
| 458.sjeng | 24 | 990 | 293 | 988 | 294 | 988 | 294 | 24 | 913 | 318 | 913 | 318 | 912 | 318 |
| 462.libquantum | 24 | 332 | 1500 | 333 | 1490 | 334 | 1490 | 24 | 332 | 1500 | 333 | 1490 | 334 | 1490 |
| 464.h264ref | 24 | 1291 | 411 | 1301 | 408 | 1277 | 416 | 24 | 1281 | 415 | 1281 | 415 | 1284 | 413 |
| 471.omnetpp | 24 | 766 | 196 | 768 | 195 | 765 | 196 | 24 | 748 | 200 | 751 | 200 | 750 | 200 |
| 473.astar | 24 | 920 | 183 | 919 | 183 | 920 | 183 | 24 | 920 | 183 | 919 | 183 | 920 | 183 |
| 483.xalancbmk | 24 | 555 | 298 | 554 | 299 | 554 | 299 | 24 | 555 | 298 | 554 | 299 | 554 | 299 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited 'nodev /mnt/hugepages hugetlbfs defaults 0 0' added to /etc/fstab echo 10800 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Load Default BIOS Settings and then change the following: Turbo Mode enabled Turbo Boost set to Traditional Power C-states disabled Demand Scrub disabled
General Notes
Binaries compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
