| CPU2006 license: | 55 | Test date: | Jun-2011 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2010 |
| Tested by: | Dell Inc. | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5620 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.67 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (6 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

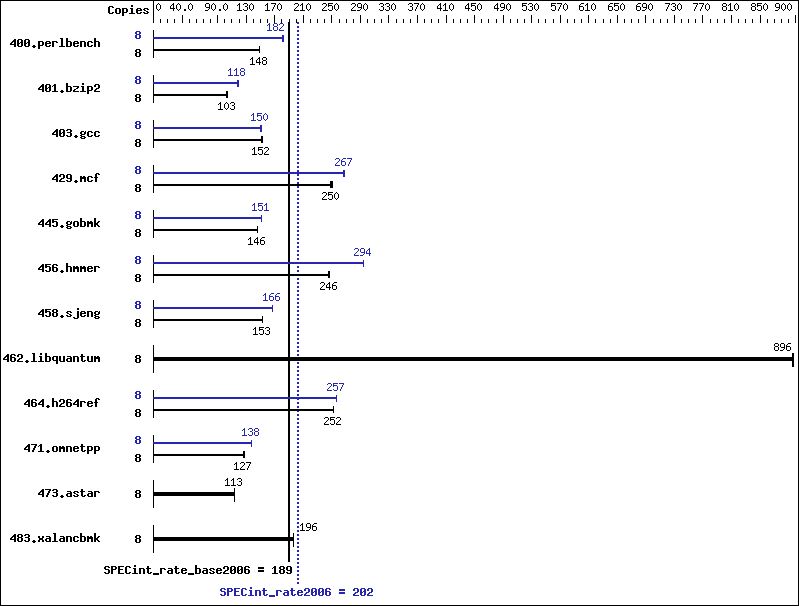

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 528 | 148 | 527 | 148 | 525 | 149 | 8 | 430 | 182 | 428 | 183 | 432 | 181 |
| 401.bzip2 | 8 | 748 | 103 | 750 | 103 | 748 | 103 | 8 | 653 | 118 | 652 | 118 | 656 | 118 |
| 403.gcc | 8 | 424 | 152 | 424 | 152 | 423 | 152 | 8 | 426 | 151 | 428 | 150 | 428 | 150 |
| 429.mcf | 8 | 294 | 248 | 292 | 250 | 291 | 251 | 8 | 274 | 266 | 273 | 267 | 273 | 268 |
| 445.gobmk | 8 | 575 | 146 | 575 | 146 | 574 | 146 | 8 | 556 | 151 | 557 | 151 | 556 | 151 |
| 456.hmmer | 8 | 302 | 247 | 303 | 246 | 304 | 246 | 8 | 254 | 294 | 254 | 294 | 254 | 294 |
| 458.sjeng | 8 | 632 | 153 | 632 | 153 | 632 | 153 | 8 | 581 | 166 | 581 | 167 | 582 | 166 |
| 462.libquantum | 8 | 185 | 895 | 185 | 896 | 185 | 897 | 8 | 185 | 895 | 185 | 896 | 185 | 897 |
| 464.h264ref | 8 | 702 | 252 | 701 | 253 | 702 | 252 | 8 | 689 | 257 | 689 | 257 | 689 | 257 |
| 471.omnetpp | 8 | 394 | 127 | 394 | 127 | 394 | 127 | 8 | 364 | 137 | 362 | 138 | 363 | 138 |
| 473.astar | 8 | 495 | 113 | 496 | 113 | 496 | 113 | 8 | 495 | 113 | 496 | 113 | 496 | 113 |
| 483.xalancbmk | 8 | 282 | 196 | 281 | 197 | 281 | 196 | 8 | 282 | 196 | 281 | 197 | 281 | 196 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo NNN > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller) Data Reuse = Disabled (Default = Enabled) Logical Processor = Disabled (Default = Enabled)
General Notes
Binaries were compiled on RHEL5.5 The Dell PowerEdge R410 and the Bull NovaScale R430 F2 models are electronically equivalent. The results have been measured on a Dell PowerEdge R410 model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
