SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DH67BLB3 Motherboard (Intel Core i7-2600S)

CPU2006 license: 13 Test date: Jul-2011
Test sponsor: Intel Corporation Hardware Availability: Mar-2011
Tested by: Intel Corporation Software Availability: Apr-2011

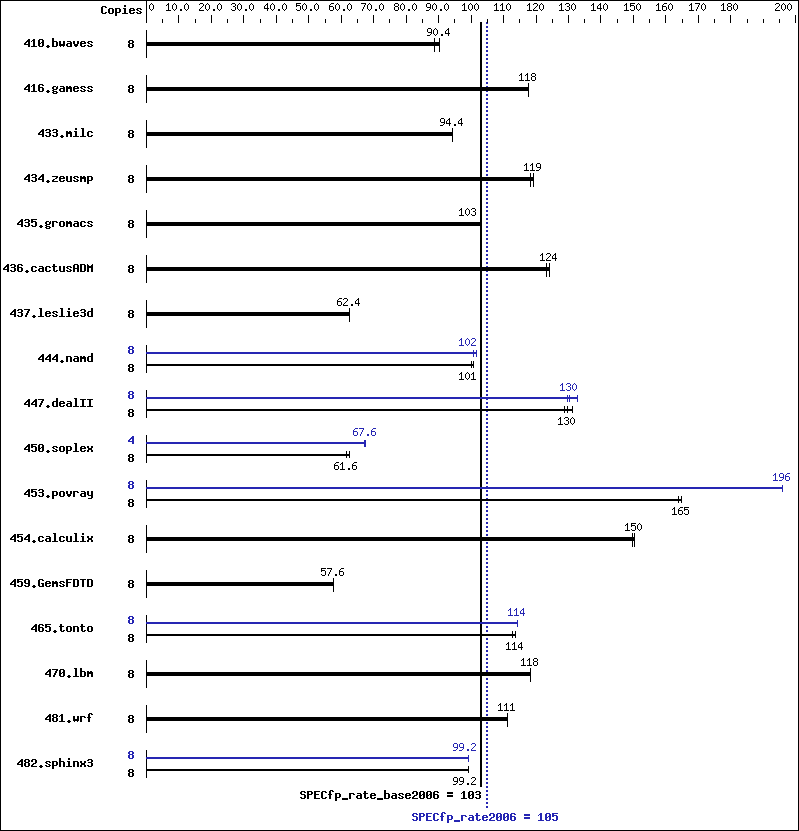

Benchmark results graph
Hardware
CPU Name: Intel Core i7-2600S
CPU Characteristics: Intel Turbo Boost Technology up to 3.8 GHz
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 8 GB (2 x 4 GB 2Rx8 PC3-10600U-9)
Disk Subsystem: Seagate 1 TB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Windows 7 Ultimate (64-bit)
Compiler: Intel C++ Compiler XE for Intel 64
Version 12.0.3.176 Build 20110309
Intel Visual Fortran Compiler XE for Intel 64
Version 12.0.3.176 Build 20110309
Microsoft Visual Studio 2008 Professional SP1
(for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 9.01 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1220 88.8 1207 90.4 1208 90.4 8 1220 88.8 1207 90.4 1208 90.4
416.gamess 8 1334 118   1335 118   1335 118   8 1334 118   1335 118   1335 118
433.milc 8 778 94.4 778 94.4 778 94.4 8 778 94.4 778 94.4 778 94.4
434.zeusmp 8 613 118   609 119   609 119   8 613 118   609 119   609 119
435.gromacs 8 554 103   554 103   554 103   8 554 103   554 103   554 103
436.cactusADM 8 773 124   773 124   774 123   8 773 124   773 124   774 123
437.leslie3d 8 1211 62.4 1211 62.4 1210 62.4 8 1211 62.4 1211 62.4 1210 62.4
444.namd 8 639 101   640 100   638 101   8 633 102   634 101   633 102
447.dealII 8 711 129   699 131   707 130   8 706 130   690 133   703 130
450.soplex 8 1080 61.6 1076 62.4 1089 61.6 4 495 67.6 494 67.6 496 67.2
453.povray 8 259 164   258 165   258 165   8 217 196   217 196   217 196
454.calculix 8 439 150   440 150   439 150   8 439 150   440 150   439 150
459.GemsFDTD 8 1474 57.6 1474 57.6 1474 57.6 8 1474 57.6 1474 57.6 1474 57.6
465.tonto 8 695 114   696 113   695 114   8 686 114   688 114   689 114
470.lbm 8 927 118   927 118   927 118   8 927 118   927 118   927 118
481.wrf 8 803 111   802 111   804 111   8 803 111   802 111   804 111
482.sphinx3 8 1573 99.2 1576 99.2 1576 99.2 8 1569 99.2 1566 99.2 1571 99.2

Submit Notes

The config file option 'submit' was used.
 The start command with the /affinity switch was used to bind processes to cores

General Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply\

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   -names:lowercase
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   /names:lowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   /names:lowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qcxx-features   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qansi-alias   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  -QxAVX   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qscalar-rep-   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
450.soplex:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
453.povray:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revB.20110808.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revB.20110808.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Thu Jul 24 00:09:52 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 2 August 2011.
