SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro (Test Sponsor: Advanced Micro Devices)

Supermicro A+ Server 1022G-NTF,
AMD Opteron 6176

CPU2006 license: 49 Test date: Sep-2010
Test sponsor: Advanced Micro Devices Hardware Availability: Feb-2011
Tested by: Advanced Micro Devices Software Availability: Jul-2010

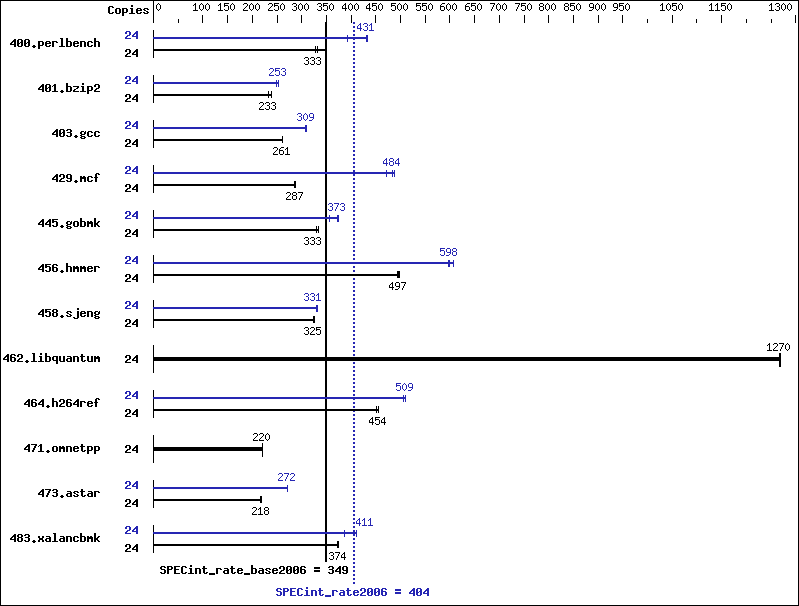

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6176
CPU Characteristics:
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 24 cores, 2 chips, 12 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory: 64 GB (16 x 4 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem: 1 x 250 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.4,
Advanced Platform with patch RHSA-2009:1670,
Kernel 2.6.18-164.9.1.el5
Compiler: x86 Open64 4.2.4 Compiler Suite (from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 8.1 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 24 674 348 714 329 704 333 24 596 393 545 431 542 433
401.bzip2 24 969 239 993 233 994 233 24 928 250 912 254 914 253
403.gcc 24 742 261 742 260 741 261 24 627 308 624 309 625 309
429.mcf 24 769 285 763 287 764 287 24 449 488 452 484 465 471
445.gobmk 24 755 333 761 331 753 334 24 673 374 705 357 676 373
456.hmmer 24 454 493 449 498 451 497 24 375 597 374 598 369 607
458.sjeng 24 894 325 894 325 892 325 24 877 331 878 331 879 330
462.libquantum 24 392 1270 392 1270 392 1270 24 392 1270 392 1270 392 1270
464.h264ref 24 1175 452 1166 455 1169 454 24 1041 510 1042 509 1050 506
471.omnetpp 24 682 220 681 220 683 220 24 682 220 681 220 683 220
473.astar 24 777 217 773 218 774 218 24 621 271 621 272 619 272
483.xalancbmk 24 443 374 444 373 442 375 24 427 387 402 411 403 411

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=10800 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "450"
LD_LIBRARY_PATH = "/root/work/cpu2006/amd1002mc-rate-libs-revC/64:/root/work/cpu2006/amd1002mc-rate-libs-revC/32"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on SLES 10 SP2 with binutils 2.18

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -march=barcelona   -mso   -Ofast   -CG:local_sched_alg=1   -INLINE:aggressive=on   -IPA:plimit=8000   -IPA:small_pu=100   -HP:bdt=2m:heap=2m

C++ benchmarks:

 -march=barcelona   -mso   -Ofast   -m32   -INLINE:aggressive=on   -CG:cmp_peep=on   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -IPA:plimit=20000   -LNO:opt=0   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -WOPT:if_conv=0   -CG:local_sched_alg=1   -CG:unroll_fb_req=on   -HP:bdt=2m:heap=2m
401.bzip2:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -OPT:goto=off   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m
403.gcc:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:trip_count=256   -LNO:prefetch_ahead=10   -CG:cmp_peep=on   -m32   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -IPA:small_pu=200
429.mcf:  -march=barcelona   -mso   -O3   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -GRA:prioritize_by_density=on   -m32   -HP:bdt=2m:heap=2m
445.gobmk:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=restrict   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -ipa   -IPA:plimit=750   -IPA:min_hotness=300   -IPA:pu_reorder=1   -LNO:prefetch=1   -LNO:ignore_feedback=off   -CG:p2align=on   -CG:unroll_fb_req=on   -HP:bdt=2m:heap=2m
456.hmmer:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=0   -OPT:alias=disjoint   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -CG:local_sched_alg=1   -CG:cflow=0   -CG:push_pop_int_saved_regs=off   -CG:cmp_peep=on   -HP:bdt=2m:heap=2m
458.sjeng:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -ipa   -LNO:ignore_feedback=off   -LNO:full_unroll=10   -LNO:fusion=0   -LNO:fission=2   -IPA:pu_reorder=2   -CG:ptr_load_use=0   -OPT:unroll_times_max=8   -INLINE:aggressive=on
462.libquantum:  basepeak = yes
464.h264ref:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0   -CG:ptr_load_use=0   -CG:push_pop_int_saved_regs=off

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -TENV:frame_pointer=off   -WOPT:if_conv=0   -GRA:optimize_boundary=on   -OPT:alias=disjoint   -INLINE:aggressive=on   -IPA:small_pu=3000   -IPA:plimit=3000   -m32   -HP:bdt=2m:heap=2m
483.xalancbmk:  -march=barcelona   -mso   -Ofast   -INLINE:aggressive=on   -m32   -CG:cmp_peep=on   -GRA:unspill=on   -TENV:frame_pointer=off   -fno-emit-exceptions   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20101109.html,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.20110119.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20101109.xml,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.20110119.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 21:52:04 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 5 July 2011.
