SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

ScaleMP

vSMP Foundation (Intel Xeon X5650, 2.66 GHz)

SPECint®_rate2006 = Not Run

CPU2006 license: 2929 Test date: Jun-2011
Test sponsor: ScaleMP Hardware Availability: Mar-2010
Tested by: ScaleMP Software Availability: May-2011

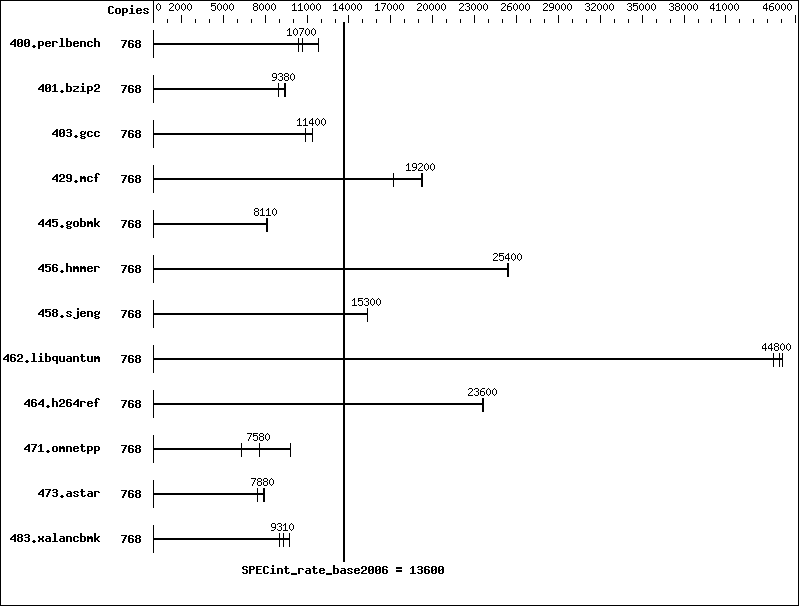

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5650
CPU Characteristics: Intel Turbo Boost Technology is not enabled
CPU MHz: 2667
FPU: Integrated
CPU(s) enabled: 768 cores, 128 chips, 6 cores/chip
CPU(s) orderable: 2 to 64 blades with 2 chips per blade
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip
Other Cache: 540 GB I+D off chip per system
Memory: 6 TB (64 x 12 x 8 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem: 6 TB ramfs
Other Hardware: None
Software
Operating System: CentOS
release 5.5 (Final)
Kernel: 2.6.32.19-13.vSMP
Compiler: Intel C Compiler for applications running on
IA-32, Version 11.1.074
Intel Fortran Compiler for applications running on
IA-32, Version 11.1.074
Auto Parallel: No
File System: xfs
System State: Multi-user, run level 3
Base Pointers: 32-bit
Peak Pointers: Not Applicable
Other Software: Hoard (libhoard) 3.7.1, released Feb. 08, 2008
ScaleMP vSMP Foundation 3.5.175.15, released May.
30, 2011

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 768 704 10700 722 10400 633 11900
401.bzip2 768 790 9380 783 9460 829 8940
403.gcc 768 542 11400 543 11400 566 10900
429.mcf 768 408 17200 363 19300 365 19200
445.gobmk 768 993 8110 998 8070 985 8180
456.hmmer 768 282 25400 282 25400 282 25400
458.sjeng 768 607 15300 607 15300 605 15400
462.libquantum 768 355 44800 359 44400 353 45000
464.h264ref 768 720 23600 720 23600 721 23600
471.omnetpp 768 489 9820 633 7580 766 6270
473.astar 768 675 7980 722 7470 684 7880
483.xalancbmk 768 569 9310 545 9720 587 9030

Submit Notes

The config file option 'submit' was used.

Operating System Notes

ramfs file-system setup:
   mkdir /ramfs
   mount /dev/ram -t ramfs /ramfs -o noatime

Platform Notes

  BIOS Settings
      Hyper-Threading Technology set to ON. Disabled by vSMP Foundation.
  ScaleMP
      vSMP Foundation: 3.5.175.15, released May. 30, 2011
      See http://www.scalemp.com
  Hardware Details:
     System was aggregated using 64 X HP BL490c G6 blades.
     The servers were connected with Melanox InfiniBand QDR and a
     QDR switch.
  CPU Characteristics: Intel Turbo Boost Technology not enabled:
     As the prerequisites listed below for enablement of this
     technology did not exist.
     - Hardware: Enabling Turbo Boost Technology require BIOS setting.
     - Software: OS needs to be ACPI-aware and set P0 power state.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3   -opt-prefetch

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   /ramfs/SPEC2006/cpu2006/libhoard.so

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.1-int-linux64-revH.20110629.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.1-int-linux64-revH.20110629.xml.
