| CPU2006 license: | 11 | Test date: | May-2011 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | May-2011 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-2860 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.67 GHz |
| CPU MHz: | 2267 |
| FPU: | Integrated |
| CPU(s) enabled: | 20 cores, 2 chips, 10 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 4Rx8 PC3-8500R-7, ECC) |
| Disk Subsystem: | 2 x 50 GB SSD, RAID 0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

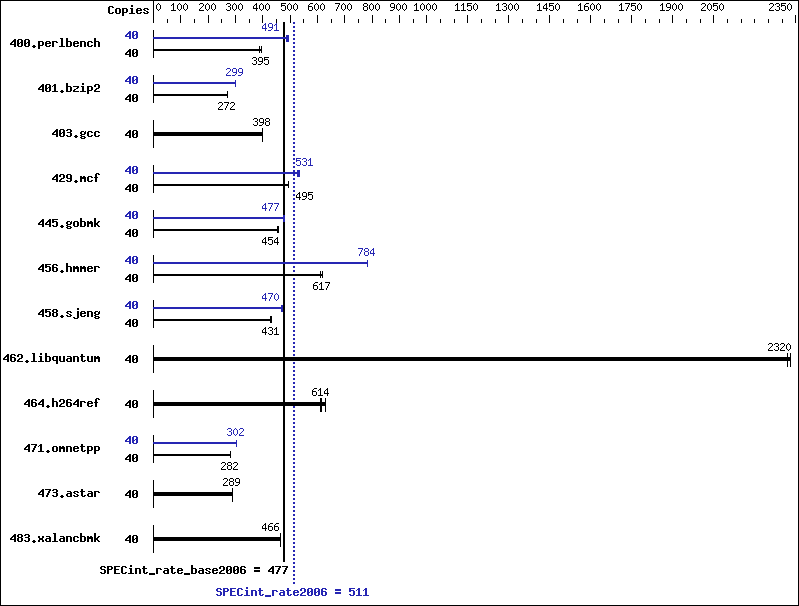

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 40 | 986 | 396 | 1003 | 389 | 989 | 395 | 40 | 802 | 487 | 796 | 491 | 789 | 496 |
| 401.bzip2 | 40 | 1422 | 271 | 1419 | 272 | 1418 | 272 | 40 | 1291 | 299 | 1288 | 300 | 1291 | 299 |
| 403.gcc | 40 | 807 | 399 | 810 | 398 | 810 | 398 | 40 | 807 | 399 | 810 | 398 | 810 | 398 |
| 429.mcf | 40 | 737 | 495 | 739 | 494 | 737 | 495 | 40 | 687 | 531 | 691 | 528 | 683 | 535 |
| 445.gobmk | 40 | 921 | 456 | 928 | 452 | 924 | 454 | 40 | 876 | 479 | 879 | 477 | 883 | 475 |
| 456.hmmer | 40 | 610 | 612 | 604 | 618 | 604 | 617 | 40 | 476 | 784 | 477 | 783 | 476 | 785 |
| 458.sjeng | 40 | 1124 | 431 | 1126 | 430 | 1124 | 431 | 40 | 1030 | 470 | 1029 | 470 | 1030 | 470 |
| 462.libquantum | 40 | 356 | 2330 | 357 | 2320 | 357 | 2320 | 40 | 356 | 2330 | 357 | 2320 | 357 | 2320 |
| 464.h264ref | 40 | 1409 | 628 | 1443 | 614 | 1448 | 611 | 40 | 1409 | 628 | 1443 | 614 | 1448 | 611 |
| 471.omnetpp | 40 | 885 | 283 | 885 | 282 | 887 | 282 | 40 | 827 | 302 | 827 | 302 | 826 | 302 |
| 473.astar | 40 | 972 | 289 | 972 | 289 | 970 | 289 | 40 | 972 | 289 | 972 | 289 | 970 | 289 |
| 483.xalancbmk | 40 | 593 | 466 | 592 | 466 | 592 | 466 | 40 | 593 | 466 | 592 | 466 | 592 | 466 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run echo 1 > /proc/sys/vm/zone_reclaim_mode 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 26000 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Turbo Boost Power Optimization set to Traditional
General Notes
Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
