| CPU2006 license: | 19 | Test date: | May-2011 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Jun-2011 |
| Tested by: | Fujitsu | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3-1240 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.70 GHz |
| CPU MHz: | 3300 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-10600E-9, ECC) |
| Disk Subsystem: | 1 x SATA, 300 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

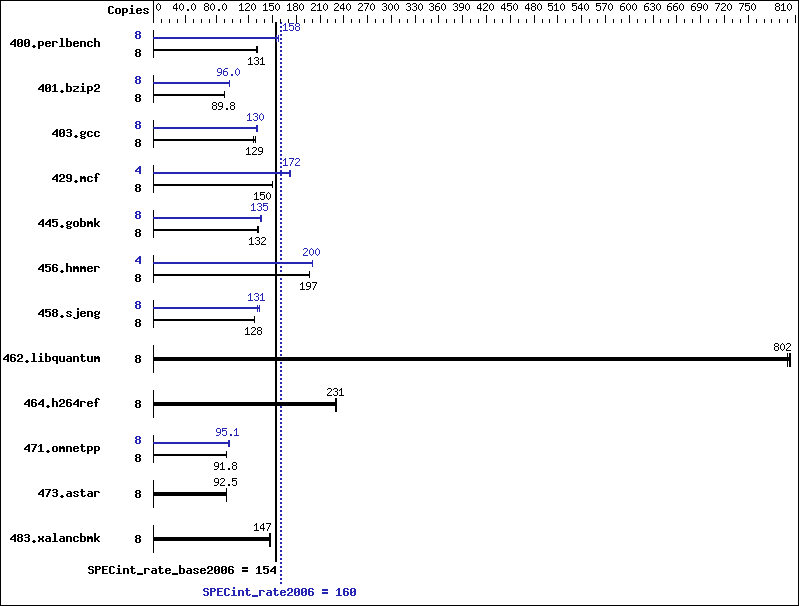

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 598 | 131 | 598 | 131 | 600 | 130 | 8 | 503 | 155 | 495 | 158 | 496 | 158 |
| 401.bzip2 | 8 | 860 | 89.8 | 861 | 89.7 | 859 | 89.8 | 8 | 804 | 96.0 | 807 | 95.7 | 802 | 96.2 |
| 403.gcc | 8 | 499 | 129 | 510 | 126 | 500 | 129 | 8 | 494 | 130 | 492 | 131 | 495 | 130 |
| 429.mcf | 8 | 486 | 150 | 488 | 150 | 485 | 151 | 4 | 212 | 172 | 212 | 172 | 212 | 172 |
| 445.gobmk | 8 | 637 | 132 | 635 | 132 | 633 | 132 | 8 | 623 | 135 | 623 | 135 | 618 | 136 |
| 456.hmmer | 8 | 378 | 197 | 378 | 197 | 378 | 197 | 4 | 186 | 201 | 186 | 200 | 186 | 200 |
| 458.sjeng | 8 | 762 | 127 | 757 | 128 | 756 | 128 | 8 | 738 | 131 | 726 | 133 | 739 | 131 |
| 462.libquantum | 8 | 207 | 800 | 206 | 804 | 207 | 802 | 8 | 207 | 800 | 206 | 804 | 207 | 802 |
| 464.h264ref | 8 | 766 | 231 | 772 | 229 | 768 | 231 | 8 | 766 | 231 | 772 | 229 | 768 | 231 |
| 471.omnetpp | 8 | 544 | 92.0 | 545 | 91.7 | 545 | 91.8 | 8 | 525 | 95.3 | 526 | 95.1 | 527 | 94.9 |
| 473.astar | 8 | 607 | 92.5 | 611 | 92.0 | 606 | 92.6 | 8 | 607 | 92.5 | 611 | 92.0 | 606 | 92.6 |
| 483.xalancbmk | 8 | 376 | 147 | 377 | 146 | 375 | 147 | 8 | 376 | 147 | 377 | 146 | 375 | 147 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run Large pages were not enabled for this run
General Notes
For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
