| CPU2006 license: | 97 | Test date: | Mar-2011 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Apr-2011 |
| Tested by: | Acer Incorporated | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3-1220L |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.40 GHz |
| CPU MHz: | 2200 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB 2Rx8 PC3-10600E-9,ECC) |
| Disk Subsystem: | 1 x 640 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

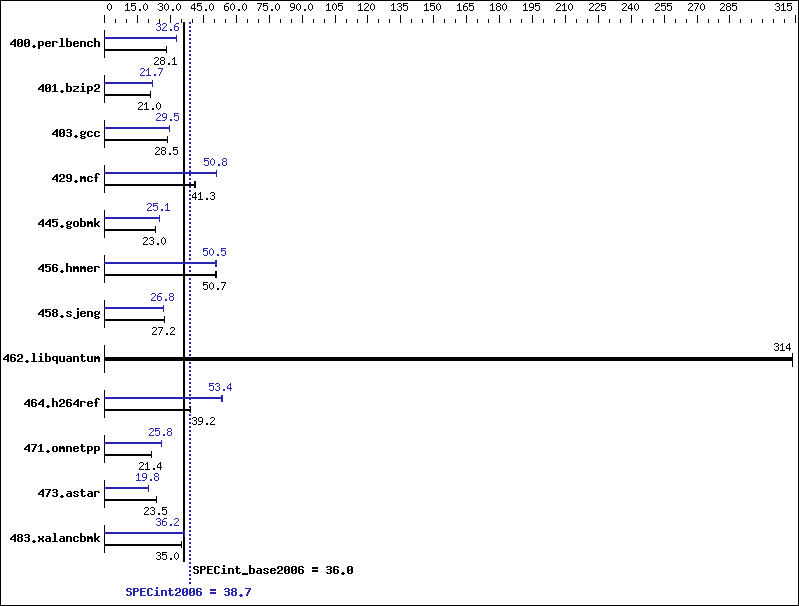

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 348 | 28.1 | 349 | 28.0 | 348 | 28.1 | 300 | 32.6 | 300 | 32.6 | 300 | 32.5 |
| 401.bzip2 | 463 | 20.8 | 459 | 21.0 | 461 | 21.0 | 444 | 21.7 | 444 | 21.7 | 441 | 21.9 |
| 403.gcc | 282 | 28.5 | 281 | 28.6 | 282 | 28.5 | 274 | 29.4 | 273 | 29.5 | 273 | 29.5 |
| 429.mcf | 220 | 41.4 | 222 | 41.1 | 221 | 41.3 | 179 | 50.9 | 180 | 50.8 | 180 | 50.8 |
| 445.gobmk | 456 | 23.0 | 456 | 23.0 | 456 | 23.0 | 418 | 25.1 | 417 | 25.1 | 418 | 25.1 |
| 456.hmmer | 185 | 50.5 | 184 | 50.7 | 184 | 50.8 | 185 | 50.4 | 184 | 50.7 | 185 | 50.5 |
| 458.sjeng | 445 | 27.2 | 446 | 27.2 | 445 | 27.2 | 451 | 26.8 | 451 | 26.8 | 451 | 26.8 |
| 462.libquantum | 66.1 | 314 | 66.1 | 314 | 66.1 | 314 | 66.1 | 314 | 66.1 | 314 | 66.1 | 314 |
| 464.h264ref | 564 | 39.2 | 565 | 39.2 | 567 | 39.0 | 413 | 53.6 | 415 | 53.4 | 416 | 53.2 |
| 471.omnetpp | 292 | 21.4 | 292 | 21.4 | 292 | 21.4 | 242 | 25.8 | 241 | 25.9 | 242 | 25.8 |
| 473.astar | 298 | 23.6 | 299 | 23.5 | 298 | 23.5 | 354 | 19.8 | 354 | 19.8 | 355 | 19.8 |
| 483.xalancbmk | 197 | 35.0 | 198 | 34.9 | 197 | 35.0 | 191 | 36.2 | 191 | 36.2 | 191 | 36.2 |
Operating System Notes
'ulimit -s unlimited' was used to set environment stack size Large pages were disabled for this run
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter KMP_STACKSIZE set to 200M Binaries compiled on RHEL5.5 This result was measured on the Gateway GT110 F2. The Acer AT110 F2 is electronically equivalent.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap64 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 473.astar: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/smartheap -lsmartheap64 |
| 483.xalancbmk: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
