| CPU2006 license: | 20 | Test date: | Apr-2011 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jul-2011 |
| Tested by: | Dell Inc. | Software Availability: | Apr-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X7560 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.67 GHz |
| CPU MHz: | 2266 |
| FPU: | Integrated |
| CPU(s) enabled: | 32 cores, 4 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 512 GB (64 x 8 GB 4Rx8 PC3-8500R-7, ECC) |
| Disk Subsystem: | 1 x 500 GB 7200 RPM SAS 6Gb |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ and Fortran Intel 64 Compiler XE for applications running on Intel 64 Version 12.0 Update 3 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

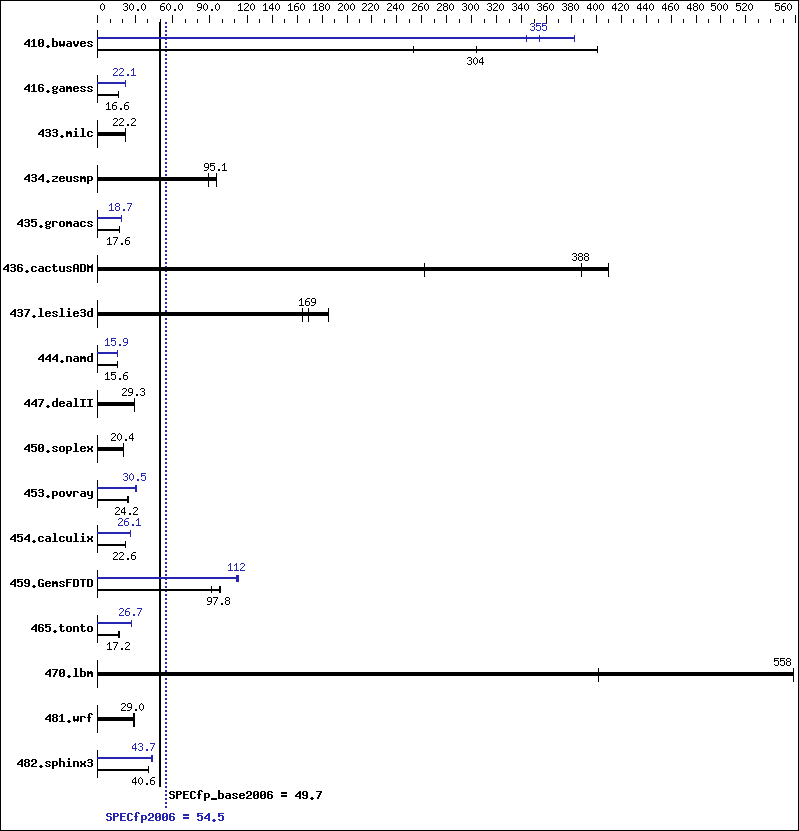

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 44.7 | 304 | 33.9 | 401 | 53.7 | 253 | 39.5 | 344 | 35.5 | 383 | 38.3 | 355 |
| 416.gamess | 1178 | 16.6 | 1173 | 16.7 | 1181 | 16.6 | 884 | 22.2 | 885 | 22.1 | 889 | 22.0 |
| 433.milc | 412 | 22.3 | 413 | 22.2 | 413 | 22.2 | 412 | 22.3 | 413 | 22.2 | 413 | 22.2 |
| 434.zeusmp | 95.7 | 95.1 | 95.7 | 95.1 | 102 | 89.1 | 95.7 | 95.1 | 95.7 | 95.1 | 102 | 89.1 |
| 435.gromacs | 404 | 17.7 | 408 | 17.5 | 406 | 17.6 | 380 | 18.8 | 381 | 18.7 | 382 | 18.7 |
| 436.cactusADM | 29.2 | 410 | 30.8 | 388 | 45.6 | 262 | 29.2 | 410 | 30.8 | 388 | 45.6 | 262 |
| 437.leslie3d | 50.8 | 185 | 57.2 | 164 | 55.6 | 169 | 50.8 | 185 | 57.2 | 164 | 55.6 | 169 |
| 444.namd | 512 | 15.7 | 513 | 15.6 | 513 | 15.6 | 503 | 15.9 | 503 | 15.9 | 503 | 15.9 |
| 447.dealII | 391 | 29.3 | 391 | 29.3 | 391 | 29.3 | 391 | 29.3 | 391 | 29.3 | 391 | 29.3 |
| 450.soplex | 407 | 20.5 | 409 | 20.4 | 408 | 20.4 | 407 | 20.5 | 409 | 20.4 | 408 | 20.4 |
| 453.povray | 220 | 24.2 | 219 | 24.3 | 220 | 24.2 | 173 | 30.7 | 174 | 30.5 | 175 | 30.4 |
| 454.calculix | 364 | 22.7 | 366 | 22.6 | 366 | 22.5 | 316 | 26.1 | 316 | 26.1 | 316 | 26.1 |
| 459.GemsFDTD | 109 | 97.8 | 108 | 98.7 | 116 | 91.2 | 94.6 | 112 | 95.4 | 111 | 93.8 | 113 |
| 465.tonto | 572 | 17.2 | 562 | 17.5 | 580 | 17.0 | 369 | 26.7 | 369 | 26.7 | 368 | 26.7 |
| 470.lbm | 24.6 | 558 | 34.2 | 401 | 24.6 | 558 | 24.6 | 558 | 34.2 | 401 | 24.6 | 558 |
| 481.wrf | 385 | 29.0 | 387 | 28.9 | 374 | 29.8 | 385 | 29.0 | 387 | 28.9 | 374 | 29.8 |
| 482.sphinx3 | 479 | 40.7 | 480 | 40.6 | 481 | 40.5 | 449 | 43.4 | 446 | 43.7 | 446 | 43.7 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 900 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller) Node Interleaving = Enabled (Default = Disabled)
General Notes
The Dell PowerEdge R910 and the Bull NovaScale R480 F2 models are electronically equivalent. The results have been measured on a Dell PowerEdge R910 model. OMP_NUM_THREADS set to number of cores Binaries were compiled on RHEL5.5
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
Fortran benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
Benchmarks using both Fortran and C:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -ansi-alias -parallel |
C++ benchmarks:
| 444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Fortran benchmarks:
| 410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -parallel -static |
| 416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
| 465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
| 481.wrf: | basepeak = yes |
