| CPU2006 license: | 11 | Test date: | May-2011 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | May-2011 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-2860 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.67 GHz |
| CPU MHz: | 2267 |
| FPU: | Integrated |
| CPU(s) enabled: | 20 cores, 2 chips, 10 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (32 x 8 GB 4Rx8 PC3-8500R-7, ECC) |
| Disk Subsystem: | 1 x 300 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ and Fortran Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

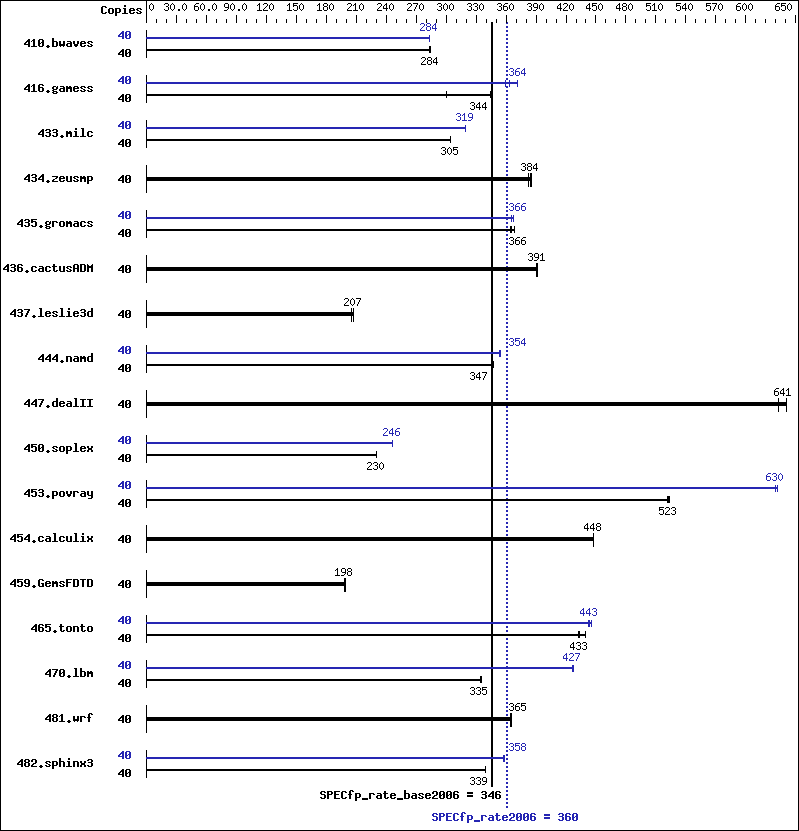

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 40 | 1918 | 283 | 1914 | 284 | 1911 | 284 | 40 | 1918 | 283 | 1916 | 284 | 1916 | 284 |
| 416.gamess | 40 | 2276 | 344 | 2612 | 300 | 2275 | 344 | 40 | 2108 | 372 | 2153 | 364 | 2180 | 359 |
| 433.milc | 40 | 1206 | 305 | 1205 | 305 | 1205 | 305 | 40 | 1151 | 319 | 1151 | 319 | 1151 | 319 |
| 434.zeusmp | 40 | 947 | 384 | 952 | 382 | 945 | 385 | 40 | 947 | 384 | 952 | 382 | 945 | 385 |
| 435.gromacs | 40 | 774 | 369 | 783 | 365 | 781 | 366 | 40 | 777 | 367 | 781 | 366 | 782 | 365 |
| 436.cactusADM | 40 | 1221 | 392 | 1221 | 391 | 1224 | 391 | 40 | 1221 | 392 | 1221 | 391 | 1224 | 391 |
| 437.leslie3d | 40 | 1818 | 207 | 1829 | 206 | 1818 | 207 | 40 | 1818 | 207 | 1829 | 206 | 1818 | 207 |
| 444.namd | 40 | 923 | 347 | 923 | 348 | 923 | 347 | 40 | 907 | 354 | 905 | 354 | 905 | 354 |
| 447.dealII | 40 | 714 | 641 | 723 | 633 | 714 | 641 | 40 | 714 | 641 | 723 | 633 | 714 | 641 |
| 450.soplex | 40 | 1451 | 230 | 1450 | 230 | 1451 | 230 | 40 | 1354 | 246 | 1356 | 246 | 1355 | 246 |
| 453.povray | 40 | 407 | 523 | 406 | 524 | 408 | 522 | 40 | 338 | 630 | 338 | 630 | 337 | 632 |
| 454.calculix | 40 | 737 | 448 | 738 | 447 | 737 | 448 | 40 | 737 | 448 | 738 | 447 | 737 | 448 |
| 459.GemsFDTD | 40 | 2140 | 198 | 2141 | 198 | 2125 | 200 | 40 | 2140 | 198 | 2141 | 198 | 2125 | 200 |
| 465.tonto | 40 | 908 | 433 | 911 | 432 | 895 | 440 | 40 | 884 | 445 | 890 | 442 | 888 | 443 |
| 470.lbm | 40 | 1644 | 334 | 1640 | 335 | 1641 | 335 | 40 | 1286 | 427 | 1287 | 427 | 1287 | 427 |
| 481.wrf | 40 | 1224 | 365 | 1225 | 365 | 1226 | 364 | 40 | 1224 | 365 | 1225 | 365 | 1226 | 364 |
| 482.sphinx3 | 40 | 2295 | 340 | 2300 | 339 | 2298 | 339 | 40 | 2177 | 358 | 2179 | 358 | 2179 | 358 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited 'nodev /mnt/hugepages hugetlbfs defaults 0 0' added to /etc/fstab echo 36000 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Load Default BIOS Settings and then change the following Turbo Boost Power Optimization set to Traditional
General Notes
Binaries compiled on RHEL 5.5
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
Fortran benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static |
Benchmarks using both Fortran and C:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 482.sphinx3: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 450.soplex: | icpc -m32 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 |
| 470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -opt-prefetch -static -auto-ilp32 |
| 482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 |
C++ benchmarks:
| 444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Fortran benchmarks:
| 410.bwaves: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static |
| 416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -static -auto-ilp32 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
