| CPU2006 license: | 20 | Test date: | Apr-2011 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2011 |
| Tested by: | Bull SAS | Software Availability: | Nov-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7520 |
| CPU Characteristics: | |
| CPU MHz: | 1866 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 18 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (32 x 8 GB 4Rx8 PC3-8500R-7, ECC, running at 800 MHz) |
| Disk Subsystem: | 2 x 50 GB SATA, SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

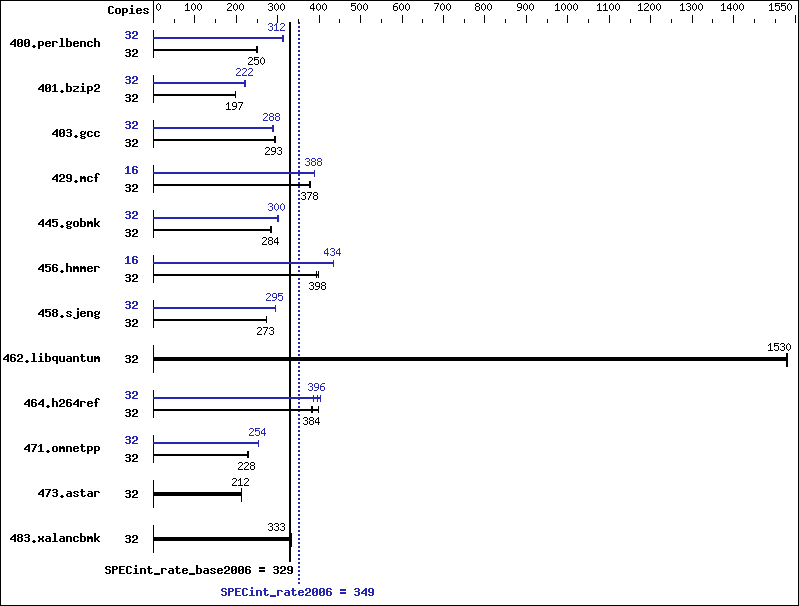

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 32 | 1261 | 248 | 1244 | 251 | 1250 | 250 | 32 | 995 | 314 | 1007 | 311 | 1001 | 312 |
| 401.bzip2 | 32 | 1569 | 197 | 1564 | 197 | 1565 | 197 | 32 | 1400 | 221 | 1389 | 222 | 1390 | 222 |
| 403.gcc | 32 | 878 | 293 | 881 | 293 | 882 | 292 | 32 | 894 | 288 | 891 | 289 | 895 | 288 |
| 429.mcf | 32 | 773 | 378 | 772 | 378 | 778 | 375 | 16 | 376 | 388 | 376 | 388 | 375 | 389 |
| 445.gobmk | 32 | 1182 | 284 | 1181 | 284 | 1184 | 284 | 32 | 1117 | 301 | 1120 | 300 | 1118 | 300 |
| 456.hmmer | 32 | 751 | 398 | 751 | 398 | 760 | 393 | 16 | 344 | 434 | 345 | 433 | 344 | 434 |
| 458.sjeng | 32 | 1420 | 273 | 1418 | 273 | 1418 | 273 | 32 | 1315 | 294 | 1314 | 295 | 1314 | 295 |
| 462.libquantum | 32 | 433 | 1530 | 434 | 1530 | 434 | 1530 | 32 | 433 | 1530 | 434 | 1530 | 434 | 1530 |
| 464.h264ref | 32 | 1846 | 384 | 1782 | 397 | 1852 | 382 | 32 | 1759 | 403 | 1833 | 386 | 1787 | 396 |
| 471.omnetpp | 32 | 878 | 228 | 880 | 227 | 876 | 228 | 32 | 788 | 254 | 789 | 254 | 787 | 254 |
| 473.astar | 32 | 1059 | 212 | 1057 | 213 | 1059 | 212 | 32 | 1059 | 212 | 1057 | 213 | 1059 | 212 |
| 483.xalancbmk | 32 | 662 | 334 | 663 | 333 | 662 | 333 | 32 | 662 | 334 | 663 | 333 | 662 | 333 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Hugepages was enabled with the following:
'nodev /mnt/hugepages hugetlbfs defaults 0 0' added to /etc/fstab
echo 14400 > /proc/sys/vm/nr_hugepages
export HUGETLB_MORECORE=yes
export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Power C-states enabled in BIOS Demand Scrub disabled in BIOS
General Notes
Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
