| CPU2006 license: | 11 | Test date: | Apr-2011 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2011 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5503 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC, running at 800 MHz) |
| Disk Subsystem: | 1 x 146 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

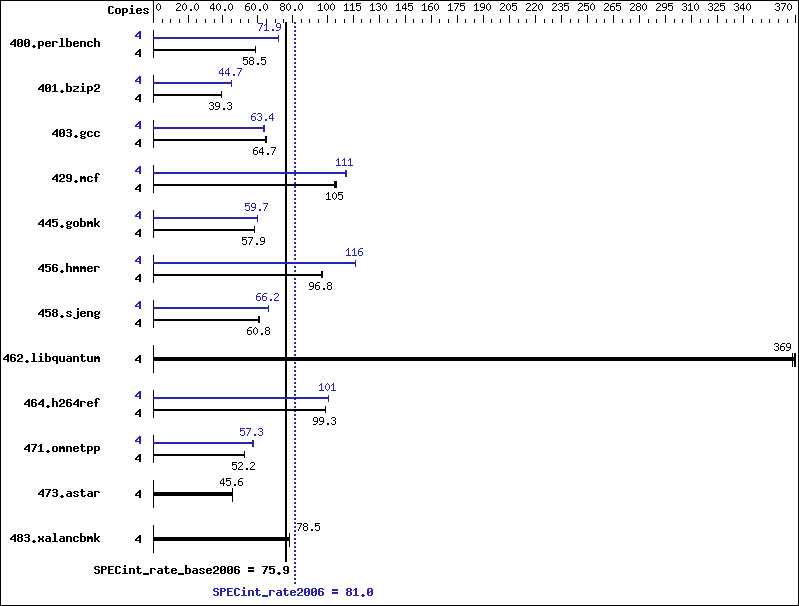

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 668 | 58.5 | 668 | 58.5 | 668 | 58.5 | 4 | 544 | 71.8 | 543 | 71.9 | 543 | 72.0 |
| 401.bzip2 | 4 | 983 | 39.3 | 981 | 39.3 | 984 | 39.2 | 4 | 863 | 44.7 | 863 | 44.7 | 861 | 44.8 |
| 403.gcc | 4 | 496 | 65.0 | 501 | 64.3 | 497 | 64.7 | 4 | 506 | 63.7 | 508 | 63.4 | 509 | 63.3 |
| 429.mcf | 4 | 350 | 104 | 348 | 105 | 347 | 105 | 4 | 328 | 111 | 330 | 111 | 330 | 111 |
| 445.gobmk | 4 | 724 | 58.0 | 724 | 57.9 | 725 | 57.9 | 4 | 703 | 59.7 | 703 | 59.7 | 702 | 59.8 |
| 456.hmmer | 4 | 386 | 96.8 | 386 | 96.7 | 383 | 97.5 | 4 | 321 | 116 | 321 | 116 | 321 | 116 |
| 458.sjeng | 4 | 796 | 60.8 | 796 | 60.8 | 796 | 60.8 | 4 | 732 | 66.2 | 731 | 66.2 | 732 | 66.2 |
| 462.libquantum | 4 | 224 | 370 | 225 | 368 | 224 | 369 | 4 | 224 | 370 | 225 | 368 | 224 | 369 |
| 464.h264ref | 4 | 891 | 99.3 | 893 | 99.2 | 892 | 99.3 | 4 | 879 | 101 | 878 | 101 | 878 | 101 |
| 471.omnetpp | 4 | 478 | 52.3 | 479 | 52.2 | 479 | 52.2 | 4 | 436 | 57.3 | 436 | 57.4 | 437 | 57.3 |
| 473.astar | 4 | 616 | 45.6 | 614 | 45.7 | 615 | 45.6 | 4 | 616 | 45.6 | 614 | 45.7 | 615 | 45.6 |
| 483.xalancbmk | 4 | 351 | 78.6 | 352 | 78.5 | 351 | 78.5 | 4 | 351 | 78.6 | 352 | 78.5 | 351 | 78.5 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 3600 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Power C-State enabled in BIOS Data Reuse disabled in BIOS Demand Scrub disabled in BIOS
General Notes
Binaries compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
