| CPU2006 license: | 11 | Test date: | Apr-2011 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2011 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5606 |
| CPU Characteristics: | |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC, running at 1067 MHz) |
| Disk Subsystem: | 1 x 146 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

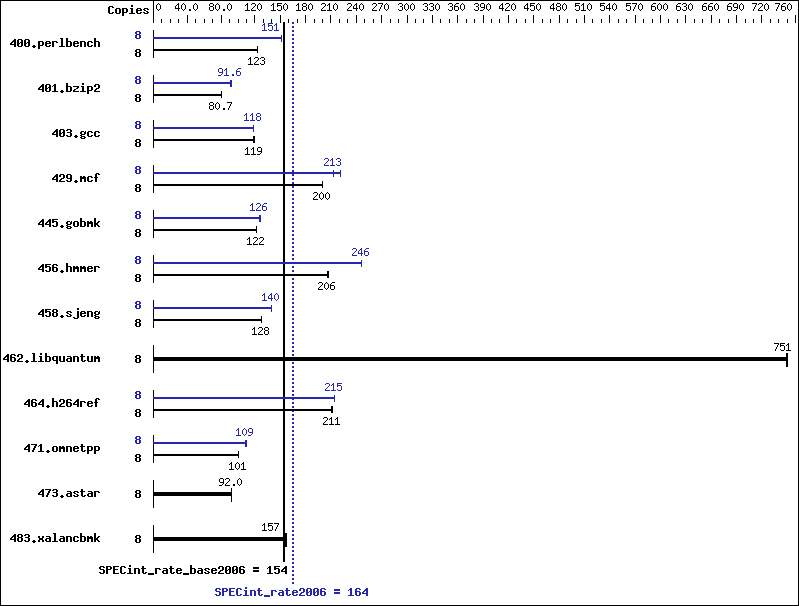

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 634 | 123 | 634 | 123 | 635 | 123 | 8 | 517 | 151 | 516 | 152 | 517 | 151 |
| 401.bzip2 | 8 | 959 | 80.5 | 955 | 80.8 | 956 | 80.7 | 8 | 841 | 91.8 | 843 | 91.6 | 847 | 91.1 |
| 403.gcc | 8 | 541 | 119 | 539 | 119 | 542 | 119 | 8 | 546 | 118 | 547 | 118 | 546 | 118 |
| 429.mcf | 8 | 366 | 200 | 366 | 200 | 365 | 200 | 8 | 343 | 213 | 342 | 213 | 329 | 222 |
| 445.gobmk | 8 | 686 | 122 | 686 | 122 | 686 | 122 | 8 | 665 | 126 | 668 | 126 | 668 | 126 |
| 456.hmmer | 8 | 362 | 206 | 362 | 206 | 359 | 208 | 8 | 304 | 246 | 303 | 246 | 303 | 246 |
| 458.sjeng | 8 | 756 | 128 | 756 | 128 | 756 | 128 | 8 | 692 | 140 | 693 | 140 | 692 | 140 |
| 462.libquantum | 8 | 221 | 751 | 221 | 749 | 221 | 751 | 8 | 221 | 751 | 221 | 749 | 221 | 751 |
| 464.h264ref | 8 | 838 | 211 | 839 | 211 | 838 | 211 | 8 | 826 | 214 | 824 | 215 | 825 | 215 |
| 471.omnetpp | 8 | 496 | 101 | 494 | 101 | 497 | 101 | 8 | 458 | 109 | 455 | 110 | 458 | 109 |
| 473.astar | 8 | 611 | 91.8 | 611 | 92.0 | 611 | 92.0 | 8 | 611 | 91.8 | 611 | 92.0 | 611 | 92.0 |
| 483.xalancbmk | 8 | 354 | 156 | 352 | 157 | 352 | 157 | 8 | 354 | 156 | 352 | 157 | 352 | 157 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 7200 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Power C-State enabled in BIOS Data Reuse disabled in BIOS Demand Scrub disabled in BIOS
General Notes
Binaries compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
