| CPU2006 license: | 11 | Test date: | Mar-2011 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2011 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5660 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

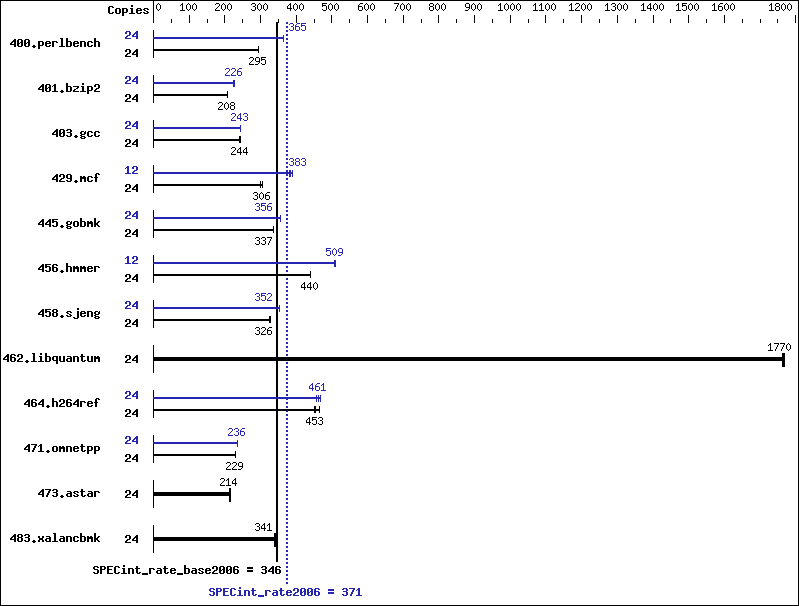

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 795 | 295 | 795 | 295 | 794 | 295 | 24 | 642 | 365 | 642 | 365 | 643 | 364 |
| 401.bzip2 | 24 | 1114 | 208 | 1113 | 208 | 1110 | 209 | 24 | 1027 | 226 | 1026 | 226 | 1022 | 227 |
| 403.gcc | 24 | 793 | 244 | 804 | 240 | 793 | 244 | 24 | 794 | 243 | 788 | 245 | 795 | 243 |
| 429.mcf | 24 | 728 | 301 | 716 | 306 | 715 | 306 | 12 | 286 | 383 | 281 | 389 | 287 | 381 |
| 445.gobmk | 24 | 748 | 337 | 749 | 336 | 746 | 338 | 24 | 709 | 355 | 707 | 356 | 706 | 357 |
| 456.hmmer | 24 | 509 | 440 | 509 | 440 | 509 | 440 | 12 | 221 | 507 | 220 | 509 | 220 | 509 |
| 458.sjeng | 24 | 893 | 325 | 890 | 326 | 888 | 327 | 24 | 825 | 352 | 824 | 352 | 820 | 354 |
| 462.libquantum | 24 | 281 | 1770 | 282 | 1760 | 282 | 1770 | 24 | 281 | 1770 | 282 | 1760 | 282 | 1770 |
| 464.h264ref | 24 | 1171 | 453 | 1178 | 451 | 1139 | 466 | 24 | 1136 | 468 | 1160 | 458 | 1151 | 461 |
| 471.omnetpp | 24 | 656 | 229 | 655 | 229 | 656 | 229 | 24 | 635 | 236 | 635 | 236 | 635 | 236 |
| 473.astar | 24 | 786 | 214 | 787 | 214 | 785 | 215 | 24 | 786 | 214 | 787 | 214 | 785 | 215 |
| 483.xalancbmk | 24 | 487 | 340 | 486 | 341 | 485 | 341 | 24 | 487 | 340 | 486 | 341 | 485 | 341 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 10800 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Turbo Mode enabled in BIOS Turbo Boost set to Traditional in BIOS Power C-State enabled in BIOS Data Reuse disabled in BIOS Demand Scrub disabled in BIOS
General Notes
Binaries compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
