| CPU2006 license: | 9016 | Test date: | Mar-2011 |
|---|---|---|---|
| Test sponsor: | ASUSTeK Computer Inc. | Hardware Availability: | Apr-2011 |
| Tested by: | ASUSTeK Computer Inc. | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3-1280 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.9 GHz |
| CPU MHz: | 3500 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx8 PC3L-10600E-9, ECC) |
| Disk Subsystem: | Seagate ST3500320AS 1 x 500 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

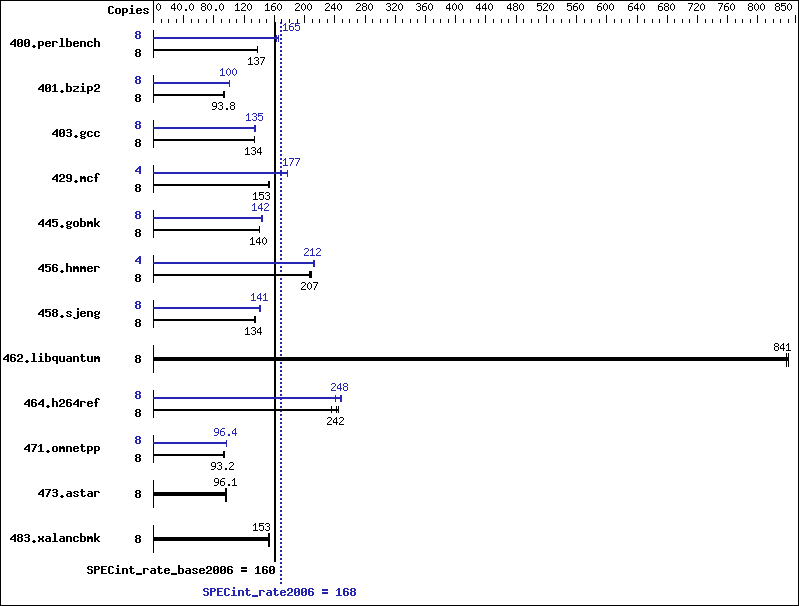

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 569 | 137 | 569 | 137 | 570 | 137 | 8 | 481 | 163 | 472 | 165 | 473 | 165 |
| 401.bzip2 | 8 | 829 | 93.2 | 822 | 94.0 | 823 | 93.8 | 8 | 771 | 100 | 770 | 100 | 772 | 99.9 |
| 403.gcc | 8 | 480 | 134 | 481 | 134 | 481 | 134 | 8 | 476 | 135 | 476 | 135 | 482 | 134 |
| 429.mcf | 8 | 477 | 153 | 478 | 153 | 479 | 152 | 4 | 206 | 177 | 206 | 177 | 205 | 178 |
| 445.gobmk | 8 | 601 | 140 | 599 | 140 | 600 | 140 | 8 | 590 | 142 | 590 | 142 | 584 | 144 |
| 456.hmmer | 8 | 357 | 209 | 360 | 207 | 360 | 207 | 4 | 176 | 212 | 176 | 211 | 176 | 212 |
| 458.sjeng | 8 | 720 | 134 | 722 | 134 | 722 | 134 | 8 | 687 | 141 | 686 | 141 | 686 | 141 |
| 462.libquantum | 8 | 197 | 841 | 197 | 841 | 198 | 838 | 8 | 197 | 841 | 197 | 841 | 198 | 838 |
| 464.h264ref | 8 | 724 | 245 | 731 | 242 | 750 | 236 | 8 | 711 | 249 | 714 | 248 | 733 | 241 |
| 471.omnetpp | 8 | 536 | 93.2 | 535 | 93.4 | 537 | 93.1 | 8 | 519 | 96.4 | 520 | 96.1 | 519 | 96.4 |
| 473.astar | 8 | 585 | 96.1 | 587 | 95.6 | 585 | 96.1 | 8 | 585 | 96.1 | 587 | 95.6 | 585 | 96.1 |
| 483.xalancbmk | 8 | 361 | 153 | 361 | 153 | 361 | 153 | 8 | 361 | 153 | 361 | 153 | 361 | 153 |
Submit Notes
The config file option 'submit' was used. taskset was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run Hugepages was not enabled
General Notes
Binaries compiled on RHEL5.5 with binutils-2.17.50.0.6-14.el5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
