SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu

SPARC Enterprise M3000

CPU2006 license: 19 Test date: Jan-2011
Test sponsor: Fujitsu Hardware Availability: Apr-2011
Tested by: Fujitsu Software Availability: Sep-2010

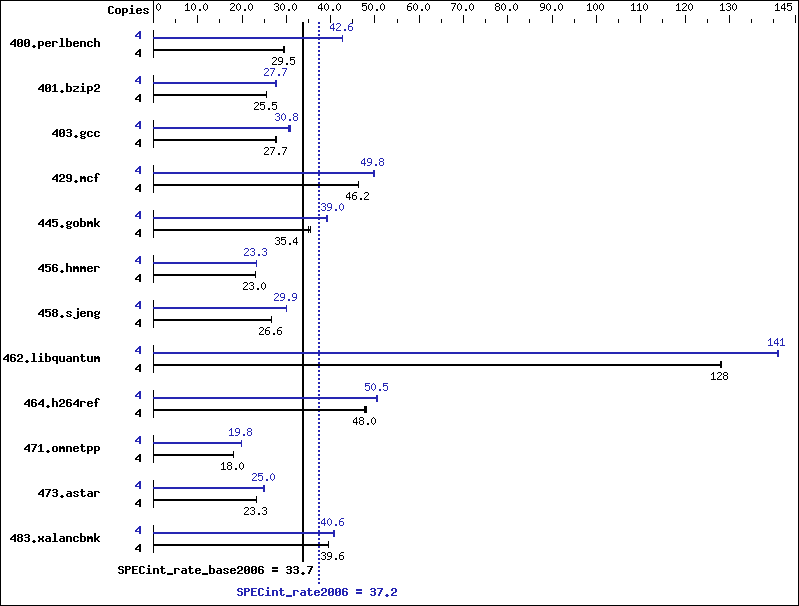

Benchmark results graph
Hardware
CPU Name: SPARC64 VII+
CPU Characteristics:
CPU MHz: 2860
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 5632 KB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 32 GB (8 x 4 GB, 2-way interleaved)
Disk Subsystem: 1 x 300 GB 10,000 RPM SAS
Other Hardware: None
Software
Operating System: Oracle Solaris 10 9/10
Compiler: Oracle Solaris Studio 12.2
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 1327 29.4 1325 29.5 1324 29.5 4 916 42.7 918 42.6 918 42.6
401.bzip2 4 1513 25.5 1518 25.4 1509 25.6 4 1389 27.8 1399 27.6 1394 27.7
403.gcc 4 1165 27.6 1159 27.8 1160 27.7 4 1058 30.4 1045 30.8 1046 30.8
429.mcf 4 789 46.2 789 46.2 789 46.2 4 732 49.8 733 49.8 735 49.6
445.gobmk 4 1187 35.4 1199 35.0 1187 35.4 4 1075 39.0 1066 39.4 1077 39.0
456.hmmer 4 1620 23.0 1619 23.0 1619 23.1 4 1605 23.3 1605 23.3 1605 23.3
458.sjeng 4 1821 26.6 1822 26.6 1822 26.6 4 1617 29.9 1618 29.9 1616 30.0
462.libquantum 4 647 128   646 128   647 128   4 589 141   588 141   588 141
464.h264ref 4 1839 48.1 1846 48.0 1857 47.7 4 1754 50.5 1752 50.5 1757 50.4
471.omnetpp 4 1390 18.0 1385 18.1 1392 18.0 4 1262 19.8 1262 19.8 1263 19.8
473.astar 4 1203 23.3 1203 23.3 1205 23.3 4 1126 24.9 1125 25.0 1124 25.0
483.xalancbmk 4 697 39.6 699 39.5 697 39.6 4 679 40.6 680 40.6 677 40.8

Compiler Invocation Notes

  Oracle Solaris Studio 12.2 is distributed with mandatory OS patches
   118683-05  119963-20  120753-08
  Oracle Solaris Studio 12.2 and patches are available at
   http://oracle.com/goto/solarisstudio

Submit Notes


  Processes were assigned to specific processors using 'pbind'
  commands.  The config file option 'submit' was used, along
  with a list of processors in the 'BIND' variable, to generate
  the pbind commands.  (For details, please see the config file.)

Operating System Notes

  ulimit -s 131072 was used to limit the space
  consumed by the stack (and therefore make more
  space available to the heap).

System Tunables:
(/etc/system parameters)

    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers.
    segmap_percent=1
       Set maximum percent memory for file system cache.

Other System Settings:

    The "webconsole" service was turned off using
        svcadm disable webconsole

Platform Notes


  Memory is 2-way interleaved by filling all slots with
  the same capacity DIMMs.

 This result is measured on a SPARC Enterprise M3000 server from
 Fujitsu.  The SPARC Enterprise M3000 server from Oracle and from
 Fujitsu are electrically equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xO4   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=std   -xunroll=12   -xprefetch=latx:0.5   -ll2amm

C++ benchmarks:

 -library=stlport4   -M /usr/lib/ld/map.bssalign   -fast   -xO4   -fma=fused   -xipo=2   -xpagesize=4M   -xdepend   -xalias_level=compatible   -xunroll=8   -xprefetch=no%auto   -lfast

Base Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -xO4   -xalias_level=std   -xrestrict   -Xc   -xprefetch=no%auto   -lfast   -ll2amm   -lbsdmalloc
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xO4   -xchip=generic   -xalias_level=strong
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xO4   -xalias_level=std   -xprefetch=latx:0.5   -xunroll=2   -ll2amm
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -xchip=generic   -xprefetch_auto_type=indirect_array_access   -xprefetch=latx:0.1   -W2,-Apf:llist=3   -W2,-Apf:noinnerllist   -Wc,-Qlp-prt=1   -Wc,-Qlp-prwt=3   -lfast   -lbsdmalloc
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xalias_level=std   -xrestrict   -xprefetch=latx:1   -xunroll=12   -lfast
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xunroll=12
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xO4   -xinline=   -xprefetch=no%auto   -xunroll=9   -ll2amm
462.libquantum:  -fast   -fma=fused   -xpagesize=4M   -xalias_level=std   -xipo=2   -xchip=generic   -xprefetch=no%auto   -xunroll=10   -lbsdmalloc
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xvector   -xalias_level=std   -xprefetch=latx:1.2   -ll2amm

C++ benchmarks:

471.omnetpp:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=1   -xO4   -Qoption cg -Qlp-av=0   -xprefetch=latx:1.2   -xunroll=5   -lfast   -lbsdmalloc
473.astar:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xlinkopt   -xprefetch=latx:0.1   -xunroll=10   -lfast
483.xalancbmk:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xO4   -xprefetch=no%auto   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.20110413.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.20110413.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 19:17:12 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 12 April 2011.
