| CPU2006 license: | 19 | Test date: | Mar-2011 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Feb-2011 |
| Tested by: | Fujitsu | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5603 |
| CPU Characteristics: | |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC, running at 1067 MHz and CL7) |
| Disk Subsystem: | 1 x SAS, 300 GB, 10000 RPM |
| Other Hardware: | -- |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

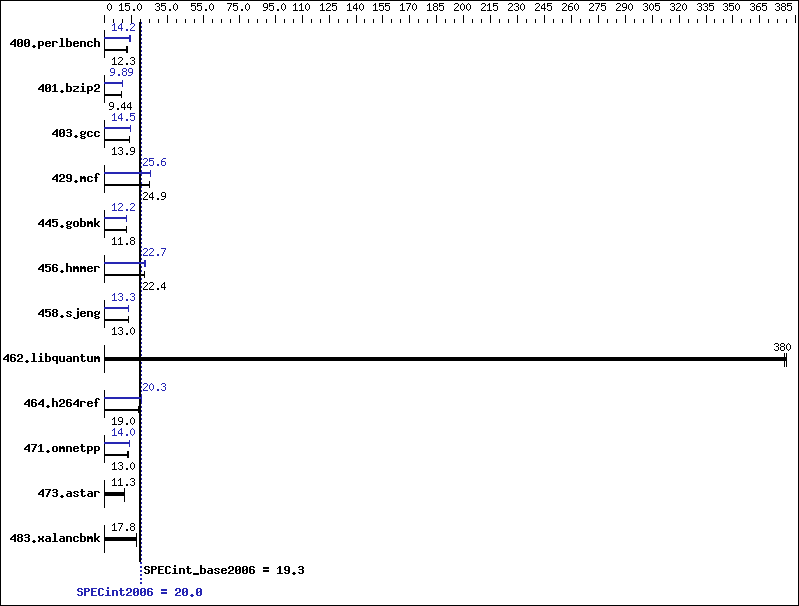

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 798 | 12.2 | 786 | 12.4 | 795 | 12.3 | 704 | 13.9 | 690 | 14.2 | 689 | 14.2 |
| 401.bzip2 | 1023 | 9.43 | 1023 | 9.44 | 1021 | 9.45 | 974 | 9.91 | 976 | 9.89 | 978 | 9.86 |
| 403.gcc | 578 | 13.9 | 575 | 14.0 | 586 | 13.7 | 555 | 14.5 | 556 | 14.5 | 556 | 14.5 |
| 429.mcf | 365 | 25.0 | 367 | 24.8 | 366 | 24.9 | 355 | 25.7 | 357 | 25.6 | 357 | 25.6 |
| 445.gobmk | 886 | 11.8 | 885 | 11.9 | 886 | 11.8 | 862 | 12.2 | 874 | 12.0 | 862 | 12.2 |
| 456.hmmer | 417 | 22.4 | 422 | 22.1 | 417 | 22.4 | 411 | 22.7 | 421 | 22.2 | 411 | 22.7 |
| 458.sjeng | 929 | 13.0 | 929 | 13.0 | 929 | 13.0 | 907 | 13.3 | 907 | 13.3 | 907 | 13.3 |
| 462.libquantum | 54.7 | 379 | 54.5 | 380 | 54.6 | 380 | 54.7 | 379 | 54.5 | 380 | 54.6 | 380 |
| 464.h264ref | 1175 | 18.8 | 1166 | 19.0 | 1165 | 19.0 | 1086 | 20.4 | 1089 | 20.3 | 1089 | 20.3 |
| 471.omnetpp | 483 | 12.9 | 481 | 13.0 | 482 | 13.0 | 447 | 14.0 | 454 | 13.8 | 447 | 14.0 |
| 473.astar | 624 | 11.3 | 622 | 11.3 | 628 | 11.2 | 624 | 11.3 | 622 | 11.3 | 628 | 11.2 |
| 483.xalancbmk | 388 | 17.8 | 387 | 17.8 | 388 | 17.8 | 388 | 17.8 | 387 | 17.8 | 388 | 17.8 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'nodev /mnt/hugepages hugetlbfs defaults 0 0' added to /etc/fstab echo 900 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS configuration: Data Reuse Optimization = Disable
General Notes
OMP_NUM_THREADS set to number of cores For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on RHEL5.5 with binutils-2.17.50.0.6-14.el5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap64 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 471.omnetpp: | icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
