| CPU2006 license: | 3979 | Test date: | Mar-2011 |
|---|---|---|---|
| Test sponsor: | Cryo Performance Computing Ltd | Hardware Availability: | Dec-2010 |
| Tested by: | Cryo Performance Computing Ltd | Software Availability: | Dec-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5680 |
| CPU Characteristics: | Intel Turbo Boost Technology disabled |
| CPU MHz: | 4500 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 x 4 GB 2Rx4 PC3-12800U-9, running at 1440 MHz and CL8) |
| Disk Subsystem: | 1 x 120 GB Corsair Force Series SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 12 Build 12.0.2.137 Package ID: l_ccompxe_2011.2.137, l_fcompxe_2011.2.137 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

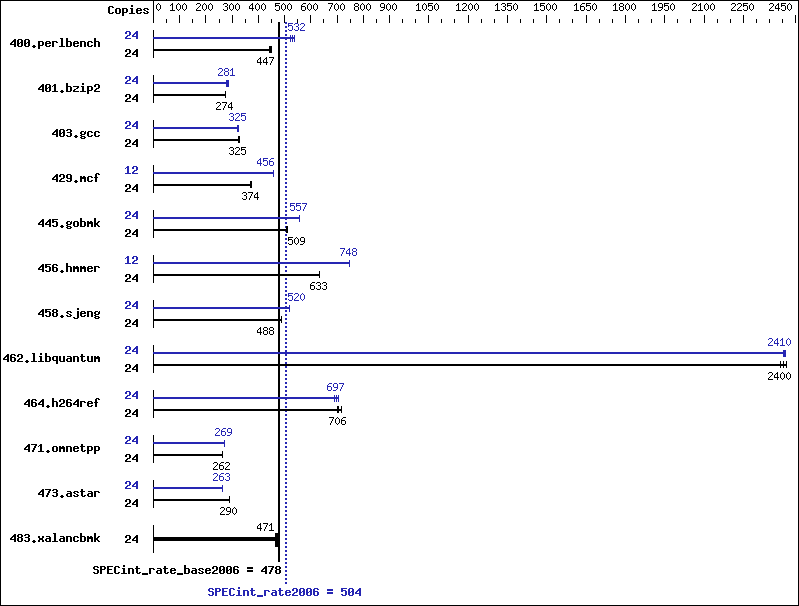

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 523 | 448 | 530 | 443 | 525 | 447 | 24 | 441 | 532 | 435 | 539 | 448 | 523 |
| 401.bzip2 | 24 | 846 | 274 | 843 | 275 | 849 | 273 | 24 | 824 | 281 | 827 | 280 | 811 | 285 |
| 403.gcc | 24 | 588 | 329 | 595 | 325 | 597 | 324 | 24 | 602 | 321 | 594 | 325 | 593 | 326 |
| 429.mcf | 24 | 591 | 370 | 584 | 375 | 586 | 374 | 12 | 240 | 456 | 240 | 456 | 239 | 458 |
| 445.gobmk | 24 | 495 | 509 | 495 | 509 | 493 | 510 | 24 | 452 | 557 | 452 | 557 | 451 | 559 |
| 456.hmmer | 24 | 354 | 633 | 354 | 633 | 353 | 635 | 12 | 150 | 747 | 150 | 748 | 149 | 749 |
| 458.sjeng | 24 | 595 | 488 | 597 | 487 | 594 | 488 | 24 | 559 | 520 | 558 | 520 | 559 | 520 |
| 462.libquantum | 24 | 208 | 2390 | 207 | 2400 | 206 | 2410 | 24 | 206 | 2410 | 206 | 2410 | 207 | 2400 |
| 464.h264ref | 24 | 757 | 702 | 752 | 706 | 740 | 718 | 24 | 754 | 704 | 767 | 692 | 762 | 697 |
| 471.omnetpp | 24 | 572 | 262 | 573 | 262 | 573 | 262 | 24 | 557 | 269 | 557 | 269 | 557 | 269 |
| 473.astar | 24 | 577 | 292 | 581 | 290 | 581 | 290 | 24 | 641 | 263 | 640 | 263 | 640 | 263 |
| 483.xalancbmk | 24 | 355 | 466 | 351 | 471 | 352 | 471 | 24 | 355 | 466 | 351 | 471 | 352 | 471 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
General Notes
OMP_NUM_THREADS set to number of cores Hyper-Threading Technology Enabled KMP_AFFINITY set to granularity=fine,scatter KMP_STACKSIZE set to 200M
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cryo/cpu2006/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cryo/cpu2006/lib -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cryo/cpu2006/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
