SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DH55PJ Motherboard (Intel Core i3-540)

CPU2006 license: 13 Test date: Feb-2011
Test sponsor: Intel Corporation Hardware Availability: Jan-2010
Tested by: Intel Corporation Software Availability: Oct-2010

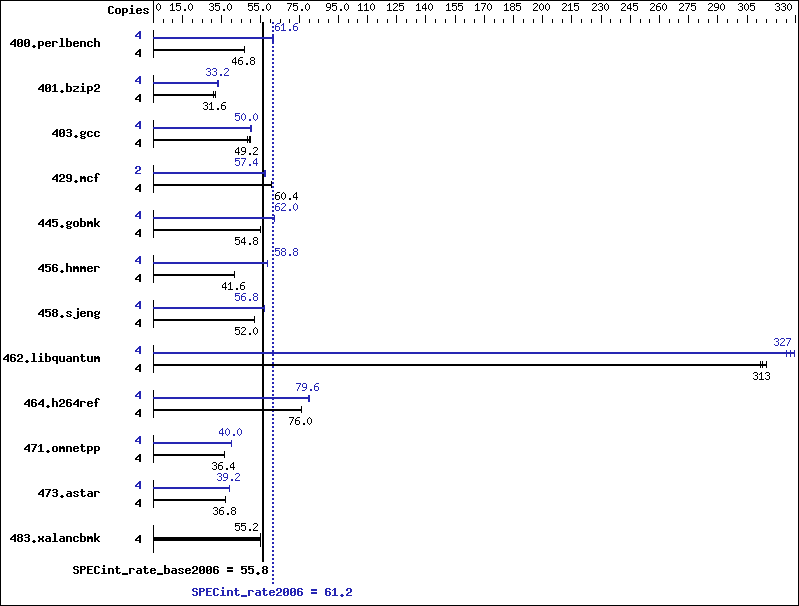

Benchmark results graph
Hardware
CPU Name: Intel Core i3-540
CPU Characteristics:
CPU MHz: 3066
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory: 4 GB (2 x 2 GB 2Rx8 PC3-10600U-9)
Disk Subsystem: Seagate 1 TB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate w/ SP1 (64-bit)
Compiler: Intel C++ Compiler XE for IA32 and Intel 64
Version 12.0.0.104 Build 20101006
Microsoft Visual Studio 2008 Professional SP1
(for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 9.01 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 834 46.8 834 46.8 838 46.8 4 634 61.6 637 61.2 633 61.6
401.bzip2 4 1252 30.8 1217 31.6 1210 32.0 4 1177 32.8 1166 33.2 1168 33.2
403.gcc 4 666 48.4 656 49.2 650 49.6 4 647 49.6 641 50.4 643 50.0
429.mcf 4 602 60.4 605 60.4 602 60.4 2 318 57.4 317 57.6 320 57.0
445.gobmk 4 765 54.8 765 54.8 765 54.8 4 678 62.0 678 62.0 679 62.0
456.hmmer 4 898 41.6 898 41.6 898 41.6 4 636 58.8 636 58.8 636 58.8
458.sjeng 4 928 52.0 929 52.0 928 52.0 4 853 56.8 853 56.8 854 56.8
462.libquantum 4 265 313   266 312   263 315   4 252 329   253 327   255 325
464.h264ref 4 1163 76.0 1164 76.0 1163 76.0 4 1109 79.6 1109 80.0 1109 79.6
471.omnetpp 4 688 36.4 687 36.4 688 36.4 4 627 40.0 627 40.0 628 40.0
473.astar 4 764 36.8 765 36.8 764 36.8 4 714 39.2 714 39.2 713 39.2
483.xalancbmk 4 499 55.2 498 55.2 499 55.2 4 499 55.2 498 55.2 499 55.2

Submit Notes

The config file option 'submit' was used.
The start command with the /affinity switch was used to bind processes to cores

General Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000

C++ benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icl -Qvc9   -Qstd=c99
456.hmmer:  C:/Program Files (x86)/Intel/ComposerXE-2011/bin/intel64/icl.exe   -link -LIBPATH:C:/Program Files (x86)/Intel/ComposerXE-2011/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64
458.sjeng:  C:/Program Files (x86)/Intel/ComposerXE-2011/bin/intel64/icl.exe   -link -LIBPATH:C:/Program Files (x86)/Intel/ComposerXE-2011/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64
462.libquantum:  C:/Program Files (x86)/Intel/ComposerXE-2011/bin/intel64/icl.exe   -Qstd=c99   -link -LIBPATH:C:/Program Files (x86)/Intel/ComposerXE-2011/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64

C++ benchmarks (except as noted below):

 icl -Qvc9
473.astar:  C:/Program Files (x86)/Intel/ComposerXE-2011/bin/intel64/icl.exe   -link -LIBPATH:C:/Program Files (x86)/Intel/ComposerXE-2011/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
456.hmmer:  -DSPEC_CPU_P64
458.sjeng:  -DSPEC_CPU_P64
462.libquantum:  -DSPEC_CPU_P64
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES
473.astar:  -DSPEC_CPU_P64
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
401.bzip2:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   /F512000000
403.gcc:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
429.mcf:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
445.gobmk:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   /F512000000
456.hmmer:  -Qauto-ilp32   -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
458.sjeng:  -Qauto-ilp32   -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   /F512000000
462.libquantum:  -Qauto-ilp32   -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
464.h264ref:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   /F512000000

C++ benchmarks:

471.omnetpp:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
473.astar:  -Qauto-ilp32   -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12-win32-revA.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic12-win32-revA.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 19:17:22 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 12 April 2011.
