CPU2006 license: | 19 | Test date: | Feb-2011 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Feb-2011 |
Tested by: | Fujitsu | Software Availability: | Apr-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5606 |
CPU Characteristics: | |
CPU MHz: | 2133 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC, running at 1067 MHz and CL7) |
Disk Subsystem: | 1 x SATA, 160 GB, 5400 RPM |
Other Hardware: | -- |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default |
Compiler: | Intel C++ and Fortran Intel 64 Compiler XE for applications running on Intel 64 Version 12.0 Update 3 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

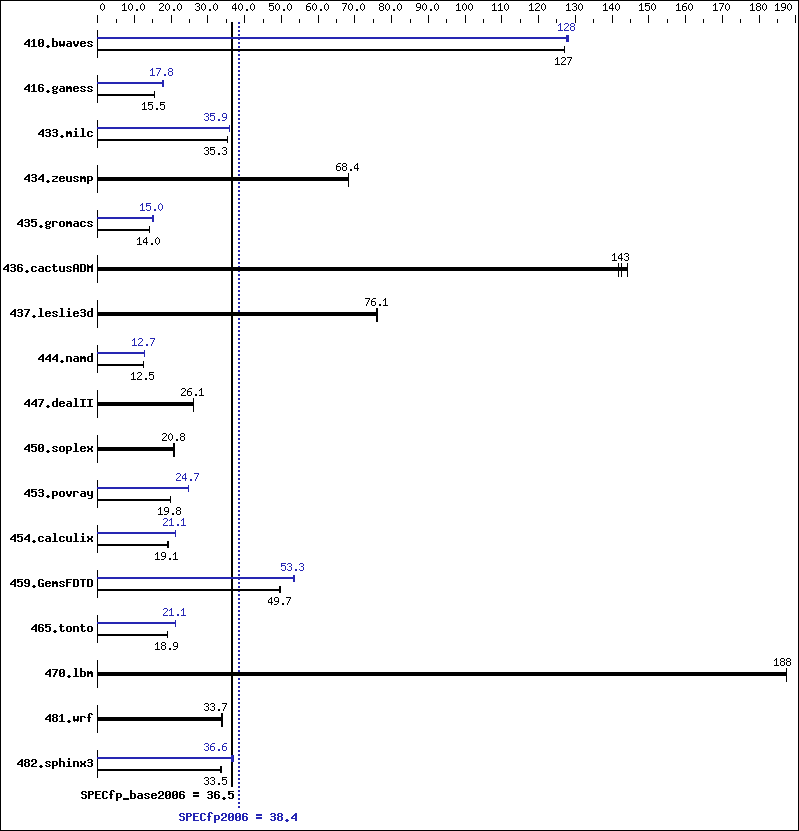

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 107 | 127 | 107 | 127 | 107 | 127 | 106 | 128 | 106 | 128 | 107 | 128 |
416.gamess | 1257 | 15.6 | 1260 | 15.5 | 1261 | 15.5 | 1102 | 17.8 | 1104 | 17.7 | 1100 | 17.8 |
433.milc | 260 | 35.4 | 260 | 35.3 | 260 | 35.3 | 255 | 35.9 | 255 | 35.9 | 255 | 36.0 |
434.zeusmp | 133 | 68.2 | 133 | 68.4 | 133 | 68.4 | 133 | 68.2 | 133 | 68.4 | 133 | 68.4 |
435.gromacs | 509 | 14.0 | 510 | 14.0 | 510 | 14.0 | 476 | 15.0 | 475 | 15.0 | 475 | 15.0 |
436.cactusADM | 82.9 | 144 | 84.3 | 142 | 83.7 | 143 | 82.9 | 144 | 84.3 | 142 | 83.7 | 143 |
437.leslie3d | 124 | 76.1 | 124 | 76.0 | 123 | 76.1 | 124 | 76.1 | 124 | 76.0 | 123 | 76.1 |
444.namd | 645 | 12.4 | 644 | 12.5 | 643 | 12.5 | 634 | 12.7 | 633 | 12.7 | 634 | 12.7 |
447.dealII | 438 | 26.1 | 438 | 26.1 | 438 | 26.1 | 438 | 26.1 | 438 | 26.1 | 438 | 26.1 |
450.soplex | 402 | 20.8 | 402 | 20.7 | 402 | 20.8 | 402 | 20.8 | 402 | 20.7 | 402 | 20.8 |
453.povray | 269 | 19.8 | 268 | 19.8 | 269 | 19.8 | 215 | 24.7 | 215 | 24.7 | 215 | 24.8 |
454.calculix | 430 | 19.2 | 432 | 19.1 | 432 | 19.1 | 392 | 21.1 | 391 | 21.1 | 391 | 21.1 |
459.GemsFDTD | 213 | 49.8 | 214 | 49.7 | 214 | 49.5 | 198 | 53.5 | 199 | 53.3 | 199 | 53.3 |
465.tonto | 520 | 18.9 | 521 | 18.9 | 519 | 19.0 | 465 | 21.2 | 466 | 21.1 | 465 | 21.1 |
470.lbm | 73.3 | 188 | 73.3 | 188 | 73.3 | 188 | 73.3 | 188 | 73.3 | 188 | 73.3 | 188 |
481.wrf | 328 | 34.0 | 333 | 33.6 | 332 | 33.7 | 328 | 34.0 | 333 | 33.6 | 332 | 33.7 |
482.sphinx3 | 579 | 33.7 | 581 | 33.5 | 583 | 33.5 | 529 | 36.8 | 534 | 36.5 | 532 | 36.6 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run Hugepages were not configured on the system
BIOS configuration: Data Reuse Optimization = Disable
OMP_NUM_THREADS set to number of cores For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on RHEL5.5 with binutils-2.17.50.0.6-14.el5
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
Same as Base Portability Flags
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias |
470.lbm: | basepeak = yes |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -ansi-alias -parallel |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | basepeak = yes |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -parallel -static |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias |
436.cactusADM: | basepeak = yes |
454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
481.wrf: | basepeak = yes |
