SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Oracle Corporation

SPARC T3-4

CPU2006 license: 6 Test date: Sep-2010
Test sponsor: Oracle Corporation Hardware Availability: Dec-2010
Tested by: Oracle Corporation Software Availability: Sep-2010

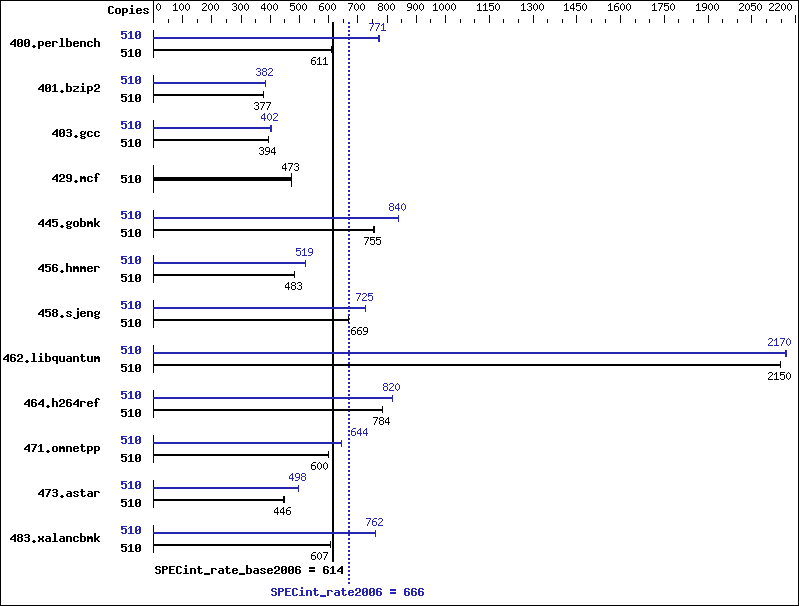

Benchmark results graph
Hardware
CPU Name: SPARC T3
CPU Characteristics:
CPU MHz: 1649
FPU: Integrated
CPU(s) enabled: 64 cores, 4 chips, 16 cores/chip, 8 threads/core
CPU(s) orderable: 1 to 4 chips
Primary Cache: 16 KB I + 8 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 512 GB (64 x 8 GB)
Disk Subsystem: 821 GB (zfs 3 x 2-way mirrors on
6x SAS 300G 10000 RPM)
Other Hardware: None
Software
Operating System: Oracle Solaris 10 9/10
Compiler: Oracle Solaris Studio 12.2
Auto Parallel: No
File System: zfs with gzip compression
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 510 8127 613 8151 611 8156 611 510 6432 775 6465 771 6478 769
401.bzip2 510 13084 376 13063 377 13054 377 510 12853 383 12882 382 12885 382
403.gcc 510 10405 395 10419 394 10418 394 510 10191 403 10204 402 10202 402
429.mcf 510 9840 473 9838 473 9839 473 510 9840 473 9838 473 9839 473
445.gobmk 510 7086 755 7082 755 7084 755 510 6367 840 6367 840 6366 840
456.hmmer 510 9887 481 9847 483 9847 483 510 9162 519 9163 519 9165 519
458.sjeng 510 9218 669 9222 669 9217 670 510 8510 725 8509 725 8513 725
462.libquantum 510 4924 2150 4923 2150 4923 2150 510 4878 2170 4876 2170 4879 2170
464.h264ref 510 14380 785 14388 784 14389 784 510 13766 820 13761 820 13767 820
471.omnetpp 510 5323 599 5315 600 5308 600 510 4952 644 4954 643 4952 644
473.astar 510 8035 446 8002 447 8036 446 510 7199 497 7196 498 7195 498
483.xalancbmk 510 5803 606 5800 607 5788 608 510 4618 762 4635 759 4621 762

Compiler Invocation Notes

 Oracle Solaris Studio 12.2 is distributed with mandatory OS patches
  118683-05  119963-20  120753-08
 Oracle Solaris Studio 12.2 and patches are available at
  http://oracle.com/goto/solarisstudio

Submit Notes

Processes were bound to cores using "submit" and "pbind".  The config
file option 'submit' was used in order to accomplish this.

Operating System Notes


ulimit -s 131072 was used to limit the space
consumed by the stack (and therefore make more
space available to the heap).

 /etc/system parameters
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    lpg_alloc_prefer=1
        Indicates that extra effort should be taken to ensure
        that pages are created in the nearby lgroup (NUMA location).
    tsb_rss_factor=128
        Suggests that the the size of the TSB (Translation
        Storage Buffer) may be increased if it is more than
        25% (128/512) full.  Doing so may reduce TSB traps,
        at the cost of additional kernel memory.
    zfs:zfs_arc_max=0x10000000
    zfs:zfs_arc_min=0x10000000
        Limits the consumption of memory by the zfs file system
        cache to 256 MB.  (The arc_max sets the maximum cache
        size; arc_min sets the minimum.)
    zfs:zfs_prefetch_disable = 1
        Indicates that prefetching is not desired.  This setting
        may be desirable when the file system cache is small.
 USB devices were turned off with ILOM command
    set /SYS/MB/USB component_state=disabled
 The "webconsole" service was turned off using
     svcadm disable webconsole
 The system had 437 GB of swap space.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -g   -fast   -fma=fused   -xipo=2   -xprefetch=no%auto   -xpagesize=4M   -xalias_level=std   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

 -g0   -library=stlport4   -fast   -fma=fused   -xipo=2   -xprefetch=no%auto   -xpagesize=4M   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign

Base Other Flags

C benchmarks:

 -xjobs=64   -V   -#

C++ benchmarks:

 -xjobs=64   -verbose=diags,version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xalias_level=std   -xipo=2   -Xc   -xrestrict   -lfast
401.bzip2:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=strong
403.gcc:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=std   -xprefetch_level=1
429.mcf:  basepeak = yes
445.gobmk:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xalias_level=std   -xrestrict   -xprefetch=no%auto
456.hmmer:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xunroll=14   -xalias_level=std
458.sjeng:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch=no%auto
462.libquantum:  -g   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -xprefetch_level=3   -xalias_level=std
464.h264ref:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std

C++ benchmarks:

471.omnetpp:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xipo=2   -xprefetch=no%auto   -xpagesize=4M   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign
473.astar:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xdepend   -xalias_level=compatible   -xipo=2   -xprefetch=no%auto   -lfast
483.xalancbmk:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=2   -xprefetch=no%auto   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=64   -V   -#

C++ benchmarks:

 -xjobs=64   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.20110110.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.20110110.xml.
