SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro

Supermicro A+ Server AS-1012G-MTF,
AMD Opteron 6174

SPECfp®2006 = 28.8

CPU2006 license: 001176 Test date: Dec-2010
Test sponsor: Supermicro Hardware Availability: Mar-2010
Tested by: Supermicro Software Availability: May-2010

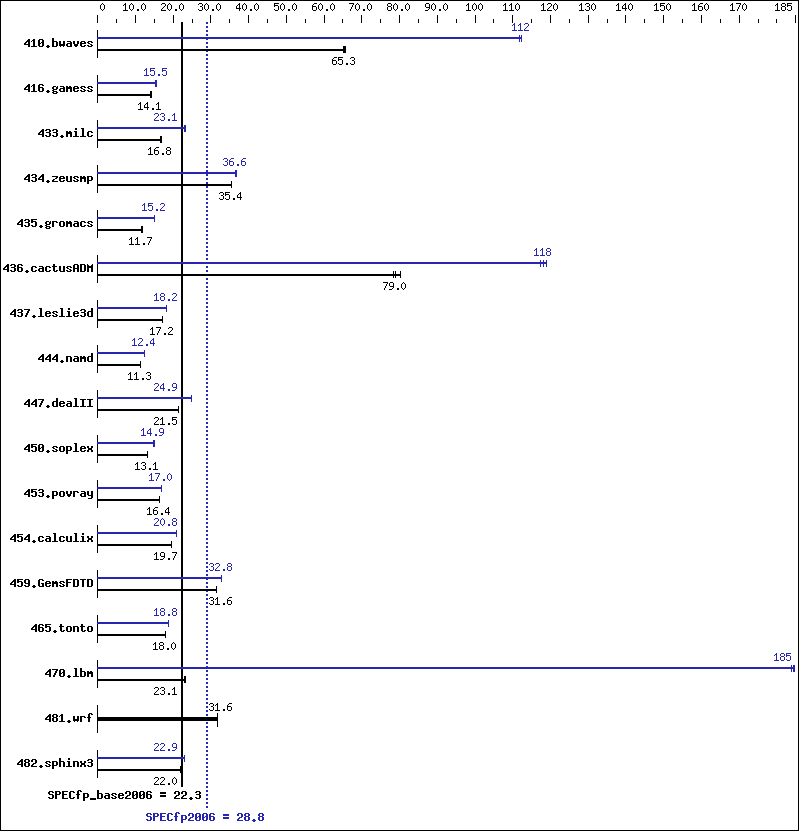

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6174
CPU Characteristics:
CPU MHz: 2200
FPU: Integrated
CPU(s) enabled: 12 cores, 1 chip, 12 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory: 32 GB (8 x 4 GB 2Rx8 PC3-10600R-9, ECC)
Disk Subsystem: 1 x 500 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.5,
Kernel 2.6.18-194.el5
Compiler: x86 Open64 4.2.3.2 Compiler Suite (from AMD)
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 209 65.2 208 65.3 207 65.6 122   112   121   112   121   112
416.gamess 1390 14.1 1388 14.1 1387 14.1 1270   15.4 1267   15.5 1263   15.5
433.milc 548 16.8 546 16.8 549 16.7 399   23.0 398   23.1 397   23.1
434.zeusmp 257 35.4 257 35.4 257 35.4 248   36.7 249   36.6 249   36.6
435.gromacs 609 11.7 609 11.7 608 11.7 472   15.1 471   15.2 471   15.2
436.cactusADM 152 78.5 149 80.1 151 79.0 100   119   101   118   102   117
437.leslie3d 545 17.3 546 17.2 549 17.1 517   18.2 517   18.2 514   18.3
444.namd 709 11.3 710 11.3 709 11.3 646   12.4 645   12.4 646   12.4
447.dealII 532 21.5 532 21.5 532 21.5 460   24.9 460   24.9 461   24.8
450.soplex 637 13.1 639 13.1 638 13.1 560   14.9 558   14.9 560   14.9
453.povray 323 16.5 325 16.4 325 16.4 313   17.0 313   17.0 315   16.9
454.calculix 420 19.7 419 19.7 420 19.7 397   20.8 395   20.9 396   20.8
459.GemsFDTD 336 31.5 336 31.6 336 31.6 324   32.8 324   32.8 324   32.8
465.tonto 547 18.0 547 18.0 547 18.0 524   18.8 524   18.8 523   18.8
470.lbm 593 23.2 594 23.1 597 23.0 74.7 184   74.5 185   74.4 185
481.wrf 352 31.7 353 31.6 353 31.6 352   31.7 353   31.6 353   31.6
482.sphinx3 882 22.1 885 22.0 884 22.0 851   22.9 850   22.9 850   22.9

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152' was used to set environment locked pages in memory limit

Set vm/nr_hugepages=2000 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

cpuspeed stop was used to set the CPU frequency to its maximum.

Platform Notes

 Fan speed set to Full Speed in BIOS Setup.
 The system uses a Supermicro H8SGL-F motherboard.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/usr/cpu2006/amd1002-speed-libs-revA/64:/usr/cpu2006/amd1002-speed-libs-revA/32"
O64_OMP_AFFINITY_MAP = "0,1,2,3,4,5,6,7,8,9,10,11"
O64_OMP_SPIN_USER_LOCK = "true"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -march=barcelona   -Ofast   -HP:bdt=2m:heap=2m

C++ benchmarks:

 -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m

Fortran benchmarks:

 -march=barcelona   -Ofast   -apo   -LNO:parallel_overhead=10000   -LNO:fusion_peeling_limit=0   -HP:bdt=2m:heap=2m

Benchmarks using both Fortran and C:

 -march=barcelona   -Ofast   -HP:bdt=2m:heap=2m   -apo   -LNO:parallel_overhead=10000   -LNO:fusion_peeling_limit=0

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -march=barcelona   -Ofast   -apo   -CG:movnti=1   -CG:local_sched_alg=1   -CG:locs_shallow_depth=1   -CG:compute_to=on   -HP:bdt=2m:heap=2m   -LNO:prefetch=3
470.lbm:  -march=barcelona   -Ofast   -mso   -apo   -CG:sse_cse_regs=0   -LNO:prefetch_ahead=4   -CG:locs_shallow_depth=1   -CG:cmp_peep=on   -CG:compute_to=on   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -OPT:alias=restricted   -m3dnow   -IPA:inline=off
482.sphinx3:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:malloc_alg=2   -CG:sse_cse_regs=0   -CG:locs_shallow_depth=1   -CG:cmp_peep=on   -CG:local_sched_alg=1   -INLINE:aggressive=on

C++ benchmarks:

444.namd:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:ignore_feedback=off   -CG:local_sched_alg=2   -CG:load_exe=0   -CG:compute_to=on   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -LNO:opt=0   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -TENV:frame_pointer=off
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -INLINE:aggressive=on   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -CG:load_exe=0   -fno-exceptions   -m32   -HP:bdt=2m:heap=2m
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m

Fortran benchmarks:

410.bwaves:  -march=barcelona   -Ofast   -apo   -OPT:malloc_alg=2   -CG:use_prefetchnta=on   -CG:cmp_peep=on   -LNO:blocking=off   -LNO:prefetch=3   -LNO:prefetch_ahead=5   -LNO:ignore_feedback=off   -LNO:apo_use_feedback=on   -WOPT:aggstr=0
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:fu=6   -LNO:blocking=0   -LNO:prefetch=0   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -HP:bdt=2m:heap=2m
434.zeusmp:  -march=barcelona   -Ofast   -apo   -LNO:blocking=off   -LNO:interchange=off   -LNO:fusion_peeling_limit=0   -OPT:treeheight=on   -OPT:unroll_size=256   -CG:cmp_peep=on   -CG:compute_to=on   -GRA:prioritize_by_density=on   -HP:bdt=2m:heap=2m
437.leslie3d:  -march=barcelona   -Ofast   -apo   -OPT:unroll_size=256   -LNO:prefetch_ahead=4   -LNO:parallel_overhead=32768   -GRA:prioritize_by_density=on   -m3dnow   -HP:bdt=2m:heap=2m
459.GemsFDTD:  -march=barcelona   -Ofast   -apo   -LNO:fission=2   -LNO:prefetch_ahead=1   -CG:load_exe=0   -CG:local_sched_alg=1   -HP
465.tonto:  -march=barcelona   -Ofast   -apo   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -HP

Benchmarks using both Fortran and C:

435.gromacs:  -march=barcelona   -Ofast   -apo   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m
436.cactusADM:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -apo   -LANG:heap_allocation_threshold=1000   -LNO:prefetch_ahead=1   -HP:bdt=2m:heap=2m
454.calculix:  -march=barcelona   -Ofast   -LNO:prefetch_ahead=30   -CG:load_exe=0   -CG:ptr_load_use=0   -CG:local_sched_alg=2   -CG:compute_to=on   -WOPT:unroll=2   -GRA:optimize_boundary=on   -HP:bdt=2m:heap=2m   -apo
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.html,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.20101207.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.xml,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.20101207.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 16:57:05 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 18 January 2011.
