SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Oracle Corporation

SPARC T3-1

CPU2006 license: 6 Test date: Aug-2010
Test sponsor: Oracle Corporation Hardware Availability: Oct-2010
Tested by: Oracle Corporation Software Availability: Sep-2010

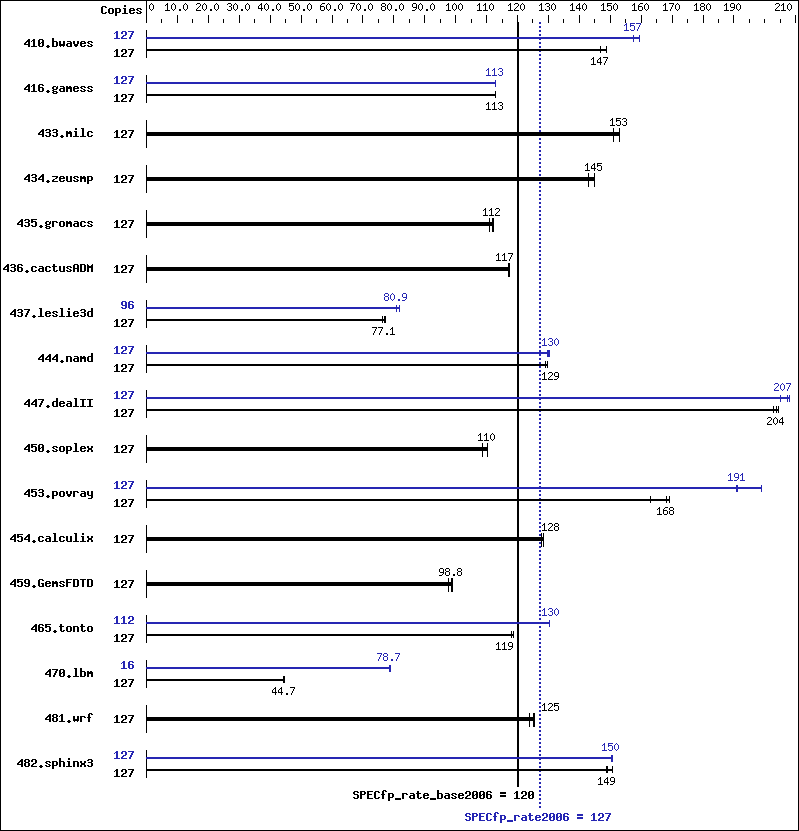

Benchmark results graph
Hardware
CPU Name: SPARC T3
CPU Characteristics:
CPU MHz: 1649
FPU: Integrated
CPU(s) enabled: 16 cores, 1 chip, 16 cores/chip, 8 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 16 KB I + 8 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 128 GB (16 x 8 GB)
Disk Subsystem: 750 GB (zfs 3 x 2-way mirrors on
6x SAS 300G 10000 RPM)
Other Hardware: None
Software
Operating System: Oracle Solaris 10 9/10
Compiler: Oracle Solaris Studio 12.2
Auto Parallel: No
File System: zfs with gzip compression
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 127 11601 149   11748 147   11753 147   127 10823 159   10964 157   10967 157
416.gamess 127 22034 113   22052 113   22055 113   127 22012 113   22030 113   22033 113
433.milc 127 7621 153   7715 151   7624 153   127 7621 153   7715 151   7624 153
434.zeusmp 127 7970 145   8088 143   7981 145   127 7970 145   8088 143   7981 145
435.gromacs 127 8171 111   8109 112   8089 112   127 8171 111   8109 112   8089 112
436.cactusADM 127 12943 117   12961 117   12950 117   127 12943 117   12961 117   12950 117
437.leslie3d 127 15494 77.1 15664 76.2 15464 77.2 96 11027 81.8 11157 80.9 11153 80.9
444.namd 127 7853 130   7887 129   7893 129   127 7849 130   7820 130   7841 130
447.dealII 127 7109 204   7169 203   7129 204   127 7002 207   7085 205   6987 208
450.soplex 127 9617 110   9743 109   9611 110   127 9617 110   9743 109   9611 110
453.povray 127 4143 163   4020 168   3996 169   127 3538 191   3537 191   3398 199
454.calculix 127 8160 128   8203 128   8155 128   127 8160 128   8203 128   8155 128
459.GemsFDTD 127 13636 98.8 13806 97.6 13643 98.8 127 13636 98.8 13806 97.6 13643 98.8
465.tonto 127 10517 119   10576 118   10523 119   112 8454 130   8461 130   8459 130
470.lbm 127 39067 44.7 39302 44.4 39073 44.7 16 2793 78.7 2800 78.5 2791 78.8
481.wrf 127 11300 126   11444 124   11331 125   127 11300 126   11444 124   11331 125
482.sphinx3 127 16628 149   16591 149   16435 151   127 16470 150   16450 150   16437 151

Submit Notes

Processes were bound to cores using "submit" and "pbind".  The config
file option 'submit' was used in order to accomplish this.

Operating System Notes


ulimit -s 131072 was used to limit the space
consumed by the stack (and therefore make more
space available to the heap).

 /etc/system parameters
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    lpg_alloc_prefer=1
       Indicates that extra effort should be taken to ensure
       that pages are created in the nearby lgroup (NUMA location).
    tsb_rss_factor=128
       Suggests that the the size of the TSB (Translation
       Storage Buffer) may be increased if it is more than
       25% (128/512) full.  Doing so may reduce TSB traps,
       at the cost of additional kernel memory.
    zfs:zfs_arc_max=0x10000000
    zfs:zfs_arc_min=0x10000000
       Limits the consumption of memory by the zfs file system
       cache to 256 MB.  (The arc_max sets the maximum cache
       size; arc_min sets the minimum.)
    zfs:zfs_prefetch_disable = 1
       Indicates that prefetching is not desired.  This setting
       may be desirable when the file system cache is small.
 USB devices were turned off with ILOM command
    set /SYS/MB/USB component_state=disabled
 The "webconsole" service was turned off using
    svcadm disable webconsole
 The system had 296 GB of swap space.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -g   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

 -g0   -library=stlport4   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign

Fortran benchmarks:

 -g   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -M /usr/lib/ld/map.bssalign

Benchmarks using both Fortran and C:

 -g   -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -M /usr/lib/ld/map.bssalign

Base Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Fortran benchmarks:

 -xjobs=32   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=32   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xprefetch_level=3   -xipo=2   -xrestrict
482.sphinx3:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xinline=   -xprefetch_level=2   -Wc,-Qlp-ol=1   -xrestrict   -xalias_level=strong   -fsimple=1   -xlinkopt=2   -lfast

C++ benchmarks:

444.namd:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xprefetch_level=1   -xlinkopt=2
447.dealII:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=2   -xrestrict
450.soplex:  basepeak = yes
453.povray:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=2   -xrestrict   -xlinkopt=2

Fortran benchmarks:

410.bwaves:  -g   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=3   -M /usr/lib/ld/map.bssalign
416.gamess:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xlinkopt=2
434.zeusmp:  basepeak = yes
437.leslie3d:  -g   -fast   -fma=fused   -xpagesize_heap=4M   -xpagesize_stack=64K   -M /usr/lib/ld/map.bssalign   -xprefetch_level=3   -xprefetch=latx:1.6   -qoption cg -Qlp=1   -qoption cg -Qlp-fa=0   -qoption cg -Qlp-fl=1   -qoption cg -Qlp-av=448   -qoption cg -Qlp-t=4
459.GemsFDTD:  basepeak = yes
465.tonto:  -g   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Fortran benchmarks:

 -xjobs=32   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=32   -V   -#   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.20110110.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.20110110.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 16:29:50 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 7 January 2011.
