| CPU2006 license: | 6 | Test date: | Sep-2010 |
|---|---|---|---|
| Test sponsor: | Oracle Corporation | Hardware Availability: | Jun-2010 |
| Tested by: | Oracle Corporation | Software Availability: | Apr-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon L5640 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2267 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 or 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Oracle Enterprise Linux Server release 5.5 kernel 2.6.18-194.el5 |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

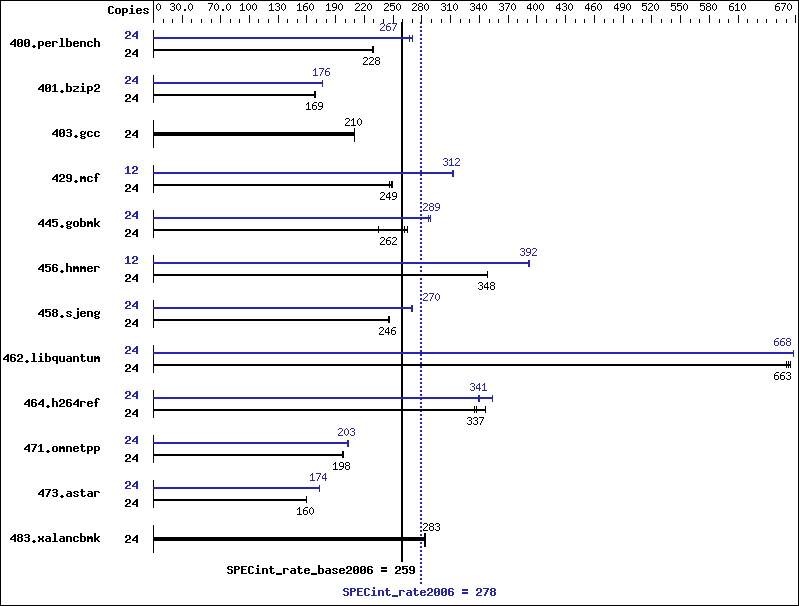

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 1024 | 229 | 1029 | 228 | 1027 | 228 | 24 | 867 | 271 | 877 | 267 | 878 | 267 |
| 401.bzip2 | 24 | 1373 | 169 | 1381 | 168 | 1373 | 169 | 24 | 1313 | 176 | 1312 | 177 | 1312 | 176 |
| 403.gcc | 24 | 922 | 210 | 920 | 210 | 921 | 210 | 24 | 922 | 210 | 920 | 210 | 921 | 210 |
| 429.mcf | 24 | 888 | 247 | 880 | 249 | 879 | 249 | 12 | 351 | 312 | 351 | 311 | 350 | 312 |
| 445.gobmk | 24 | 950 | 265 | 960 | 262 | 1073 | 235 | 24 | 872 | 289 | 871 | 289 | 878 | 287 |
| 456.hmmer | 24 | 642 | 349 | 643 | 348 | 643 | 348 | 12 | 285 | 392 | 285 | 392 | 286 | 391 |
| 458.sjeng | 24 | 1182 | 246 | 1185 | 245 | 1183 | 246 | 24 | 1077 | 270 | 1078 | 269 | 1075 | 270 |
| 462.libquantum | 24 | 750 | 663 | 753 | 660 | 748 | 664 | 24 | 745 | 667 | 745 | 668 | 745 | 668 |
| 464.h264ref | 24 | 1587 | 335 | 1533 | 346 | 1576 | 337 | 24 | 1503 | 353 | 1568 | 339 | 1560 | 341 |
| 471.omnetpp | 24 | 760 | 197 | 758 | 198 | 759 | 198 | 24 | 739 | 203 | 739 | 203 | 740 | 203 |
| 473.astar | 24 | 1056 | 160 | 1057 | 159 | 1055 | 160 | 24 | 970 | 174 | 971 | 174 | 972 | 173 |
| 483.xalancbmk | 24 | 584 | 283 | 585 | 283 | 584 | 284 | 24 | 584 | 283 | 585 | 283 | 584 | 284 |
Submit Notes
The config file option 'submit' was used to invoke the command numactl to bind copies to the cores. (For details, please see the config file.)
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
Load Default BIOS Settings and then change the following C-State Disabled Data Reuse Optimization Disabled Hardware Prefetch Enabled Adjacent Cache Line Prefetch Enabled L1 Data Prefetch Enabled
General Notes
This result is measured on a Sun Fire X4170 M2 server. The Sun Fire X4170 M2 and the Sun Fire X4270 M2 are electronically equivalent.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L(path to library) -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L(path to library) -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L(path to library) -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
