SPEC® CFP2006 Result

IBM Corporation

IBM System x3755 M3 (AMD Opteron 6124 HE)

SPECfp®_rate2006 = 428

SPECfp_rate_base2006 = 385

CPU2006 license:	11	Test date:	Oct-2010
Test sponsor:	IBM Corporation	Hardware Availability:	Sep-2010
Tested by:	IBM Corporation	Software Availability:	Jul-2010

Hardware
CPU Name:	AMD Opteron 6124 HE
CPU Characteristics:
CPU MHz:	1800
FPU:	Integrated
CPU(s) enabled:	32 cores, 4 chips, 8 cores/chip
CPU(s) orderable:	2,4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	12 MB I+D on chip per chip, 6 MB shared / 4 cores
Other Cache:	None
Memory:	128 GB (32 x 4 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem:	1 x 250 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.5, Kernel 2.6.18-194.el5
Compiler:	x86 Open64 4.2.4 Compiler Suite (from AMD)
Auto Parallel:	Yes
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

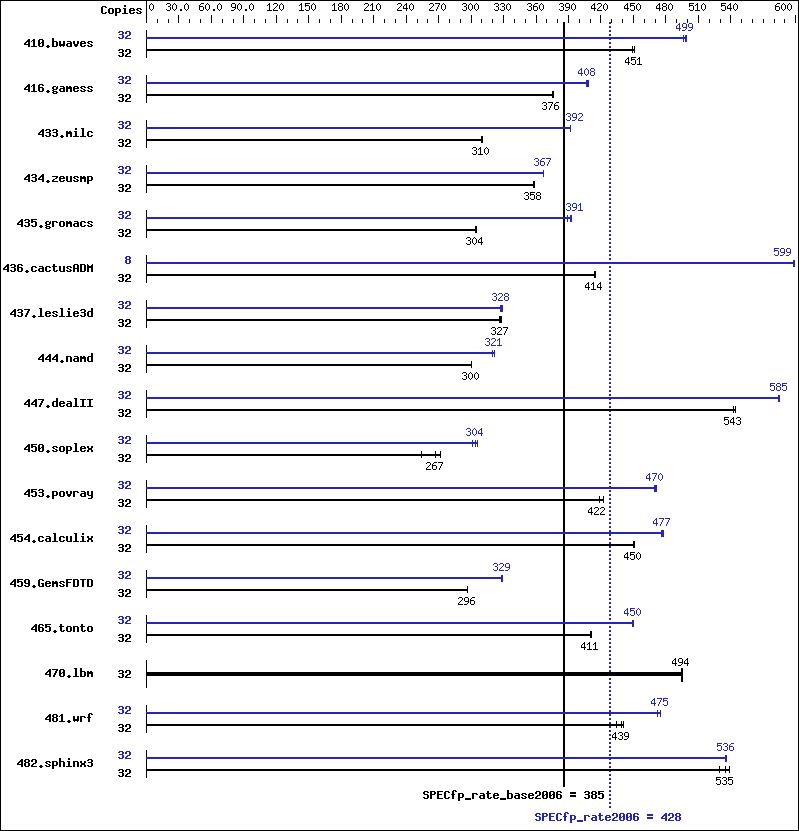

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	32	969	449	964	451	965	451	32	877	496	871	499	872	499
416.gamess	32	1666	376	1671	375	1665	376	32	1536	408	1535	408	1542	406
433.milc	32	948	310	947	310	949	309	32	749	392	750	392	750	392
434.zeusmp	32	813	358	814	358	814	358	32	794	367	795	366	793	367
435.gromacs	32	751	304	750	305	751	304	32	588	389	584	391	582	393
436.cactusADM	32	924	414	921	415	924	414	8	160	598	160	599	160	599
437.leslie3d	32	920	327	922	326	918	328	32	916	328	919	327	915	329
444.namd	32	855	300	856	300	855	300	32	802	320	798	322	799	321
447.dealII	32	675	543	675	542	673	544	32	625	585	625	585	626	584
450.soplex	32	1048	255	998	267	982	272	32	885	302	878	304	873	306
453.povray	32	407	419	403	423	403	422	32	362	470	361	472	362	470
454.calculix	32	586	450	587	450	586	451	32	554	477	553	478	554	476
459.GemsFDTD	32	1146	296	1146	296	1145	297	32	1036	328	1033	329	1032	329
465.tonto	32	767	410	767	411	766	411	32	700	450	702	449	699	450
470.lbm	32	890	494	890	494	888	495	32	890	494	890	494	888	495
481.wrf	32	823	434	811	441	814	439	32	752	475	753	475	758	472
482.sphinx3	32	1177	530	1165	535	1157	539	32	1164	536	1164	536	1165	535

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=28672 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/root/speccpu_rate_revC-3/amd1002mc-rate-libs-revC/64:/root/speccpu_rate_revC-3/amd1002mc-rate-libs-revC/32"
OMP_NUM_THREADS = "4"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-march=barcelona -mso -Ofast -CG:movnti=1 -CG:local_sched_alg=1 -CG:locs_shallow_depth=1 -HP:bdt=2m:heap=2m -LNO:prefetch=3
470.lbm:	basepeak = yes
482.sphinx3:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=2 -CG:sse_cse_regs=0 -CG:locs_shallow_depth=1 -CG:cmp_peep=on -CG:local_sched_alg=1 -INLINE:aggressive=on

C++ benchmarks:

444.namd:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:ignore_feedback=off -CG:local_sched_alg=2 -CG:load_exe=0 -CG:compute_to=on -OPT:unroll_size=256 -fno-exceptions -HP:bdt=2m:heap=2m
447.dealII:	-march=barcelona -mso -Ofast -static -INLINE:aggressive=on -LNO:opt=0 -fno-emit-exceptions -m32 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -HP:bdt=2m:heap=2m -GRA:unspill=on -CG:cmp_peep=on -TENV:frame_pointer=off
450.soplex:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -INLINE:aggressive=on -OPT:IEEE_arith=3 -OPT:IEEE_NaN_Inf=off -OPT:fold_unsigned_relops=on -OPT:malloc_alg=1 -CG:load_exe=0 -fno-exceptions -m32 -HP:bdt=2m
453.povray:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -INLINE:aggressive=on

Fortran benchmarks:

410.bwaves:	-march=barcelona -mso -O3 -OPT:Ofast -OPT:treeheight=on -LNO:blocking=off -LNO:prefetch_ahead=5 -LNO:ignore_feedback=off -WOPT:aggstr=0 -HP:bdt=2m:heap=2m -CG:cmp_peep=on
416.gamess:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:fu=6 -LNO:blocking=0 -LNO:prefetch=0 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 -HP:bdt=2m:heap=2m
434.zeusmp:	-march=barcelona -mso -Ofast -LNO:blocking=off -LNO:interchange=off -OPT:treeheight=on -OPT:unroll_size=256 -CG:cmp_peep=on -GRA:prioritize_by_density=on -HP
437.leslie3d:	-march=barcelona -mso -Ofast -HP:bdt=2m:heap=2m
459.GemsFDTD:	-march=barcelona -mso -Ofast -LNO:fission=2 -LNO:prefetch_ahead=1 -CG:load_exe=0 -CG:local_sched_alg=1 -HP
465.tonto:	-march=barcelona -mso -Ofast -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 -HP

Benchmarks using both Fortran and C:

435.gromacs:	-march=barcelona -mso -Ofast -OPT:rsqrt=2 -HP:bdt=2m:heap=2m
436.cactusADM:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -apo -LNO:prefetch_ahead=1 -HP:bdt=2m:heap=2m -LANG:heap_allocation_threshold=100
454.calculix:	-march=barcelona -mso -Ofast -CG:load_exe=0 -CG:ptr_load_use=0 -CG:local_sched_alg=2 -CG:compute_to=on -LNO:prefetch_ahead=30 -WOPT:unroll=2 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m
481.wrf:	-march=barcelona -mso -Ofast -LNO:blocking=off -LNO:prefetch_ahead=10 -LANG:copyinout=off -IPA:callee_limit=5000 -GRA:prioritize_by_density=on -m3dnow -HP

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20101109.html,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20101109.xml,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.xml.
