CPU2006 license: | 55 | Test date: | Sep-2010 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Aug-2010 |
Tested by: | Dell Inc. | Software Availability: | Jul-2010 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6164 HE |
CPU Characteristics: | |
CPU MHz: | 1700 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip, 6 MB shared / 6 cores |
Other Cache: | None |
Memory: | 64 GB (16 x 4 GB DDR3-1333 DR RDIMM, CL9, ECC) |
Disk Subsystem: | 1 x 146 GB SAS 10000 RPM SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
Compiler: | x86 Open64 4.2.4 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap 8.1 32-bit Library for Linux |

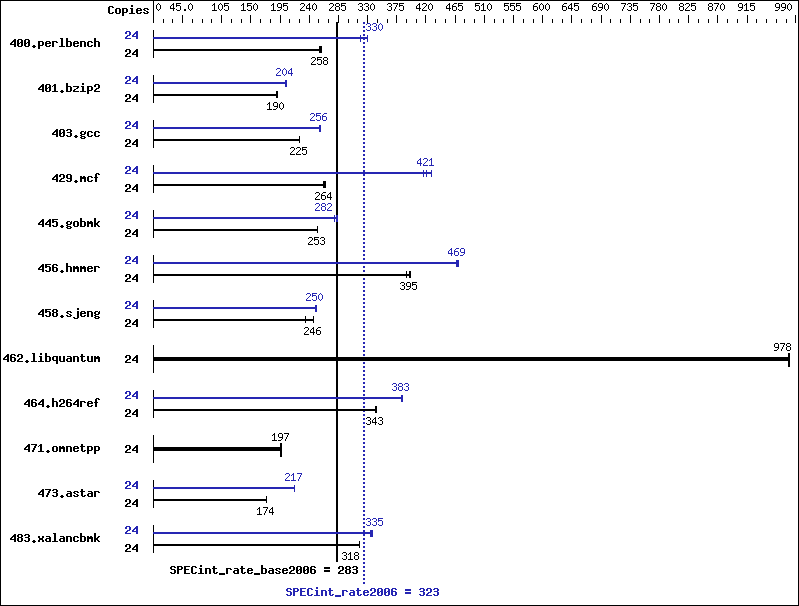

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 24 | 910 | 258 | 915 | 256 | 904 | 259 | 24 | 734 | 319 | 712 | 330 | 711 | 330 |
401.bzip2 | 24 | 1214 | 191 | 1227 | 189 | 1217 | 190 | 24 | 1141 | 203 | 1133 | 204 | 1136 | 204 |
403.gcc | 24 | 857 | 225 | 857 | 226 | 858 | 225 | 24 | 754 | 256 | 752 | 257 | 753 | 256 |
429.mcf | 24 | 834 | 262 | 830 | 264 | 828 | 264 | 24 | 520 | 421 | 527 | 416 | 512 | 428 |
445.gobmk | 24 | 996 | 253 | 997 | 253 | 995 | 253 | 24 | 902 | 279 | 891 | 282 | 890 | 283 |
456.hmmer | 24 | 567 | 395 | 573 | 391 | 564 | 397 | 24 | 479 | 467 | 478 | 469 | 477 | 470 |
458.sjeng | 24 | 1176 | 247 | 1237 | 235 | 1179 | 246 | 24 | 1158 | 251 | 1160 | 250 | 1162 | 250 |
462.libquantum | 24 | 508 | 978 | 508 | 978 | 507 | 981 | 24 | 508 | 978 | 508 | 978 | 507 | 981 |
464.h264ref | 24 | 1544 | 344 | 1551 | 343 | 1551 | 342 | 24 | 1385 | 383 | 1391 | 382 | 1388 | 383 |
471.omnetpp | 24 | 766 | 196 | 762 | 197 | 762 | 197 | 24 | 766 | 196 | 762 | 197 | 762 | 197 |
473.astar | 24 | 966 | 174 | 969 | 174 | 964 | 175 | 24 | 774 | 218 | 777 | 217 | 776 | 217 |
483.xalancbmk | 24 | 520 | 318 | 522 | 317 | 520 | 318 | 24 | 495 | 334 | 494 | 335 | 491 | 337 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set vm/nr_hugepages=10800 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "450" LD_LIBRARY_PATH = "/cpu2006/amd1002-rate-libs-revC/64:/cpu2006/amd1002-rate-libs-revC/32" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64 Binaries were compiled on SLES10 SP2 with binutils 2.18
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-march=barcelona -mso -Ofast -CG:local_sched_alg=1 -INLINE:aggressive=on -IPA:plimit=8000 -IPA:small_pu=100 -HP:bdt=2m:heap=2m |
-march=barcelona -mso -Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
